Publication 1784-UM003A-EN-P – June 2003

110 Naming & Configuring Your Motion Axis

Per

The units used to measure the cycles.

Interpolation Factor

This field displays a fixed, read-only value for each feedback type. This value is
used to compute the resolution of the feedback device.

Aux Feedback Tab -

AXIS_SERVO_DRIVE

The Auxiliary Feedback Tab is enabled only if the Drive tab’s Loop
Configuration field is set to Aux Feedback Only, Aux Position Servo, Dual
Position Servo, Dual Command Servo, or Aux Dual Command Servo.

Use this tab to configure motor and auxiliary feedback device (if any)
parameters, for an axis of the type AXIS_SERVO_DRIVE.

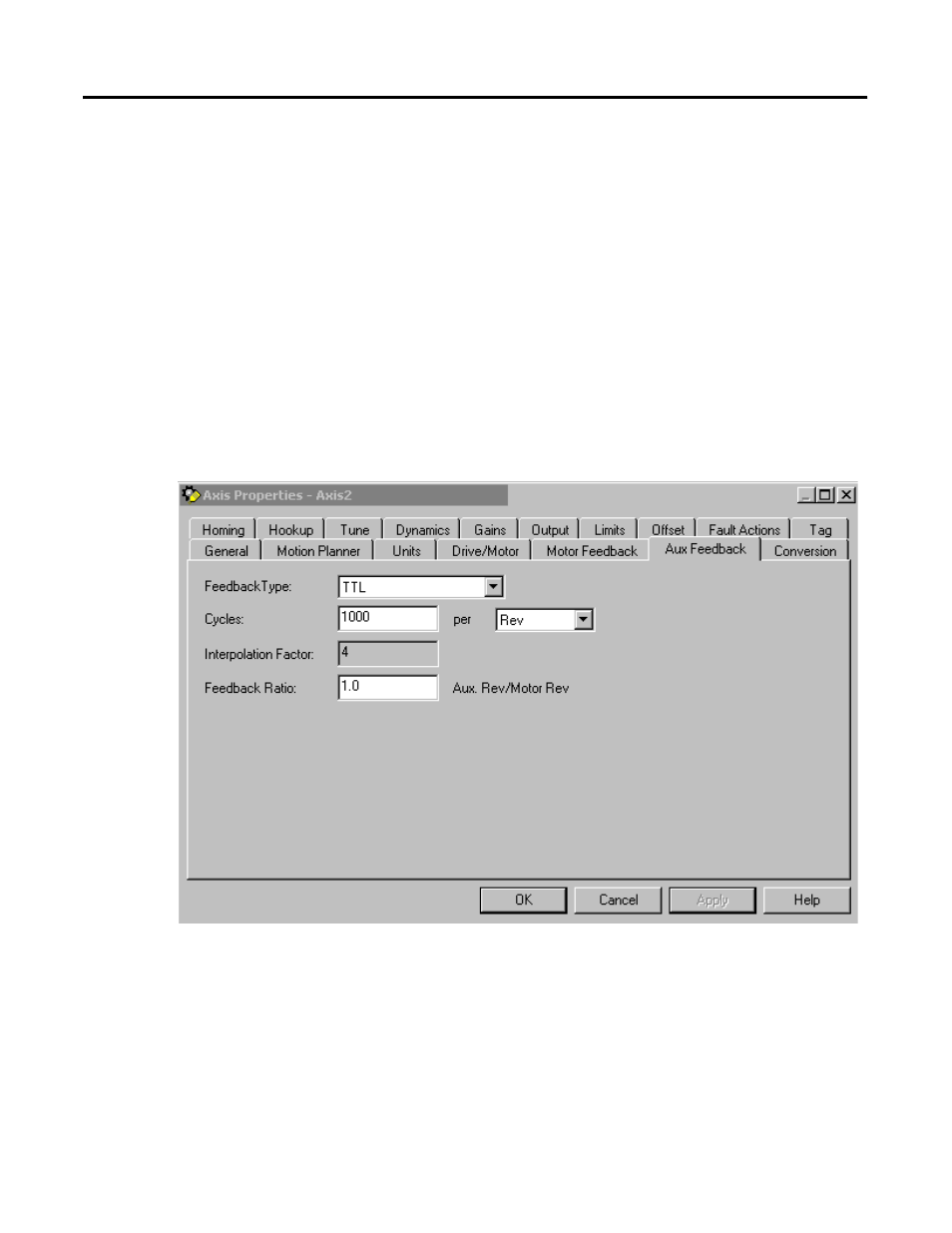

Figure 6.16 Axis Properties - Aux Feedback Tab for Axis_Servo_Drive

Feedback Type

For applications that use auxiliary feedback devices, select the type of auxiliary
feedback device type. These are drive dependent.
