Advanced Button
The Advanced Button displays configuration parameters for retaining test
edits when switched to a secondary system and lets you set the percentage of
memory that is reserved for the data table.

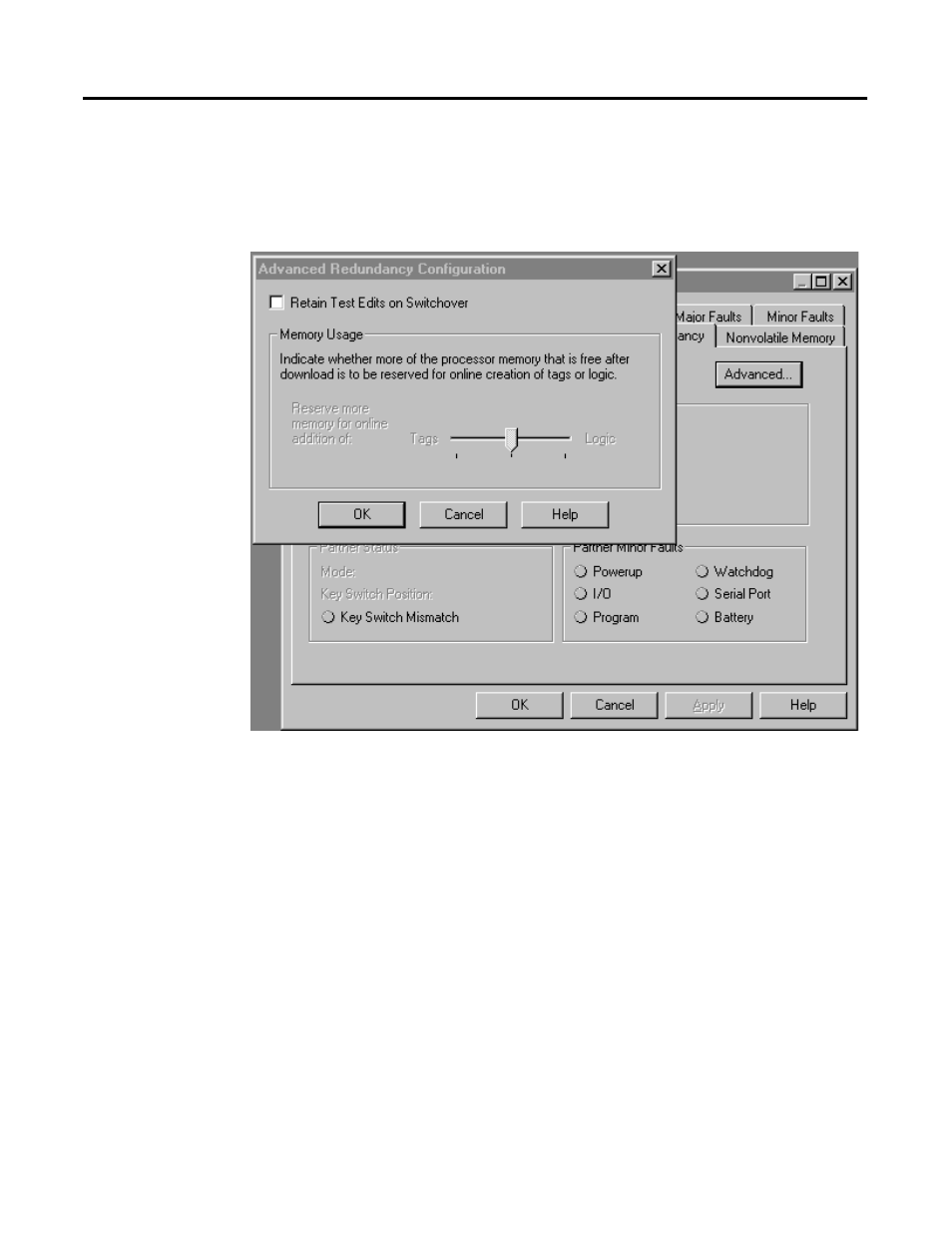

Figure 2.15 Advanced Button from Redundancy Tab
Retain Test Edits on Switchover
Select the checkbox to allow temporary execution of online edits to be
maintained or canceled when a switchover to a secondary system occurs.
When enabled, this option prevents the Logix controller from automatically
switching back to the unedited version of your program if the primary chassis
fails while testing on-line edits.
Memory Usage
Lets you modify the percentage of memory that is to be reserved in the data
table area. This lets you create tags in RUN mode on a synchronized primary
system.
Nonvolatile Memory Tab
The Nonvolatile Memory tab of the Controller Properties dialog serves as the
starting point from which you can perform nonvolatile memory operations.
