Publication 1784-UM003A-EN-P – June 2003

192 Configuring a 1394x-SJTxx-D Digital Servo Drive

3. You can also right click on a selected 1784-PM16SE module and select

New Module from the pop up menu.

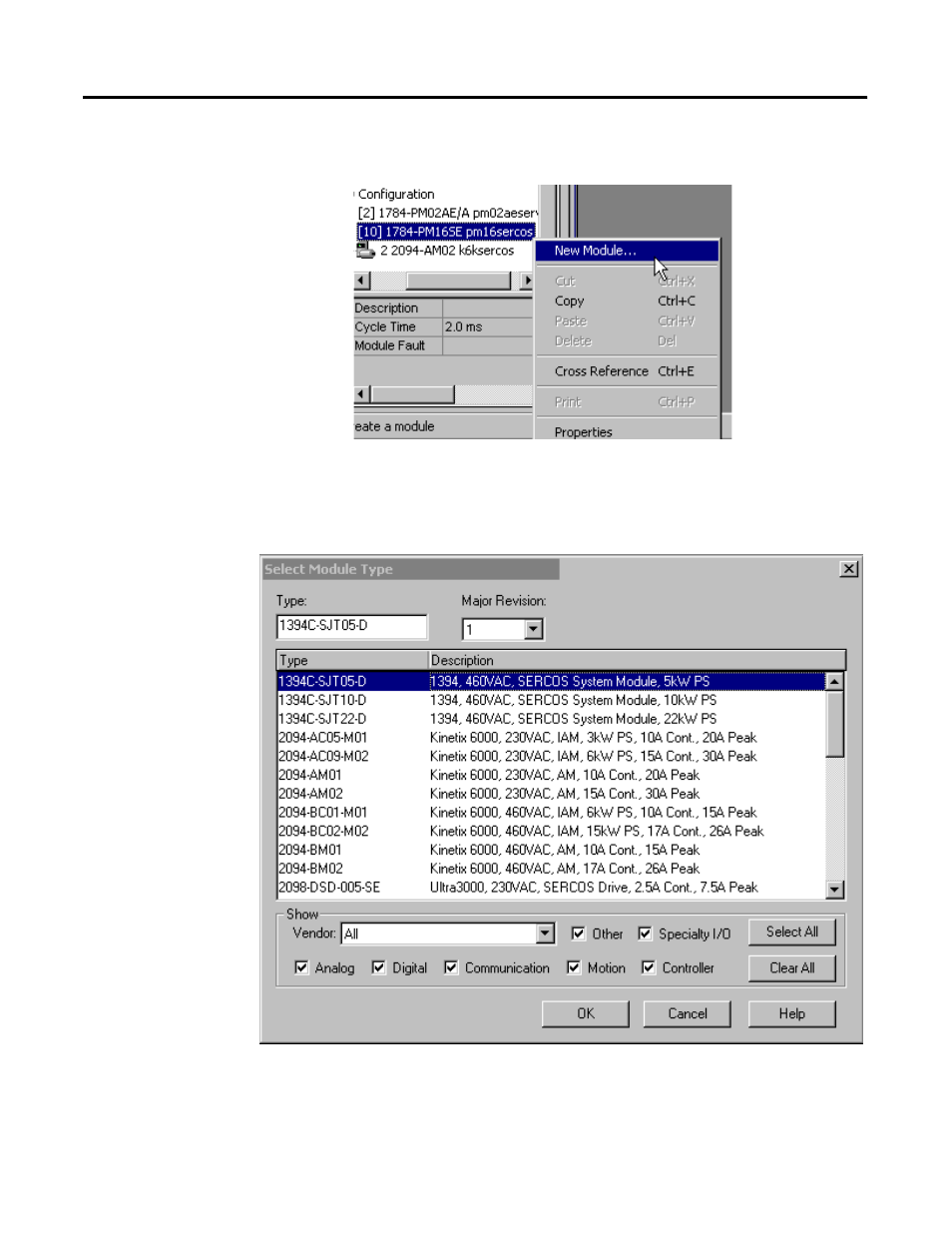

Figure 8.2 Right Click on 1784-PM16SE

4. In the Select Module Type dialog, select the desired 1394x-SJTxx-D

drive module.

Figure 8.3 Select Module Type Screen

5. Press the OK button to close the Select Module Type dialog. The

Module Properties wizard opens.
