Module Fault
Displays the fault code returned from the controller (related to the module you
are configuring) and the text detailing the Module Fault that has occurred.
The following are common categories for errors:
• Connection Request Error - The controller is attempting to make a
connection to the module and has received an error. The connection
was not made.
• Service Request Error - The controller is attempting to request a
service from the module and has received an error. The service was not
performed successfully.
• Module Configuration Invalid - The configuration in the module is
invalid. (This error is commonly caused by the Electronic Key Passed
fault).
• Electronic Keying Mismatch - Electronic Keying is enabled and some
part of the keying information differs between the.
Associated Axes Tab Use this tab to configure the selected 1394x-SJTxx-D drive module by
associating up to four AXIS_SERVO_DRIVE axis tags with configured axis
modules.

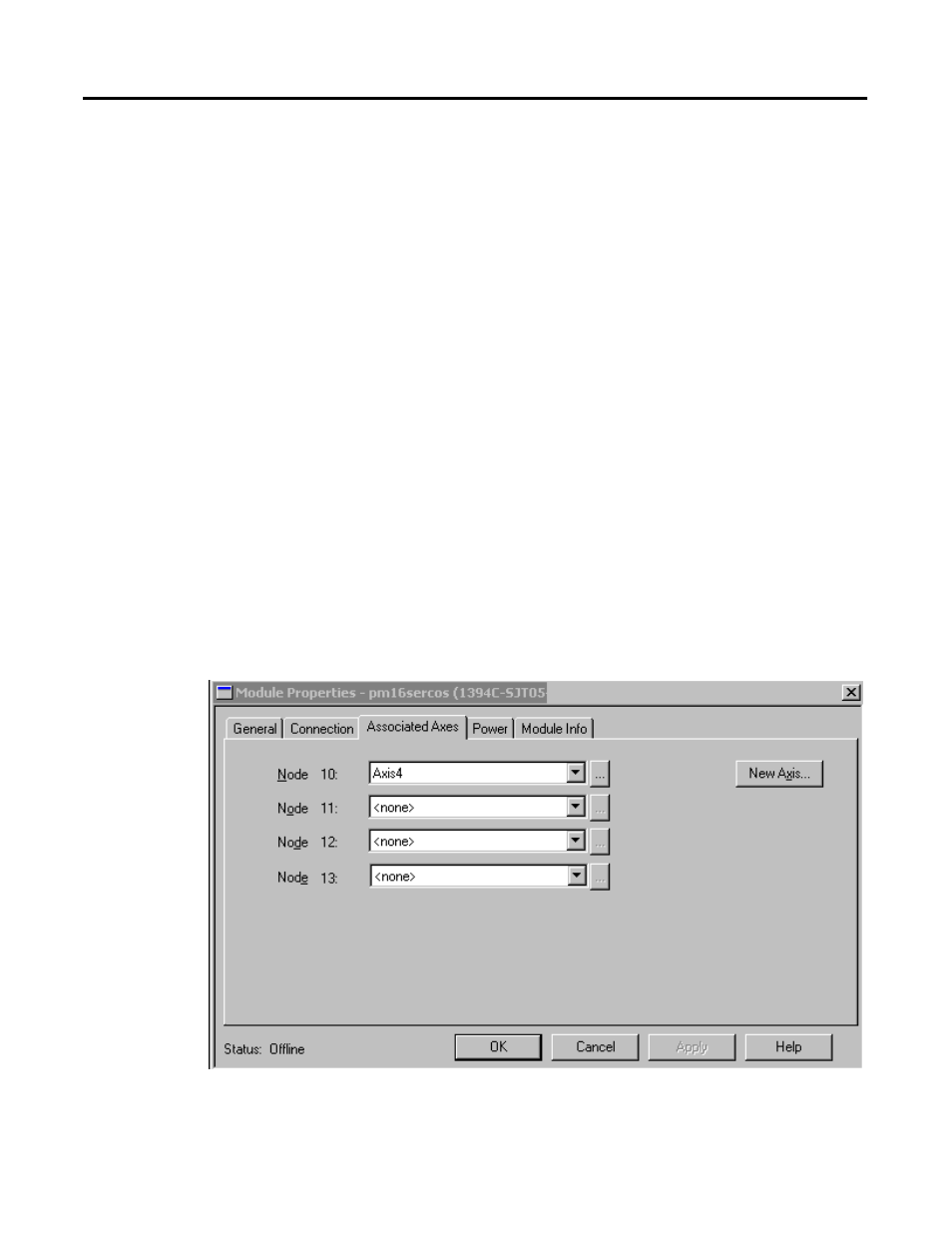

Figure 8.7 Module Properties - Associated Axis Tab
