Page 178
Publication 1784-UM003A-EN-P – June 2003
170 Naming & Configuring Your Motion Axis
Tag Tab
Use this tab to modify the name and description of the axis. When you are
online, all of the parameters on this tab transition to a read-only state, and
cannot be modified. If you go online before you save your changes, all pending
changes revert to their previously-saved state.

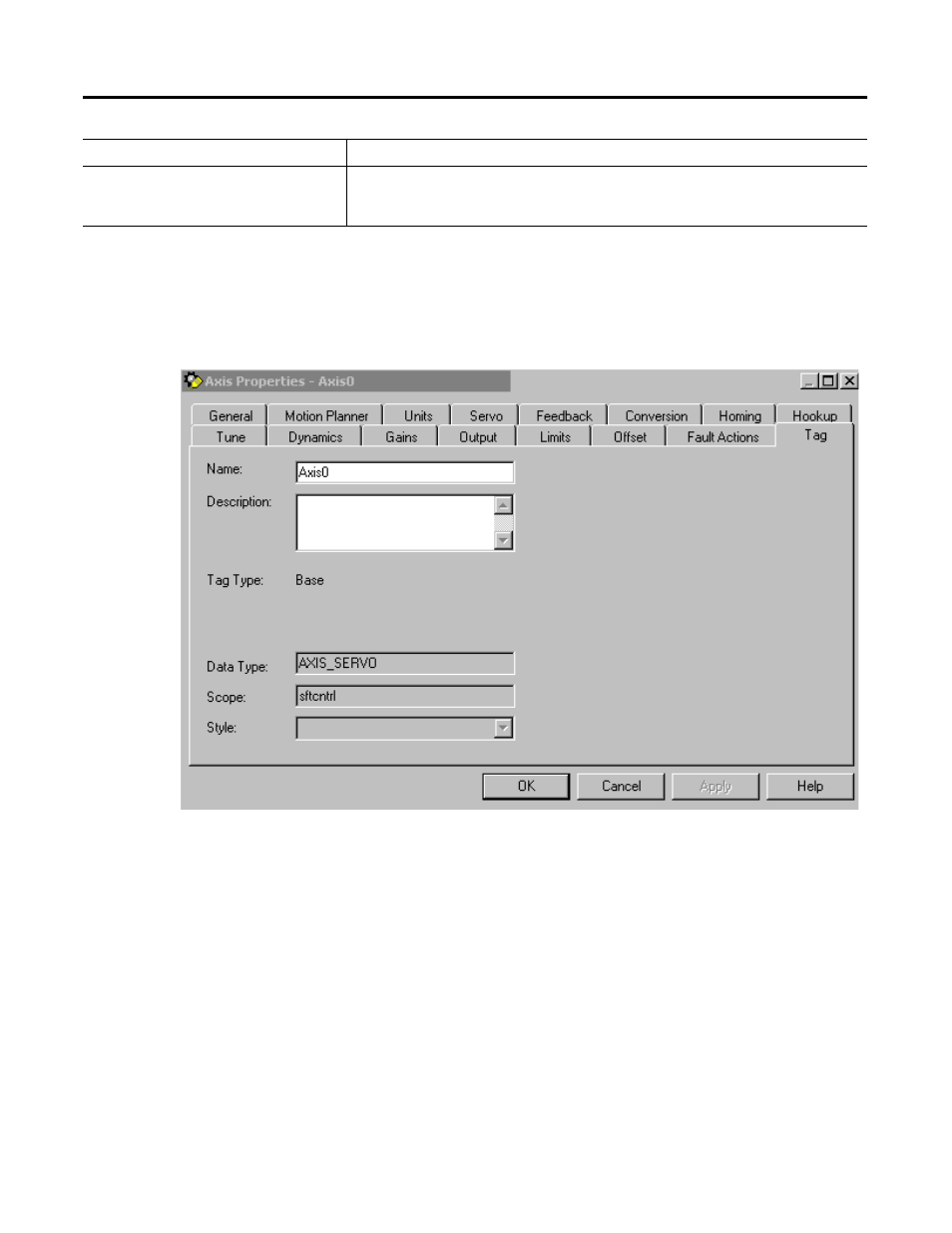

Figure 6.47 Axis Properties - Tag Tab
Name
Displays the name of the current tag. You can rename this tag, if you wish.
Description
Displays the description of the current tag, if any is available. You can edit this
description, if you wish.
BrakeReleaseDelayTime
When the servo axis is enabled , the drive activates the torque to the motor but ignores the
command values from the Logix controller until this time has elapsed. This time allows the
motor’s brake to release. This attribute has a value of 0 to 6.5535.
Attribute
Description
