Publication 1784-UM003A-EN-P – June 2003
Configuring an Ultra 3000 Drive 217
Associated Axes Tab (Ultra3000
Drives)
Use this tab to configure the selected 1784-PM16SE motion module by
associating axis tags (of the type AXIS_SERVO_DRIVE) with nodes available
on the module.

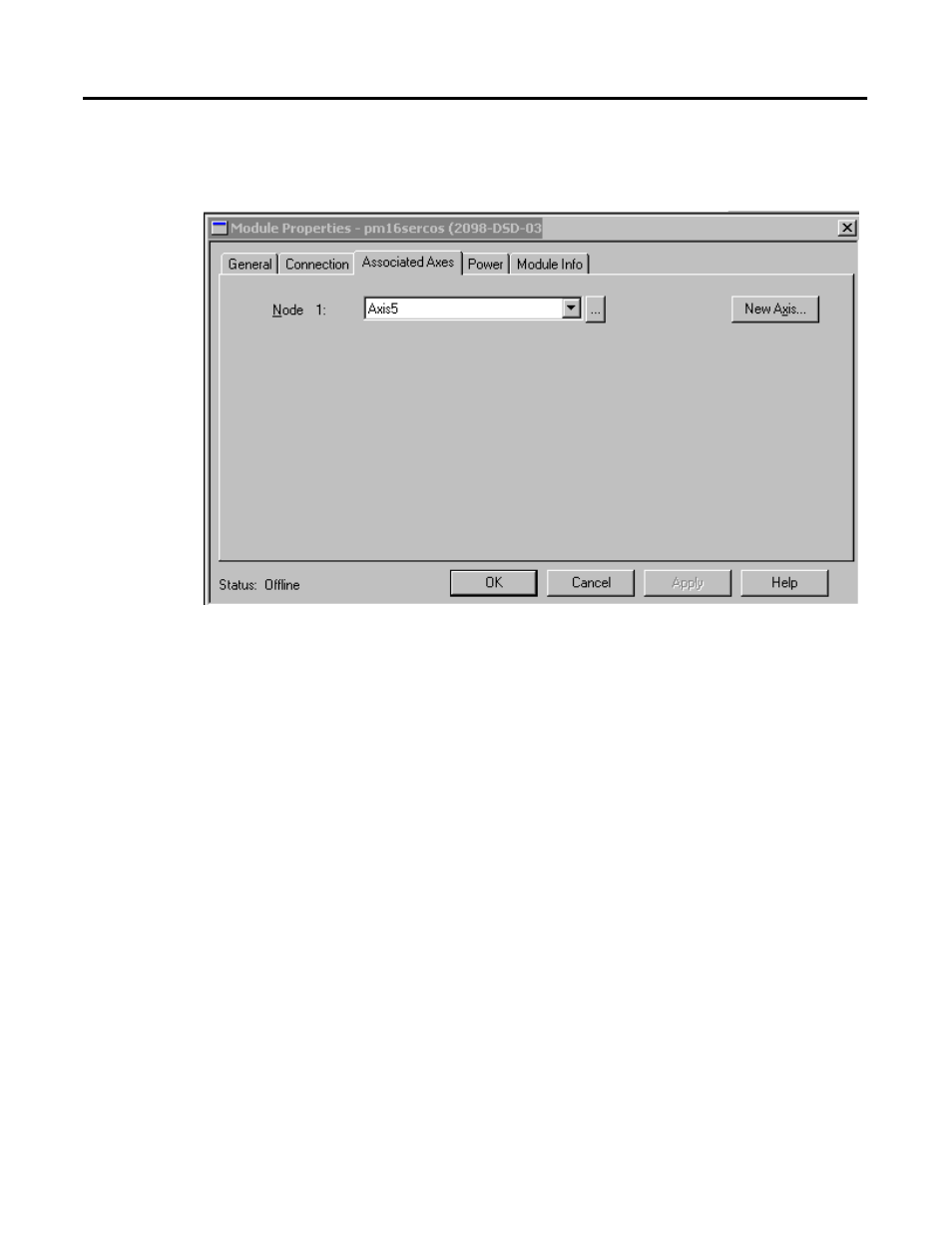

Figure 9.13 Module Properties - Associated Axes Tab
Node
Displays the selected node of the Ultra3000 drive, as selected on the General
tab. This field allows you to associate an AXIS_SERVO_DRIVE tag with the
driver’s node.
Note: This field is read-only while you are online.
Ellipsis (...)
Click on this button to access the Axis Properties dialog for the associated axis.
New Axis
Click on this button to access the New Tag dialog, with the scope, data type,
and produced settings appropriate for a produced axis tag.
