Publication 1784-UM003A-EN-P – June 2003
224 Configuring a Kinetix 6000 Drive
2. Select New Module from the pop up menu.

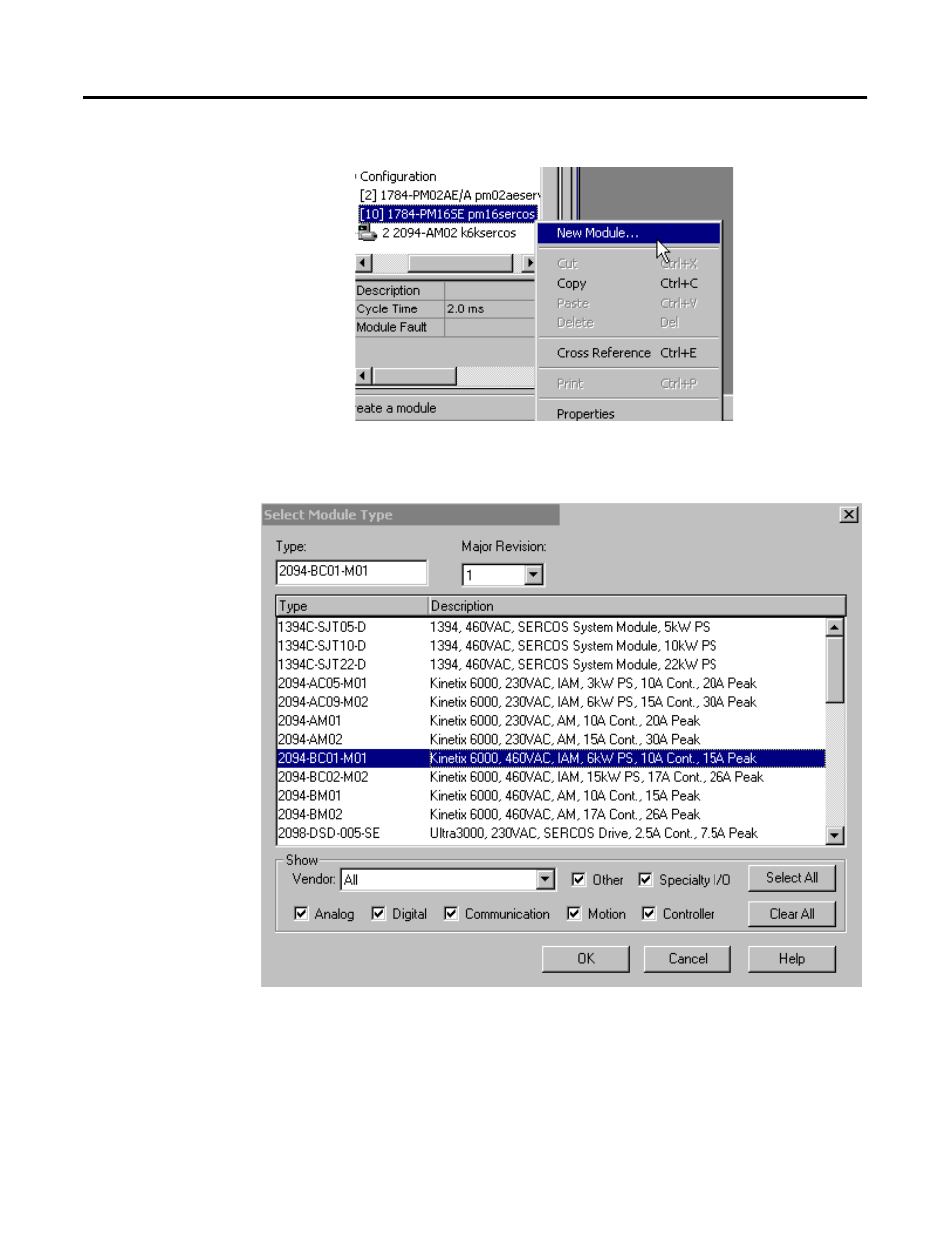

Figure 10.2 New Module Selection from Pop Up Menu
The Select Module Type dialog displays.
Figure 10.3 Select Module Type Window
3. In the Select Module Type dialog, select the desired drive module. The
Kinetix 6000 drives begin with the 2094 prefix.
