72 Configuring the1784-PM16SE Card
• Service Request Error - The controller is attempting to request a service
from the card and has received an error. The service was not performed
successfully.
• Module Configuration Invalid - The configuration in the card is invalid.
(This error is commonly caused by the Electronic Key Passed fault).
• Electronic Keying Mismatch - Electronic Keying is enabled and some
part of the keying information differs between the software and the
card.
SERCOS Interface Tab
The SERCOS interface Tab is for configuring the SERCOS ring. It is here
where you set the specific Data Rate, Cycle Time, and Transmit Power for the
named 1784-PM16SE SERCOS interface card.

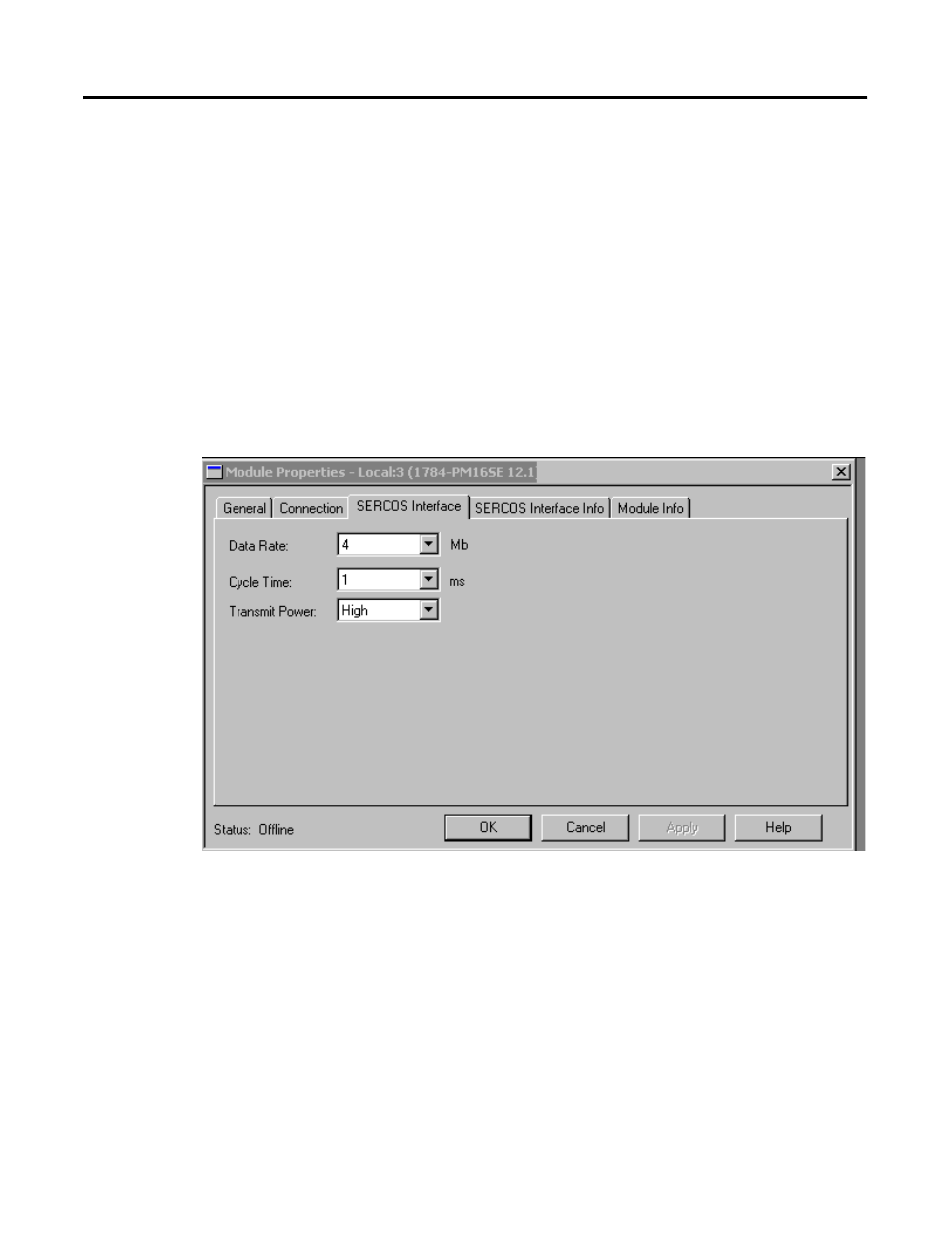

Figure 4.9 Module Properties - SERCOS Interface Tab
Use the SERCOS Interface Tab to set and display the:
• SERCOS baud rate
• update rate for the SERCOS ring
• fiber optic transmit power range for the SERCOS ring
