Editing the ultra drive properties, General tab, Type – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 219
Publication 1784-UM003A-EN-P – June 2003
Configuring an Ultra 3000 Drive 211
Editing the Ultra Drive
Properties
The Module Properties for any of the Ultra3000 drives can be edited by
highlighting the drive to be edited, right click with the mouse and selecting
Properties.

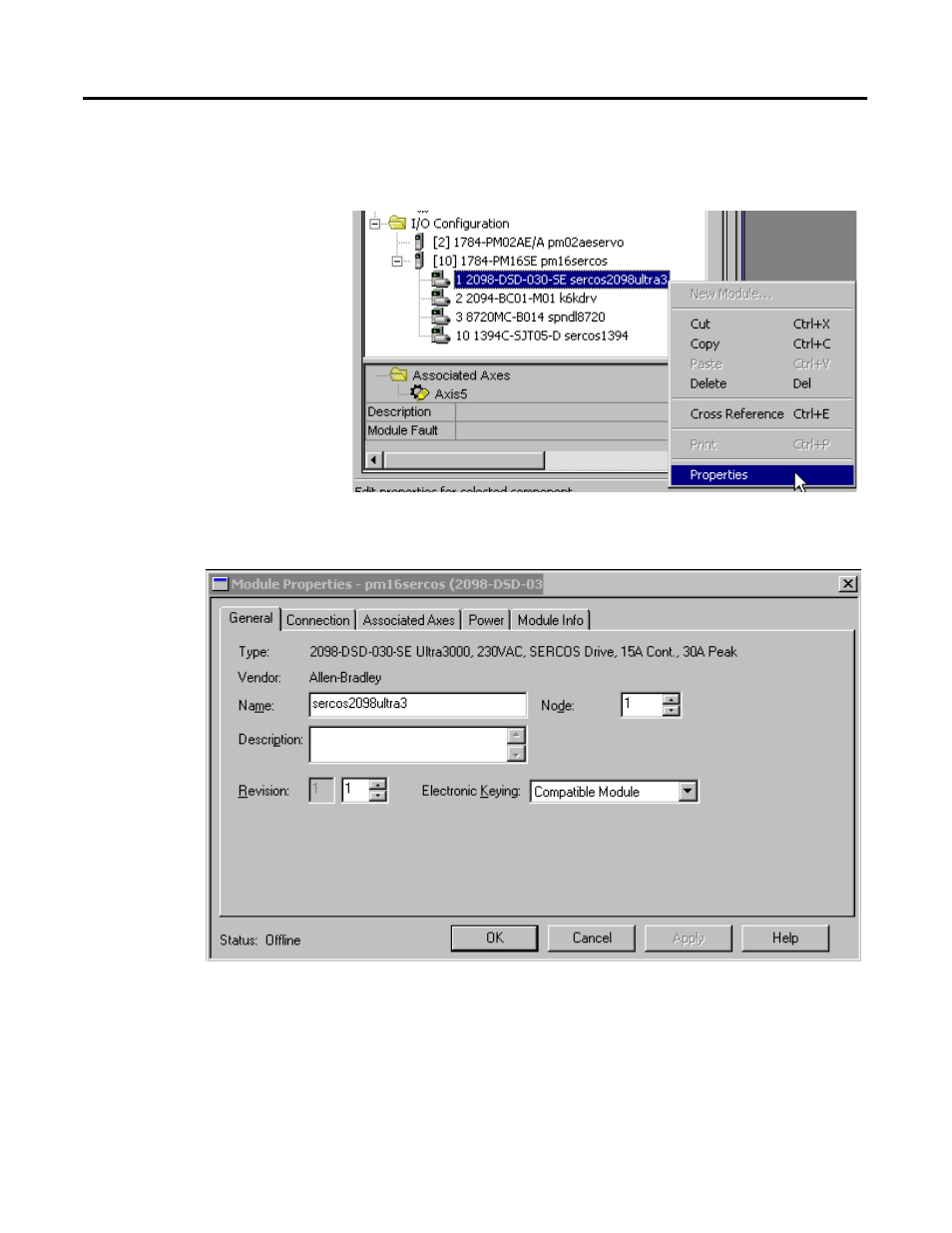

Figure 9.10 Accessing the Properties of the Drive
The Module Properties screen displays.
Figure 9.11 Module Properties - General Tab
General Tab
The General Tab is where you edit the basic values for the Ultra drive.
Type
Displays the type and description of the module being created (read only).
