Publication 1784-UM003A-EN-P – June 2003
52 Adding and Configuring Your 1784-PM02AE Motion Module
This accesses the Module Properties screen. The screen is tabbed to expedite
movement to the required dialog.

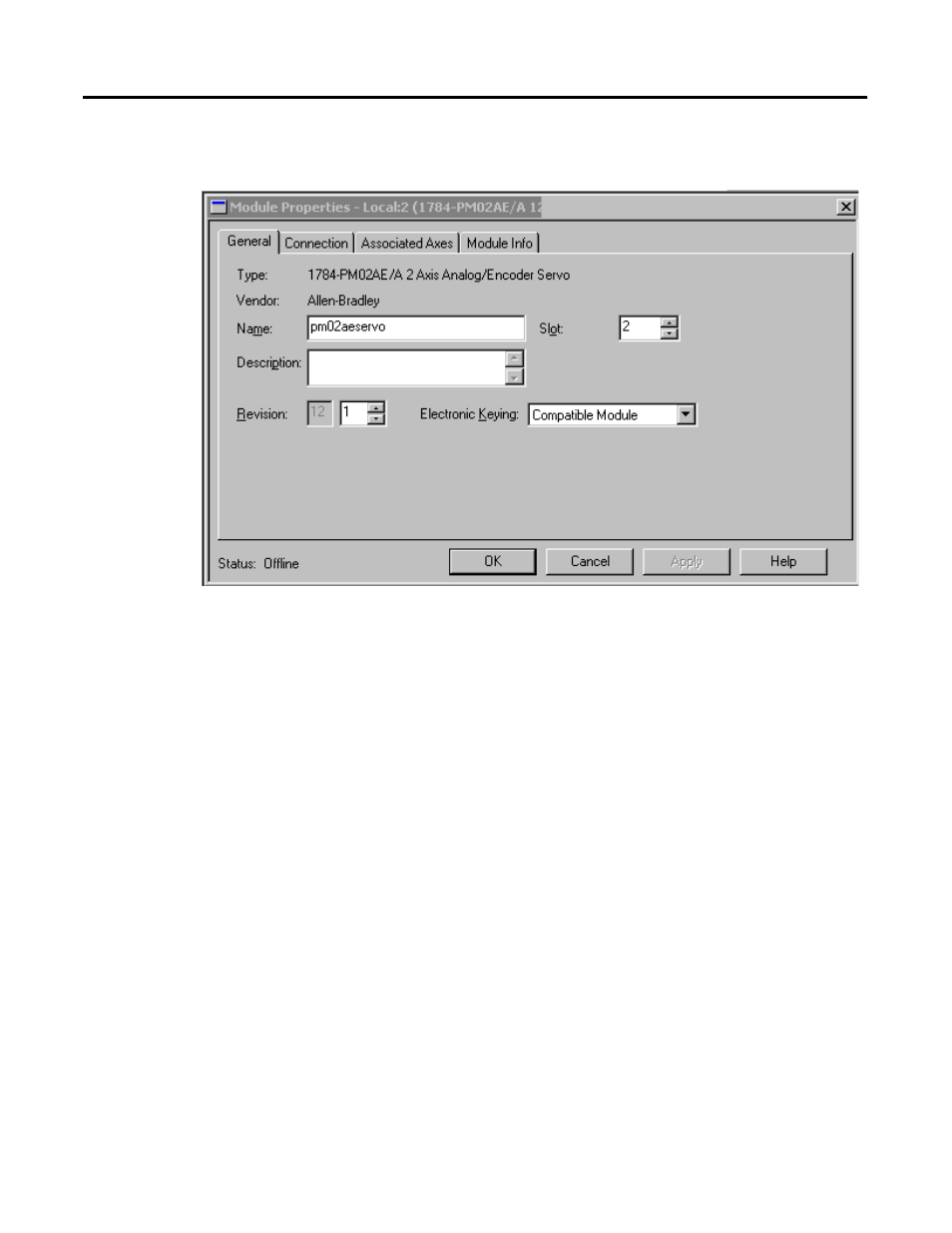

Figure 3.8 Module Properties - General Tab
General Tab
Use this tab to create/view module properties for 1784-PM02AE motion
module. This dialog provides you with the means to view the type, description,
vendor, and the name of the parent module. You can also enter the name and a
description for the module. Other fields and buttons on this dialog let you set
the slot location of the module, review information for both channels, go to
the New Tag dialog to create an axis to associate with one of the channels,
select the minor revision number and select an electronic keying option. You
can also view the status the controller has about the module but, only when
online.
Type
Displays the type and description of the module being created (read only).
Vendor
Displays the vendor of the module being created (read only).
Name
Enter the name of the module.
