Page 122
Publication 1784-UM003A-EN-P – June 2003
114 Naming & Configuring Your Motion Axis
For axes of the type AXIS_SERVO_DRIVE:
• when you save an edited Conversion Constant or a Drive Resolution
value, a message box appears, asking you if you want the controller to
automatically recalculate certain attribute settings. (Refer to Conversion
Constant and Drive Resolution Attributes.)
• the label indicates the number of counts per motor revolution, as set in
the Drive Resolution field of the Drive tab.
Click on Apply to accept your changes.
Homing Tab - AXIS_SERVO and
AXIS_SERVO_DRIVE
Use this tab to configure the attributes related to homing an axis of the type
AXIS_SERVO or AXIS_SERVO_DRIVE.
When a parameter transitions to a read-only state, any pending changes to
parameter values are lost, and the parameter reverts to the most recently saved
parameter value.

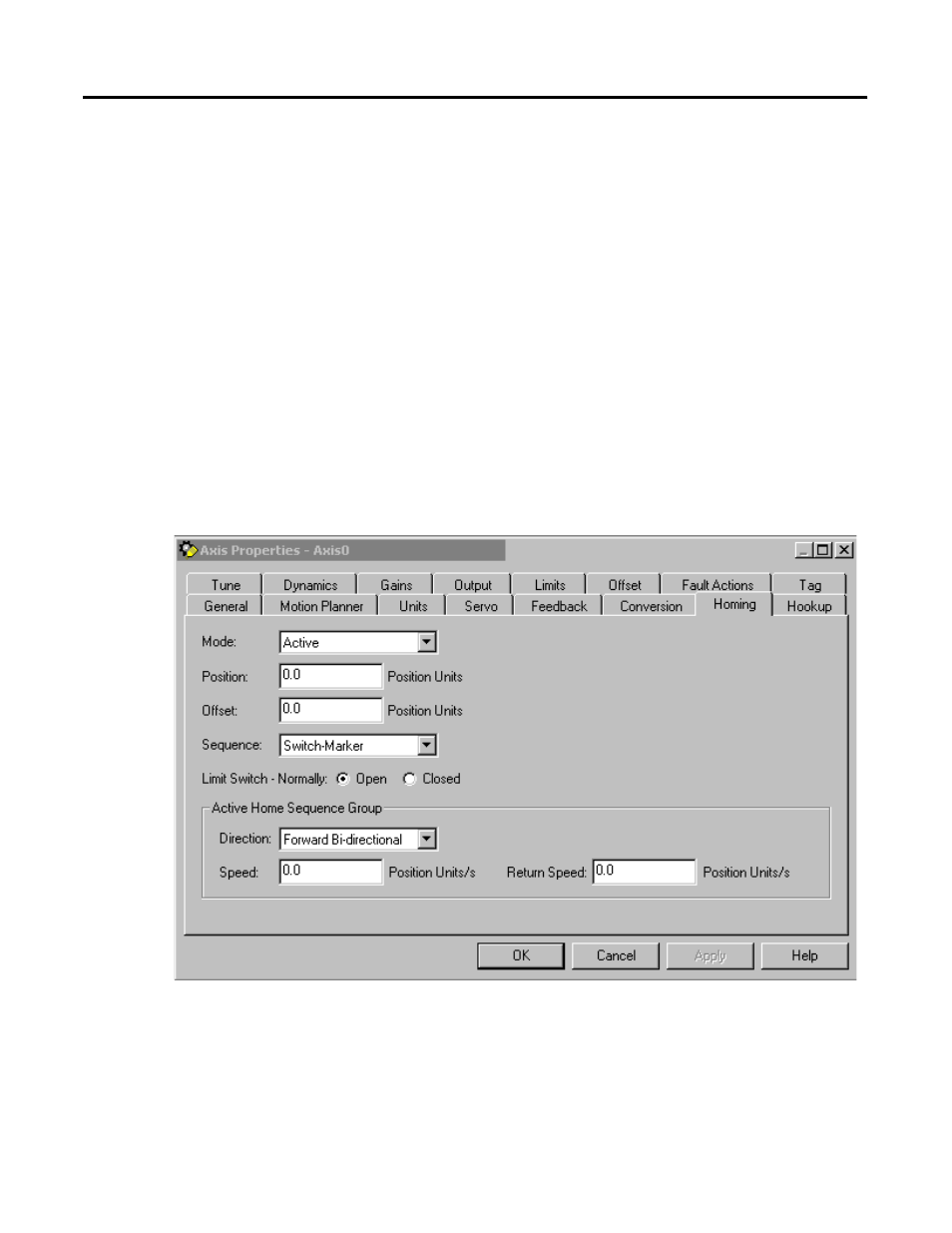

Figure 6.19 Axis Properties - Homing Tab for Axis_Servo
