5. Select OK. The Module Create Wizard displays.

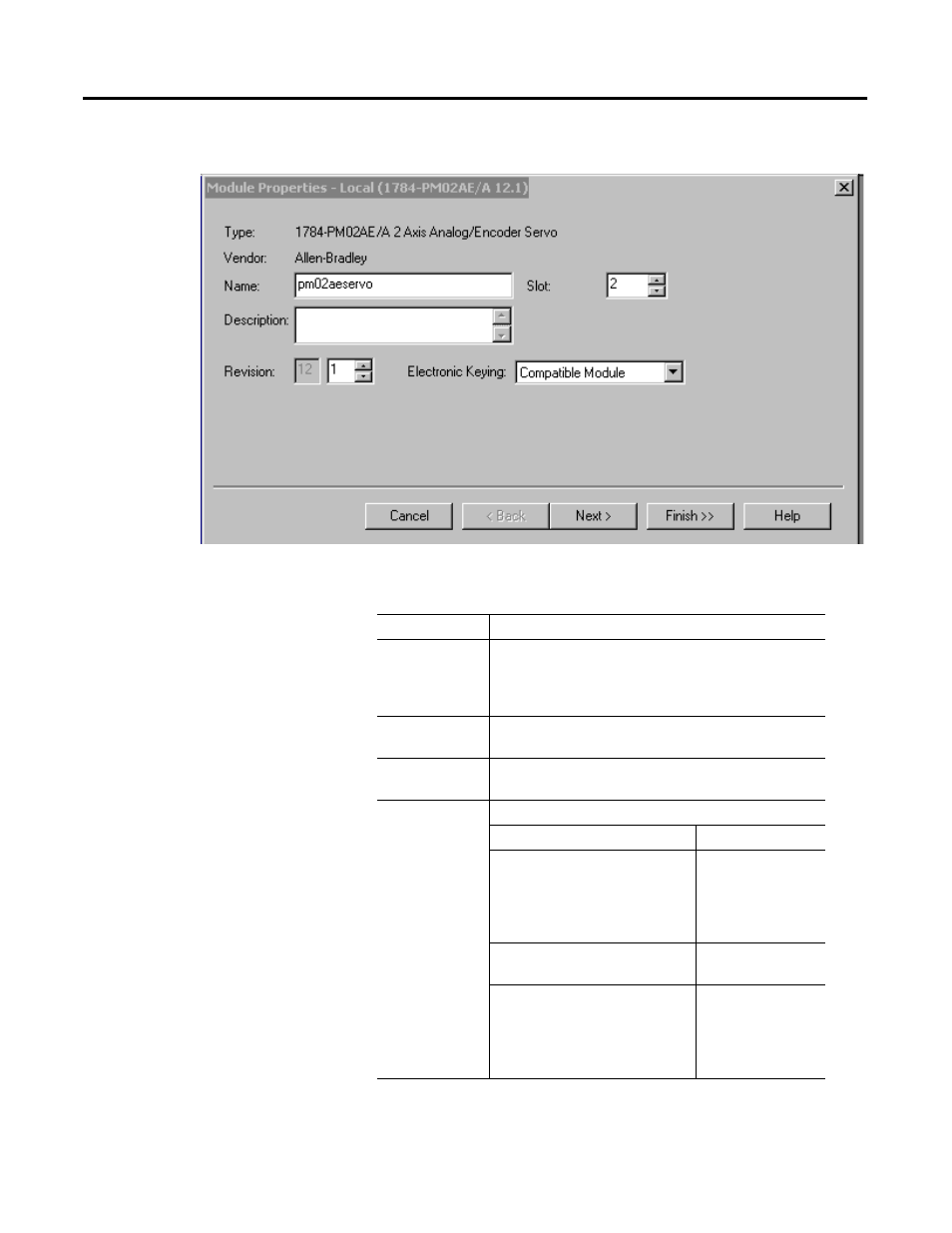

Figure 3.4 Module Properties Dialog Wizard - Naming the Module
6. Make entries in the following fields.
Field Entry
Name Type a name for the servo module.
The name can:
• have a maximum of 40 characters
• contain letters, numbers and underscores (_).
Slot Enter the number of the chassis slot that contains your
module.
Description Type a description for your motion module.
This field is optional.
Electronic
keying Select the electronic keying level.
To Select
Match the vendor, catalog
number, and major revision
attributes of the physical module
and the software configured
module Compatible module
Disable the electronic keying
protection mode Disable keying
Match the vendor, catalog
number, major revision, and
minor revision attributes of the
physical module and the
software configured module Exact match
