Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 89
Publication 1784-UM003A-EN-P – June 2003
The Motion Group 81
The Motion Group Wizard group - Axis Assignment screen displays.

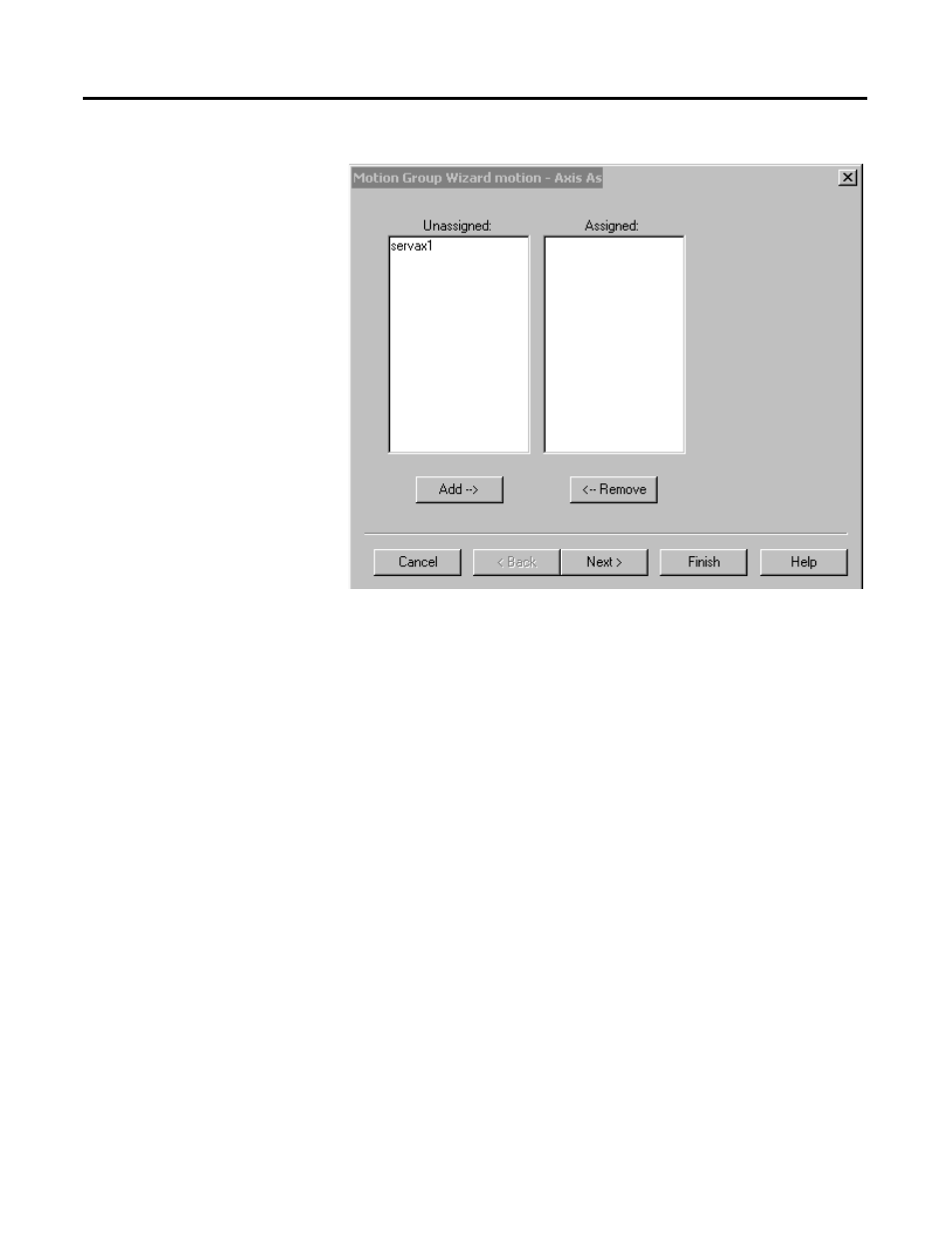

Figure 5.3 Motion Group Wizard Dialog - Axis Assignment
Add any existing axes to the group.
8. Continue on through the Motion Group Wizard to configure your
Motion Group tag as necessary. Click on Finish>> to close the wizard.
