Publication 1784-UM003A-EN-P – June 2003
188 Creating & Configuring Your Coordinate System Tag
Tag Type
Indicates the type of the current Coordinate System tag. This type may be:
• Base
• Alias
The field is not editable and is for informational purposes only.
Data Type
Displays the data type of the current Coordinate System tag which is always
COORDINATE_SYSTEM. This field cannot be edited and is for
informational purposes only.
Scope
Displays the scope of the current Coordinate System tag. The scope for a
Coordinate System tag can only be controller scope. This field is not editable
and is for informational purposes only.
Style
Not applicable.
Right Mouse Click
Properties

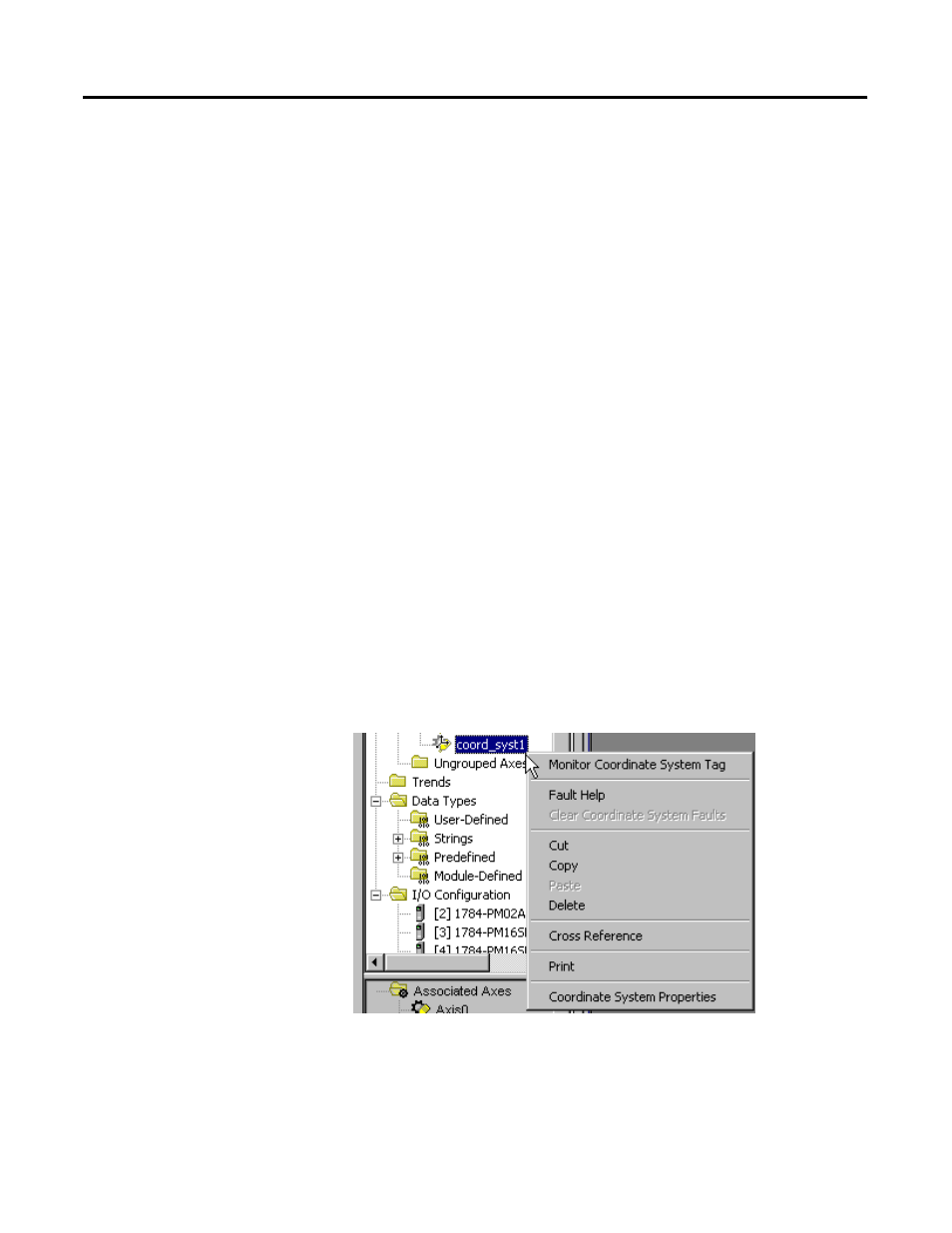

Right mouse clicking on a specific Coordinate System launches the following
pop-up menu.
Figure 7.11 Right Click Pop-Up Menu
