Publication 1784-UM003A-EN-P – June 2003

Configuring a Kinetix 6000 Drive 231

Module Fault

Displays the fault code returned from the controller (related to the module you
are configuring) and the text detailing the Module Fault that has occurred.

The following are common categories for errors:

Connection Request Error - The controller is attempting to make a

connection to the module and has received an error. The connection
was not made.

Service Request Error - The controller is attempting to request a

service from the module and has received an error. The service was not
performed successfully.

Module Configuration Invalid - The configuration in the module is

invalid. (This error is commonly caused by the Electronic Key Passed
fault).

Electronic Keying Mismatch - Electronic Keying is enabled and some

part of the keying information differs between the software and the
module.

Associated Axes Tab (Kinetix 6000

Drives)

Use this tab to configure the selected 1784-PM16SE motion module by
associating axis tags (of the type AXIS_SERVO_DRIVE) with nodes available
on the module.

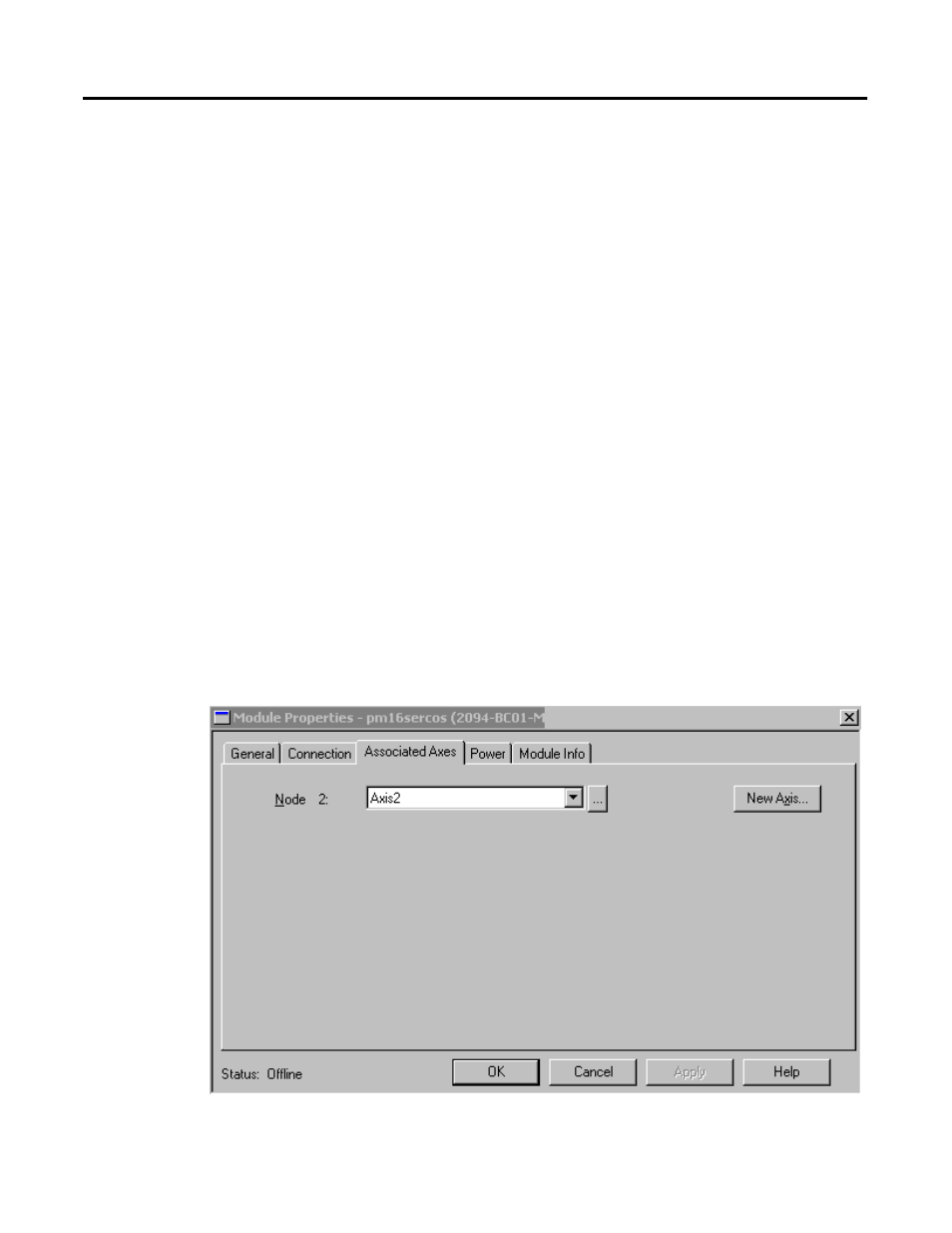

Figure 10.8 Module Properties - Associated Axes Tab
