Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual
Page 214
Publication 1784-UM003A-EN-P – June 2003
206 Configuring an Ultra 3000 Drive
4. Select New Module from the pop up menu.

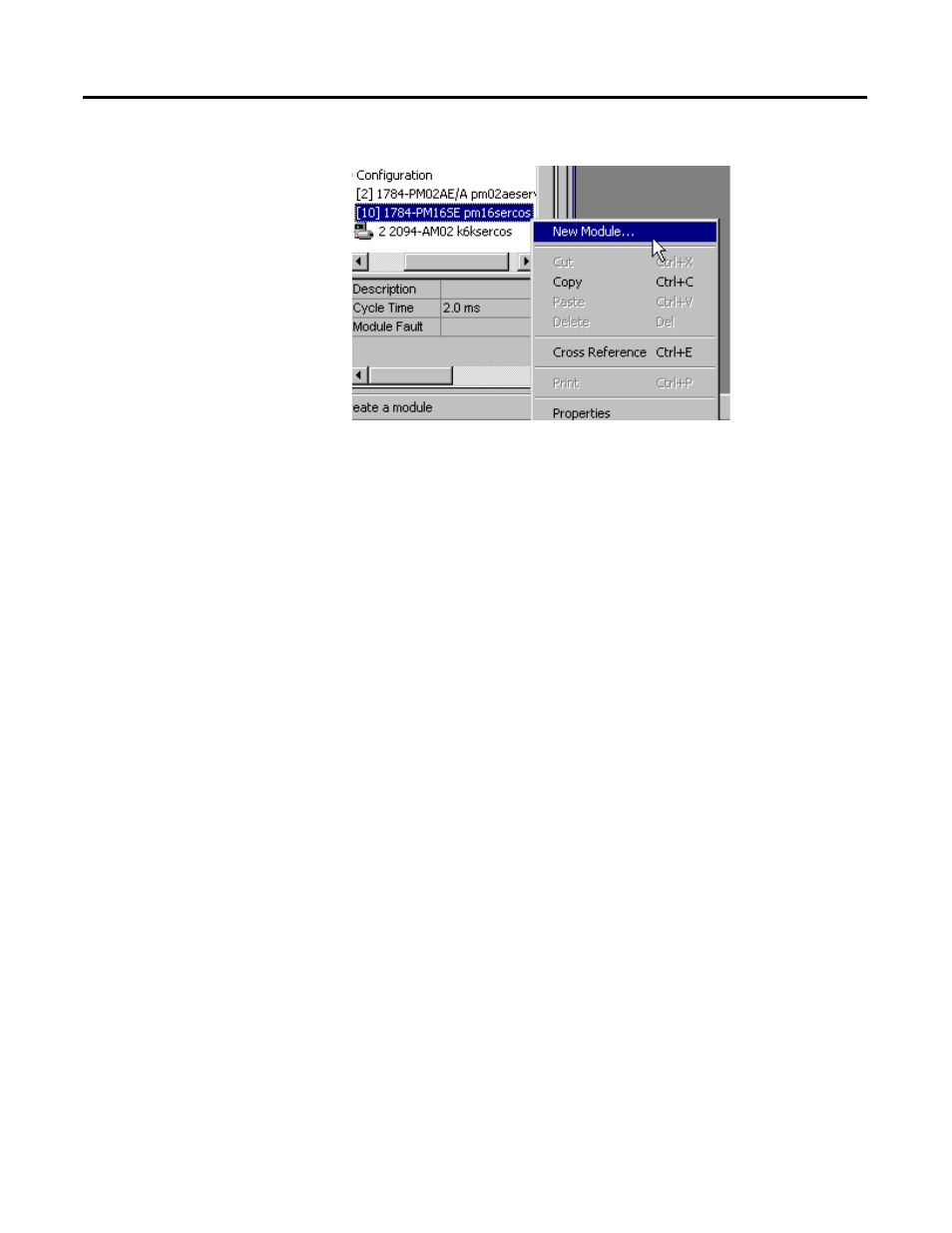

Figure 9.2 New Module Selection from Pop Up Menu
The following fields are displayed only if you are viewing this tab through the
Create wizard.
Next> – Click this button to view the next Create wizard page.
Finish>> – Click this button to close the Create wizard.
