Publication 1784-UM003A-EN-P – June 2003
SoftLogix Controller 41

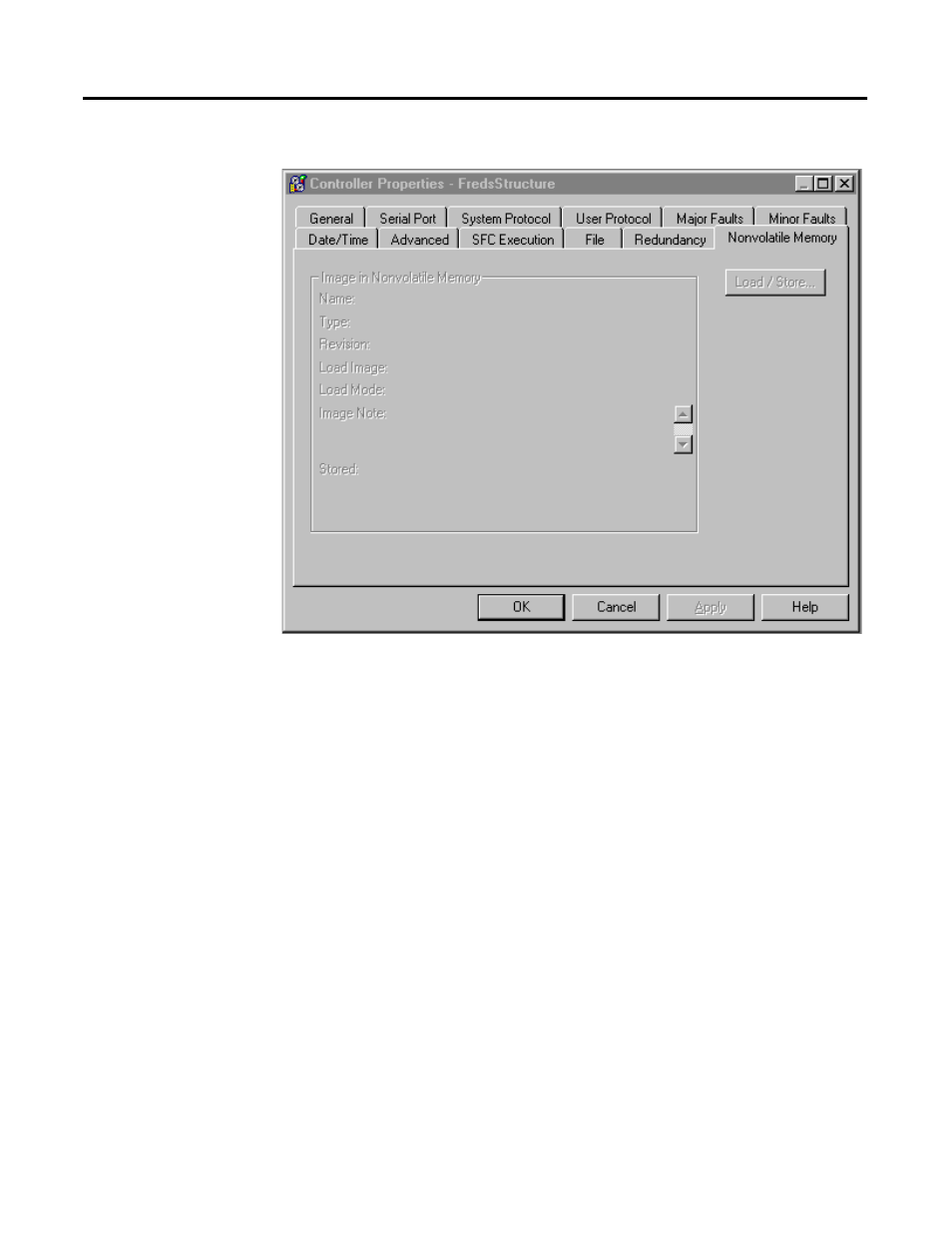

Figure 2.16 Controller Properties Nonvolatile Memory Tab
Name
The name of the stored controller image that resides in nonvolatile memory.
Type
The controller type for the image stored in nonvolatile memory. This
controller type can be any type that supports nonvolatile memory.
Revision
The firmware revision of the controller when the image in nonvolatile memory
was stored. In order for the image in nonvolatile memory to be loaded back
into controller memory, the firmware revision of that image must match the
revision of the controller.
