External drive configuration, Loop configuration, Enable drive fault input – Rockwell Automation 1784-PM16SE SoftLogix Motion Card Setup and Configuration Manual User Manual

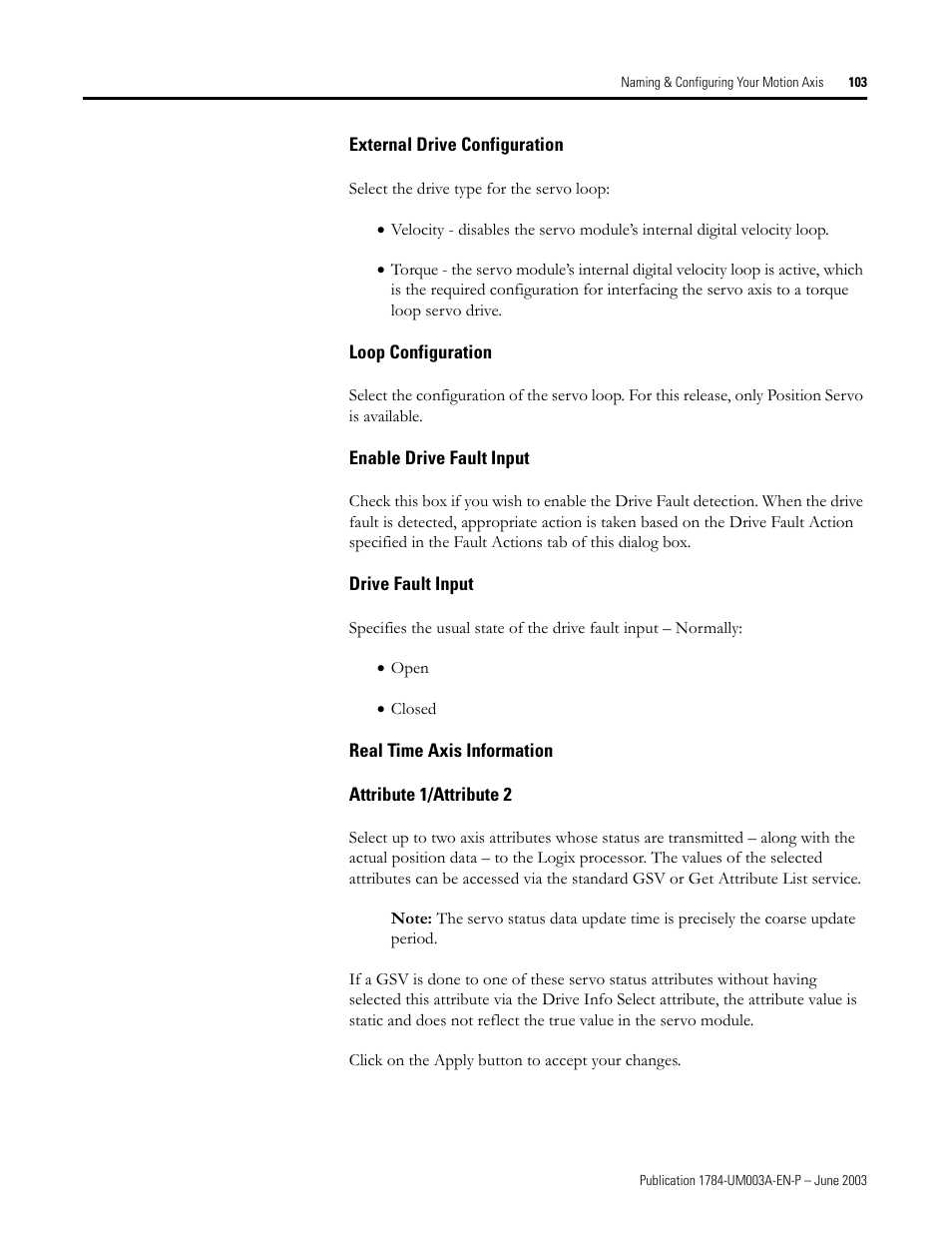

Page 111: Drive fault input, Real time axis information, Attribute 1/attribute 2
