PM Designer Operation Manual
3-37
CHAPTER 3 CREATING PANEL APPLICATIONS
3.6.2. General Settings

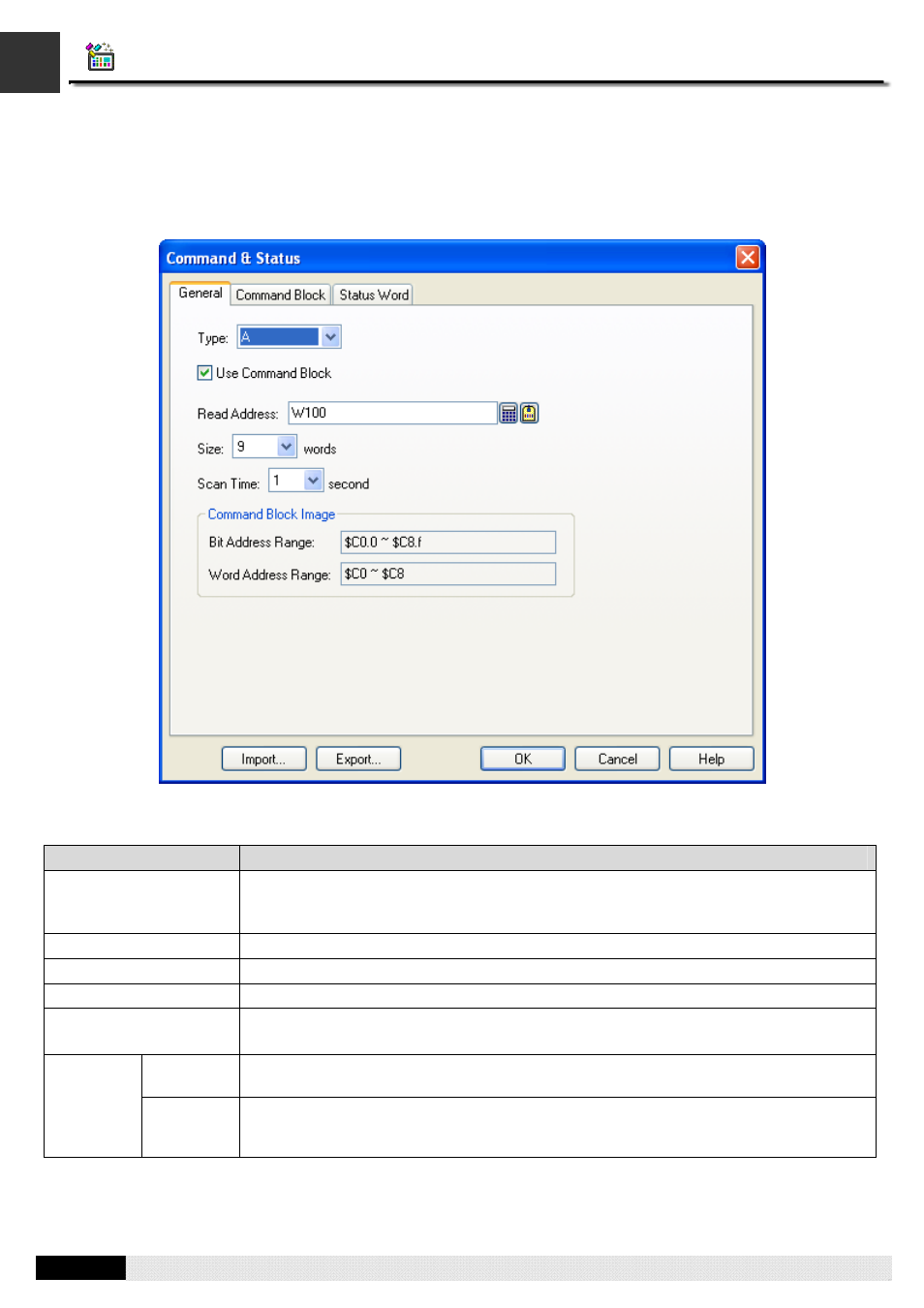

This section describes how to define the general settings for the command words and the status words using the General
page of the Command & Status dialog box. The following is an example of the General page.
The following table describes each property in the General page.
Property Description
Type Select one of the following three types of control block and status words for your
application:
A, H (Binary), H (BCD)
Use Command Block Check this item if the application needs any of the command words.
Read Address Specifies the address of the command block.
Size Specifies the size of the command block.
Scan Time Select one of the following rate for the panel to scan the command block:
1 second, 0.5 second, 0.25 second
Bit Address
Range Shows the valid address range of the bits in the command block. Note that the application
can only read the bits. Command
Block
Word
Address
Range Shows the valid address range of the words in the command block. Note that the
application can only read the words.
