PM Designer Operation Manual
11-13
11.6. Alarm Displays
11.6.1. Basic Operations
There are four types of alarm displays.
Type Description
Alarm
History You can display a list of alarm records by using an alarm history display.

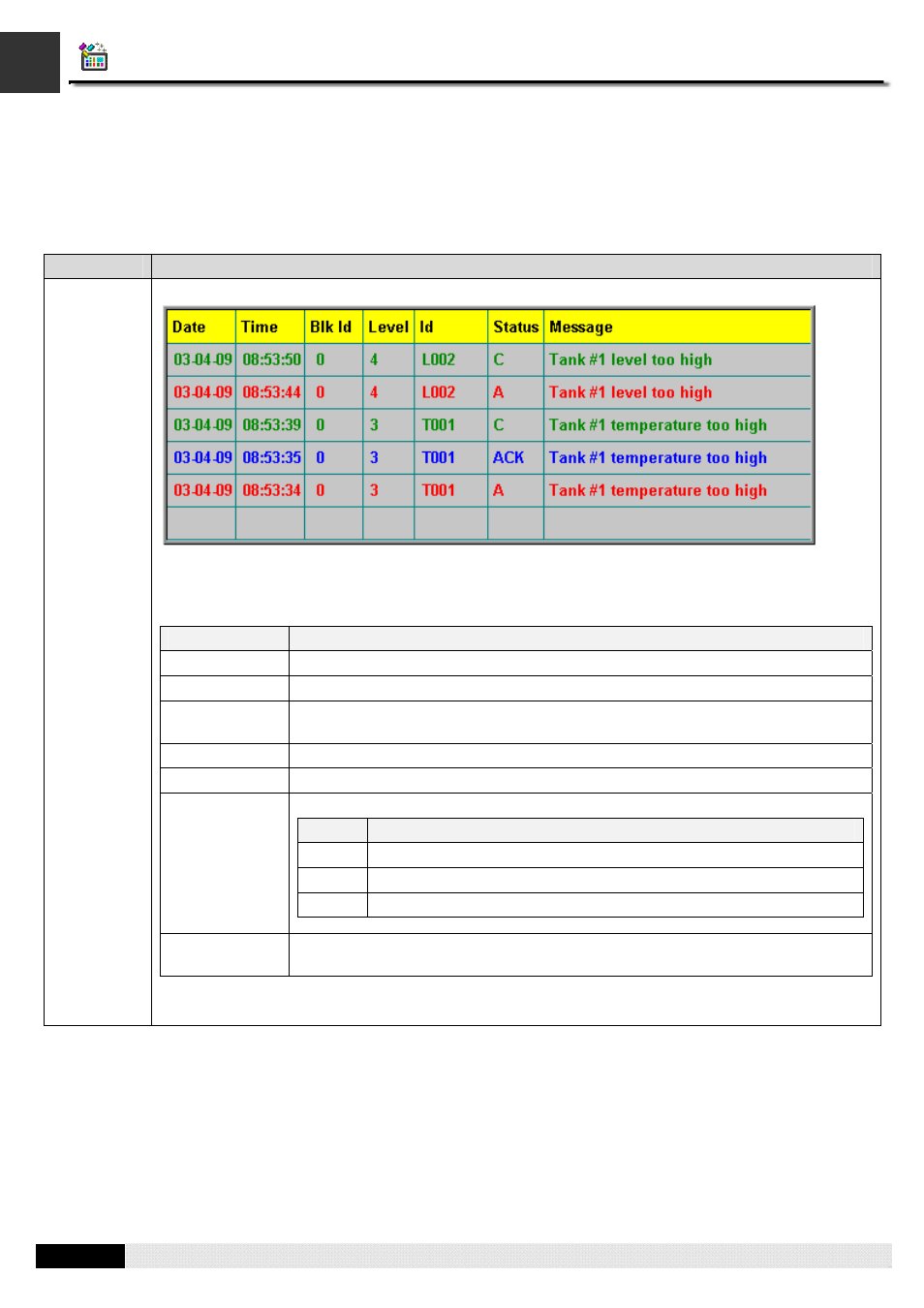

The above is an example of the alarm history display. The first row is the title row. It displays the title of
each column. The other rows display one alarm record per row. You can create scroll button groups or
scroll bars to scroll the contents. An alarm history display can have seven columns. The following table
describes the content of each column for an alarm record.
Column Description
Date The date when the record is created. This column is optional.
Time The time when the record is created. This column is optional.
Alarm Block ID The ID of the alarm block in which the associated alarm is defined. This column is
optional.
Alarm Level The level of the associated alarm. This column is optional.
Alarm ID The ID of the associated alarm. This column is optional.
Alarm Status The type of the alarm record. There are three types of alarm records.
Type Description
Active An Active record is created when an alarm is activated.
ACK An ACK record is created when an alarm is acknowledged.
CLR A CLR record is created when an alarm is cleared.
Alarm
Message The message of the associated alarm. This column is optional.
The text color of a row is determined by the type of the alarm record.
Continued
