PM Designer Operation Manual
8-15
8.3.4. General Settings
This section describes how to define the general settings for a circular bar graph.

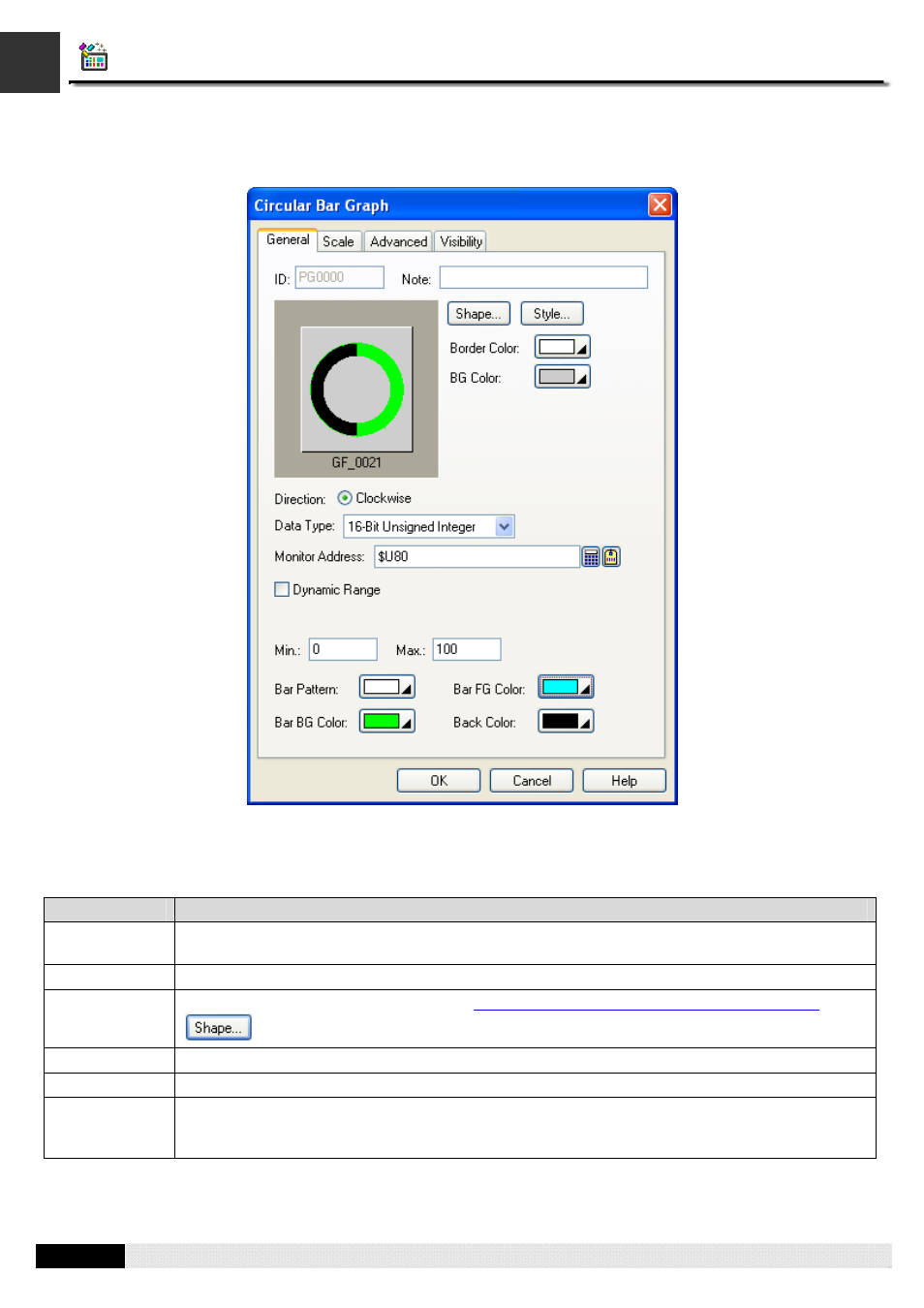

The above is an example of the General page of the Circular Bar Graph property sheet.
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created. The identifier is unique within the
screen where the object is on. The format of the ID’s for the circular bar graphs is PGnnnn.
Note You can type a note for the object.
Shape settings For details about the following properties, Section 4.3.1.4 Setting up the Shape of an Object.
, Border Color, BG Color
Style Specifies the style of the circular bar graph. For details, see ?, ?.
Direction Specifies the progress direction of the circular bar graph. Now only the Clockwise is available.
Data Type The data type of the monitored variable. The supported data types include: 16-Bit Unsigned
Integer, 32-Bit Unsigned Integer, 16-Bit Signed Integer, 32-Bit Signed Integer, 16-Bit BCD, 32-Bit
BCD, and 32-Bit Floating Point.
Continued
