3.7. Setting up Clock Operations
This section describes how to define the clock operations for the panel application using the Clock dialog box. The

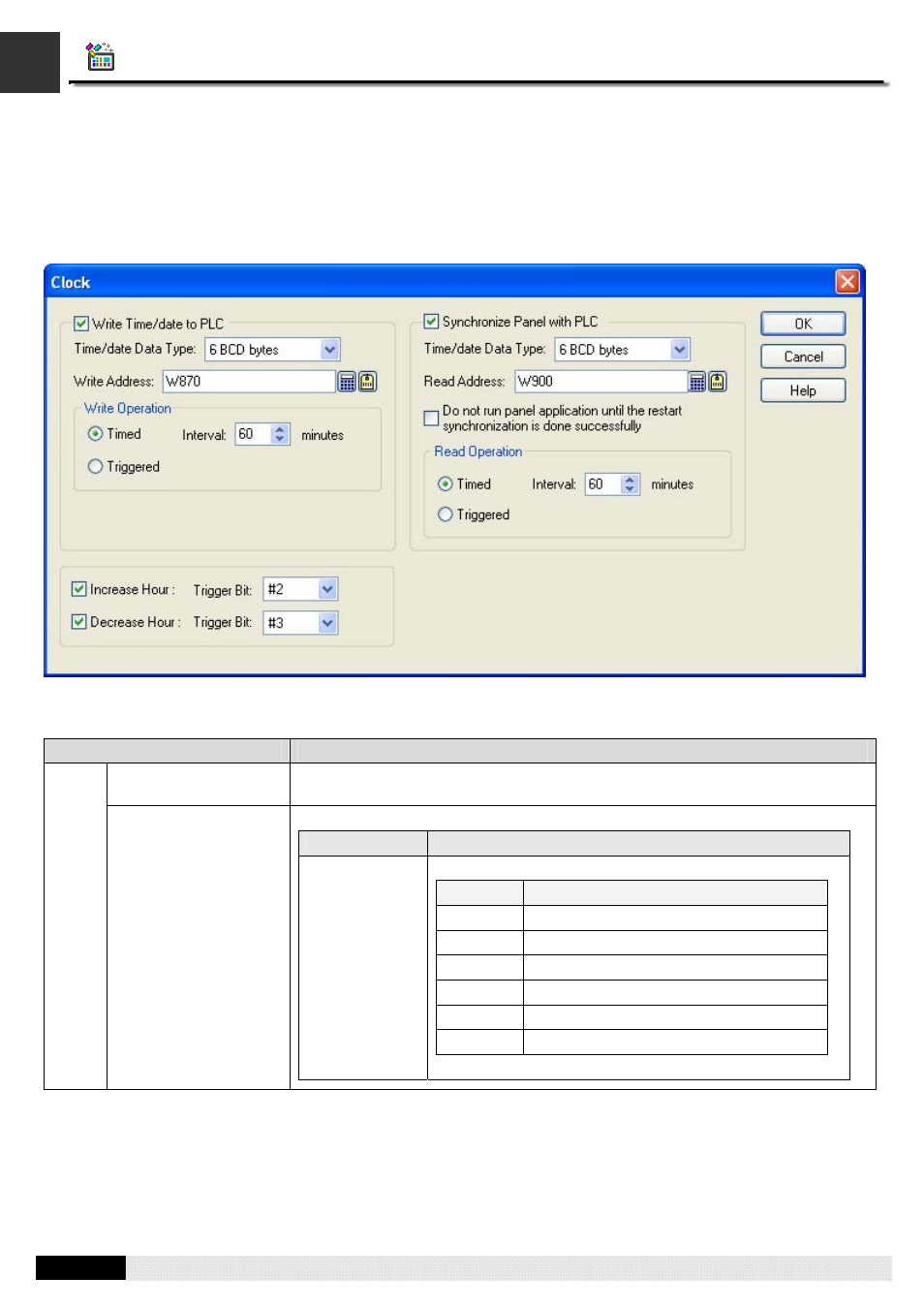

following is an example of the Clock dialog box.
The following table describes each property in the Passwords dialog box.
Property Description
Write Time/date to
PLC Select this option so the panel will write time and date information to the specified
variable. Write
Time/date Data Type Select one of the following data type for the output time and data information.
Data Type Description
6 BCD bytes The following shows the data structure.
Byte No. Content
0 Minute; 0~59
1 Hour; 0~23
2 Day; 1~31
3 Month; 1~12
4 Year; 00~99
5 Day-of-week; 0(Sunday)~6(Saturday)
Note: All the values are in BCD format.
