9
PM Designer Operation Manual
9-4
CHAPTER 9 ANIMATED OBJECTS

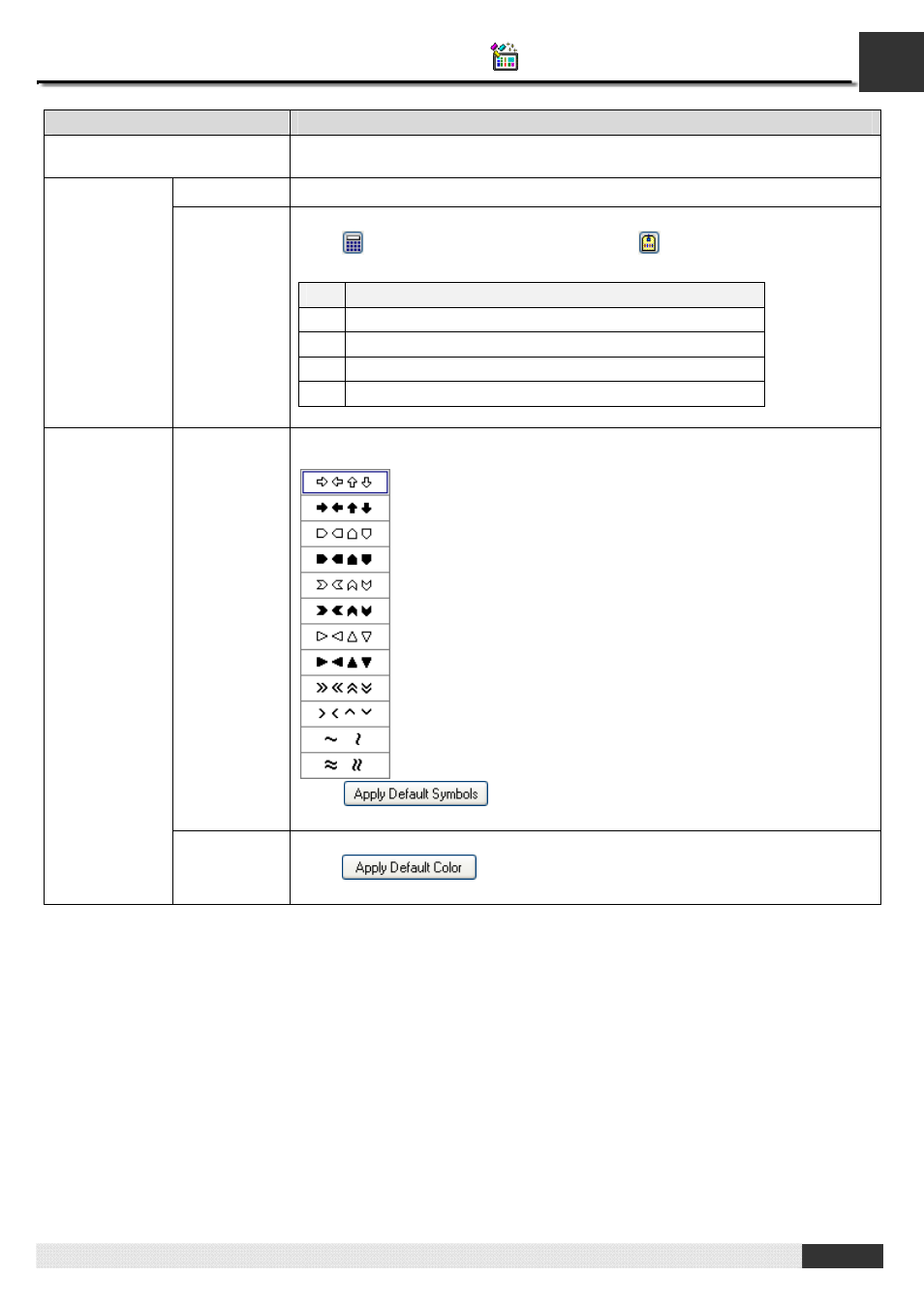

Property Description
Flow Effect On/Off Control Check this option if you want to enable and disable the flow effect for the pipeline at
runtime. The flow effect will be enabled when bit 3 of the control word is on.
Size Select Word or Double Word for the size of the control word. Control Word
Address Specifies the variable that controls the pipeline.
Click to enter an address for this field. Click to select a tag for this field.
The following table shows the bit assignment data of the variable:
Bit Assignment
0 Shows body/content color #2 when this bit is on
1 Shows body/content color #3 when this bit is on
2 Blinks when this bit is on
3 Shows the flow effect when this bit is on
Default
Symbols Select a set of symbols as the default symbols for the flow effect. There are 12
available sets:
Click to make all pipes of the pipeline use the default
symbols for the follow effect.
Flow Effect
Default Color Select a color as the default color for the flow symbols.
Click to make all pipes of the pipeline use the default color for
the follow symbols.
