CHAPTER 4 DESIGNING SCREENS

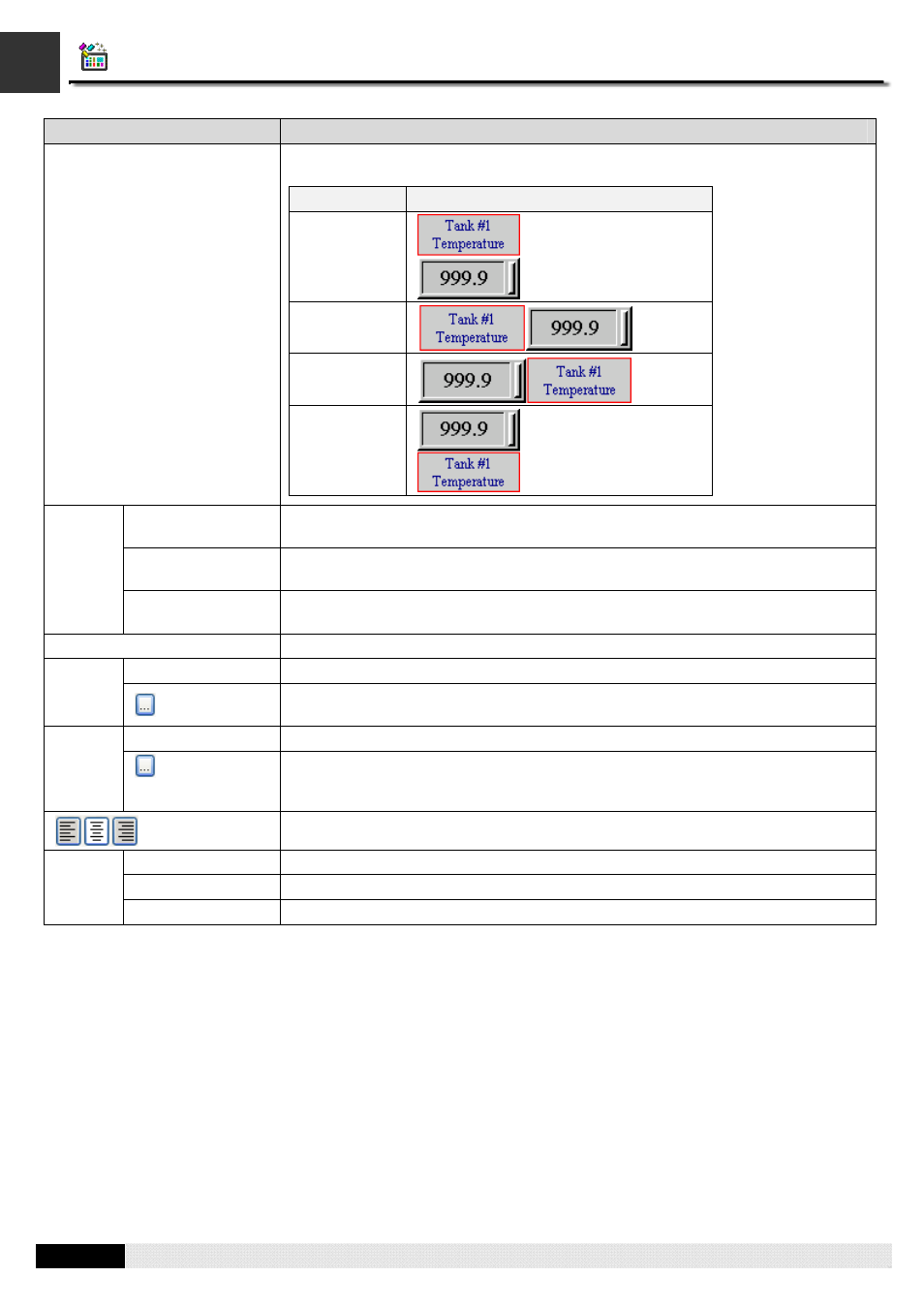

Property Description
Position Specifies the position of the external label relative to the object. There are four
positions as shown below:
Position Example
Top
Left
Right
Bottom
Border
The border color of the plate. To specify the color, click the corresponding Color
icon and select a color from the Color palette.
Plate
The color of the plate. To specify the color, click the corresponding Color icon and
select a color from the Color palette.
Color
Text
The color of the text. To specify the color, click the corresponding Color icon and
select a color from the Color palette.
Language The language that you are setting the text for.
The font of the text for the current language Font
Click this button to bring up the Font Templates dialog box and select a font for the
text. You can change the font templates before selecting a font in that dialog box.
The text for the current language. Text
Click this button to bring up the Text Source dialog box and select a string for the
current text. You can change the text database before selecting a string in that
dialog box.
The alignment of the text.
Border The distance (in pixels) between the plate border and the text body.
Line The distance (in pixels) between two adjacent lines of the text.
Spacing
Character The distance (in pixels) between two adjacent characters of the text.
