5
PM Designer Operation Manual
5-30
CHAPTER 5 BUTTONS AND SWITCHES
5.7.4. General Settings

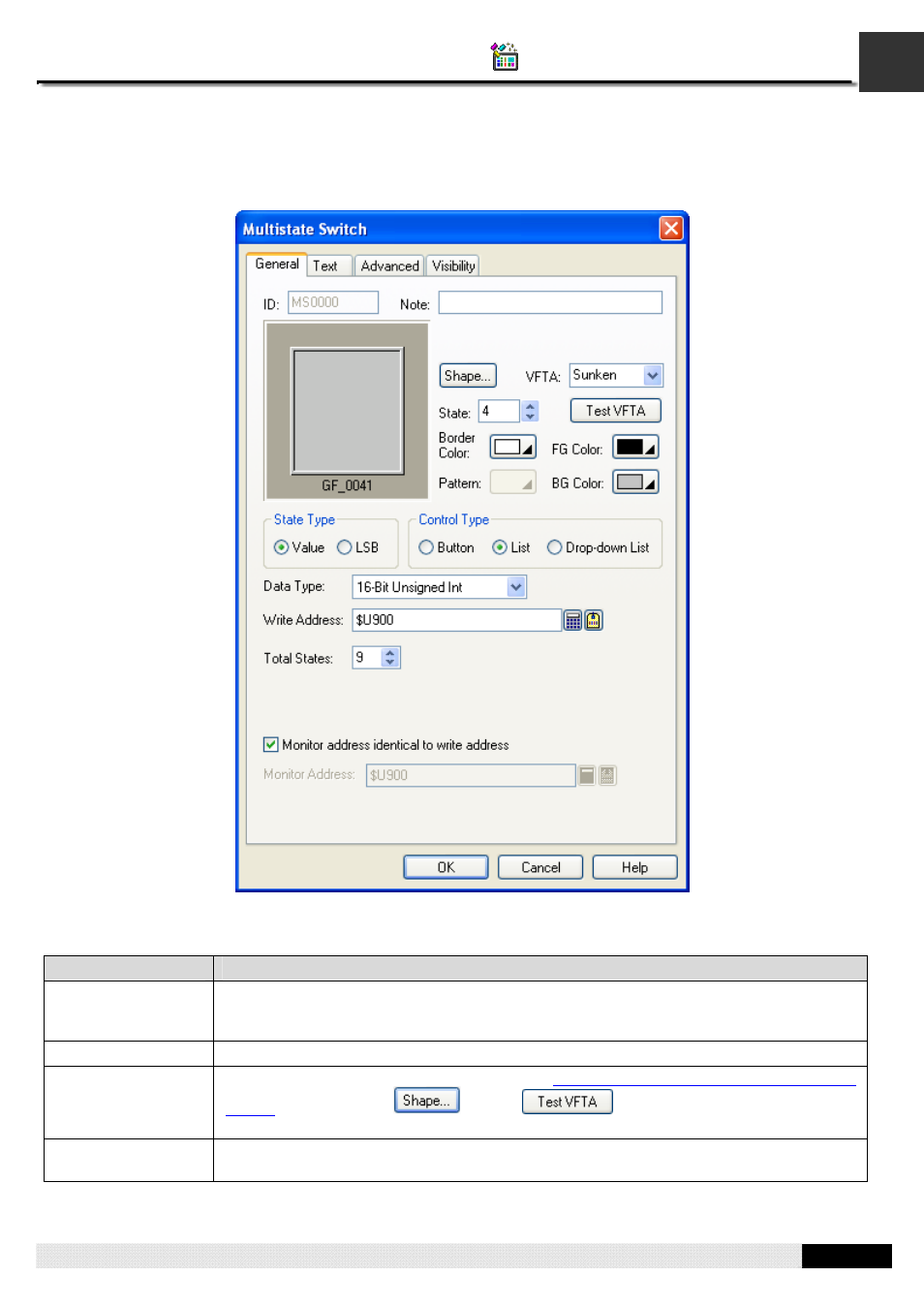

This section describes how to define the general settings for a multi-state switch. The following is an example of the
General page of the Multi-state Switch property sheet.
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created. The identifier is unique
within the screen where the object is on. The format of the ID’s for multi-state switch is
MSnnnn.
Note You can type a note for the multi-state switch.
Shape settings For details about the following properties, see Section 4.3.1.4 Setting up the Shape of an
Object. Picture Shape, , VFTA, , Border Color, Pattern, FG Color,
BG Color
External Label Check this option if you want the multi-state switch to have an external label. Set up the
external label in the External Label page.
Continued
