CHAPTER 4 DESIGNING SCREENS
4.1.13.2. Cell Settings

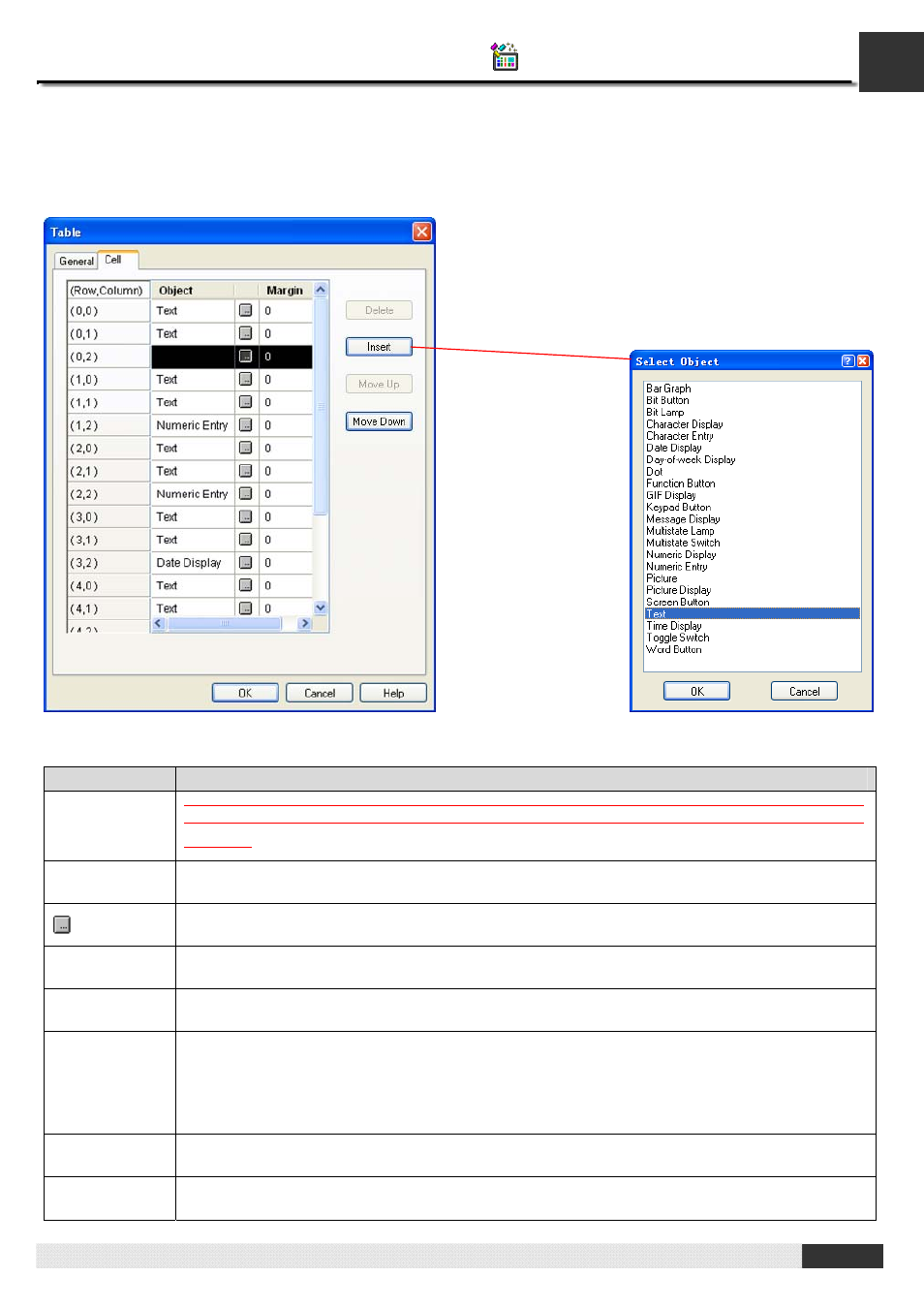

The following is an example of the Cell page of the Table Object dialog box and Select Object Dialog box when the Insert
Button is clicked.
The following table describes each property in the Cell page of the Table dialog box. To make the buttons available, you
need to select a row. To select a row, left-click the (Row, Column) column.
Property Description
(Row,Column) The location of the cell. It is generated when the object is created and is unchangeable. The
identifier is unique within the screen where the object is on. The format of the ID’s for the tables is
TBLnnnn.
以橫向行數及縱向列數定義格子在表格中的位置。
Object The type of the specified object. If the field is empty, the cell has no object inserted and it is called
empty cell.
Click the button to bring up the properties dialog box of the specified object and define the settings
of the object for the selected cell. The button is available when the Object field is not empty.
Margin The distance in pixels between the object boundary and the cell border. Select a number between 0
and 10.
Delete Click the button to clear the contents of the selected cell. The button is available when the selected
cell is non-empty.
Insert Click the button to bring up the Select Object Dialog Box shown above. And select an object type
listing in the dialog to create a new object for the selected cell. The button is available when the
selected cell is empty.
Note: The table won’t allow to insert the type of an object which is not listed in the dialog.
Move Up Click the button to move the selected cell before the previous cell. It will not be available when
multiple rows are selected or no row is selected or the first row is selected.
Move Down Click the button to move the selected cell after the next cell. It will not be available when multiple
rows are selected or no row is selected or the last row is selected.
Click the button to
bring up the dialog.
