PM Designer Operation Manual
3-11
CHAPTER 3 CREATING PANEL APPLICATIONS
3.2.3. Key Usage Table Settings
The key usage table is located in the Keys page of General Setup property sheet or Screen Properties property sheet. It
lists all the keys of the target panel and their default usages. The Keys page is only shown up when the target panel is key
type.
The following table lists key type panels and their available keys.
Model Available Keys
PV037-LSK
PV037V-LSK
PL037-LSK Provides UP,DOWN F1~F4 by default;
Provides UP,DOWN,F1~F6,K20~K37 if using external keypad;
Provides ESC-key to double the number of above keys.
PV057-LSK / PV057V-LSK / PL057-LSK
PV057-TSK / PV057V-TSK / PL057-TSK Provides UP,DOWN,F1~F6,K20~K37
Provides ESC-key to double the number of above keys.
PV070-WST Provides F1~F6
PanelExpress Provides F1~F12

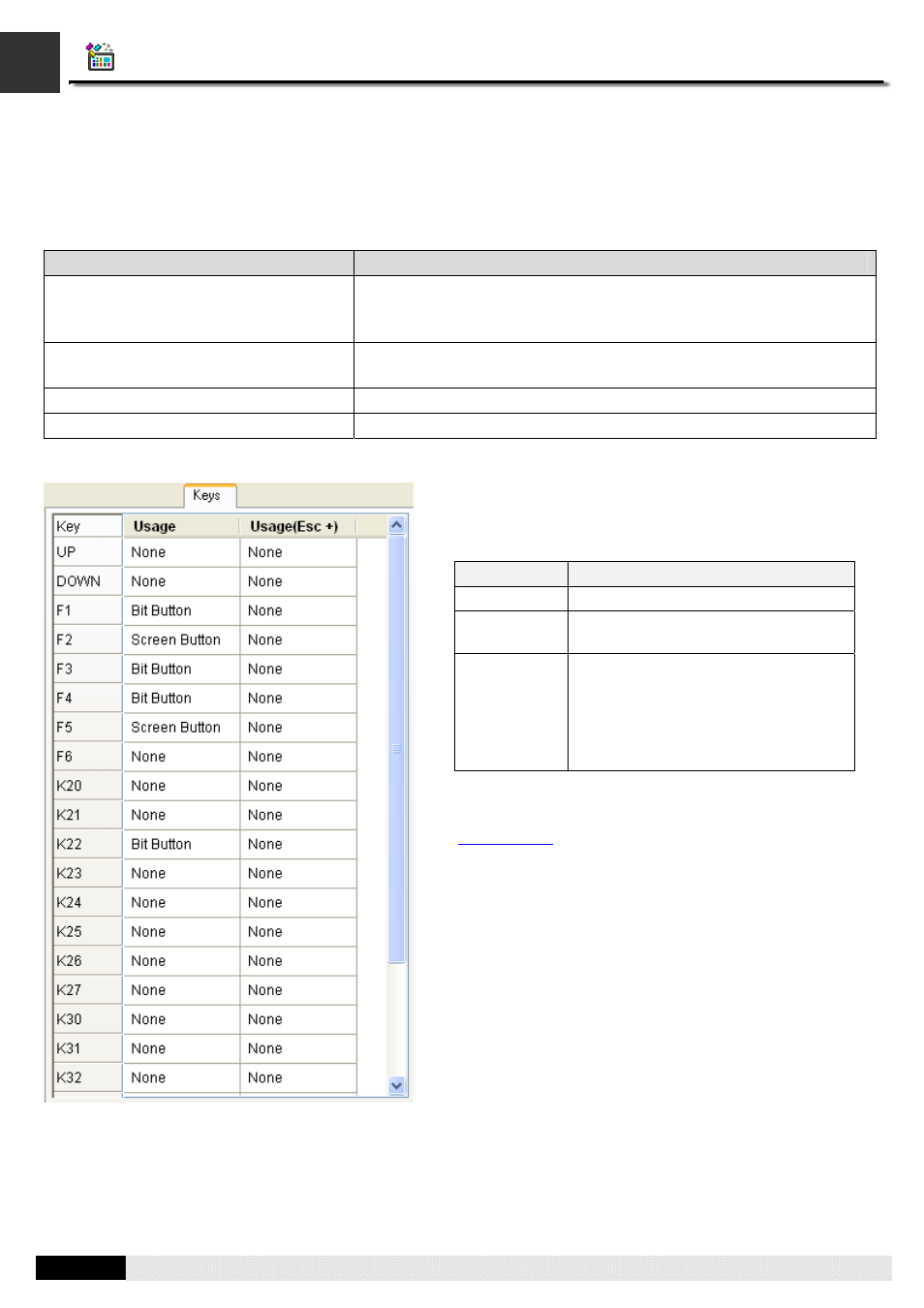

The following is an example of key usage table in the Keys page.
There are three columns in the key usage table. The
following table describes each column.
Column Description
Key Available keys of the target panel.
Usage Displays how the key will be used
when it is pressed.
Usage(Esc+) Displays how the key combination
(ESC+Key) will be used when it is
pressed.
This column exists only when the
target panel supports the key
combination.
Note: Left-click the cell will bring up the Usage Setup
Dialog which is used to set up the usage of the selected
cell. For details about Usage Setup Dialog, please see
Section 3.2.4.
