PM Designer Operation Manual
7-5
CHAPTER 7 DISPLAYING AND INPUTTING DATA
7.1.4. Advanced Settings for Numeric Entries

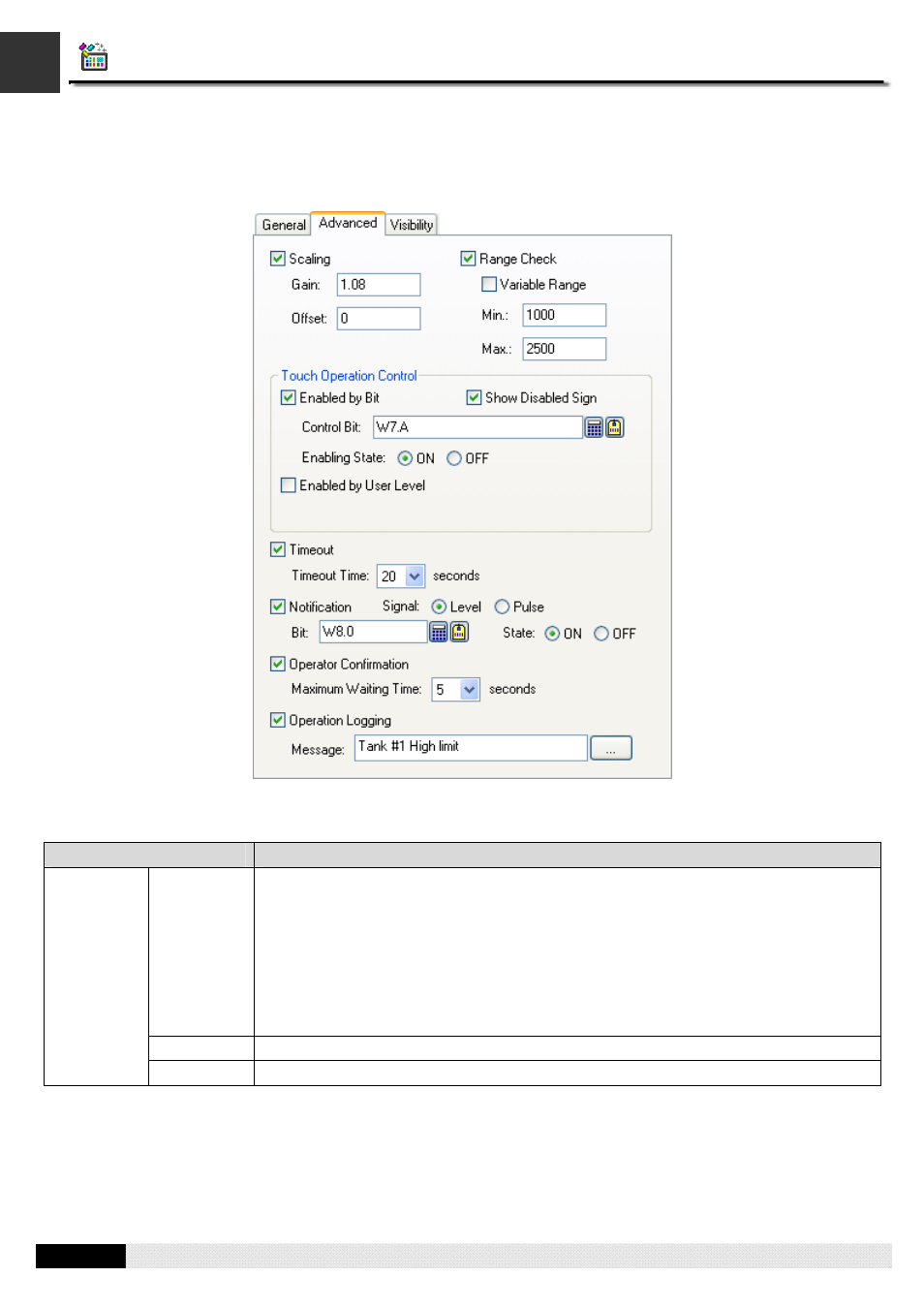

This section describes how to define the advanced settings for the numeric entries. The following is an example of the
Advanced page of the Numeric Entry property sheet.
The following table describes each property in the Advanced page.
Property Description
Scaling Check this option if you want the value of the monitored variable to be displayed in a
scaled manner. The following is the scaling formula.
DisplayedValue = MonitoredValue * Gain + Offset
If this option is selected, the entered value will be scaled by the following formula with
the same coefficients (Gain and Offset) before it is output.
OutputValue = (EnteredValue – Offset) / Gain
Note: The Gain and Offset are 32-bit floating point numbers. They have at most 6
significant digits. The rounding and truncation errors may happen.
Gain The Gain of the scaling formulas.
Scaling
Offset The Offset of the scaling formulas.
