PM Designer Operation Manual
1-12
CHAPTER 1 INTRODUCTION

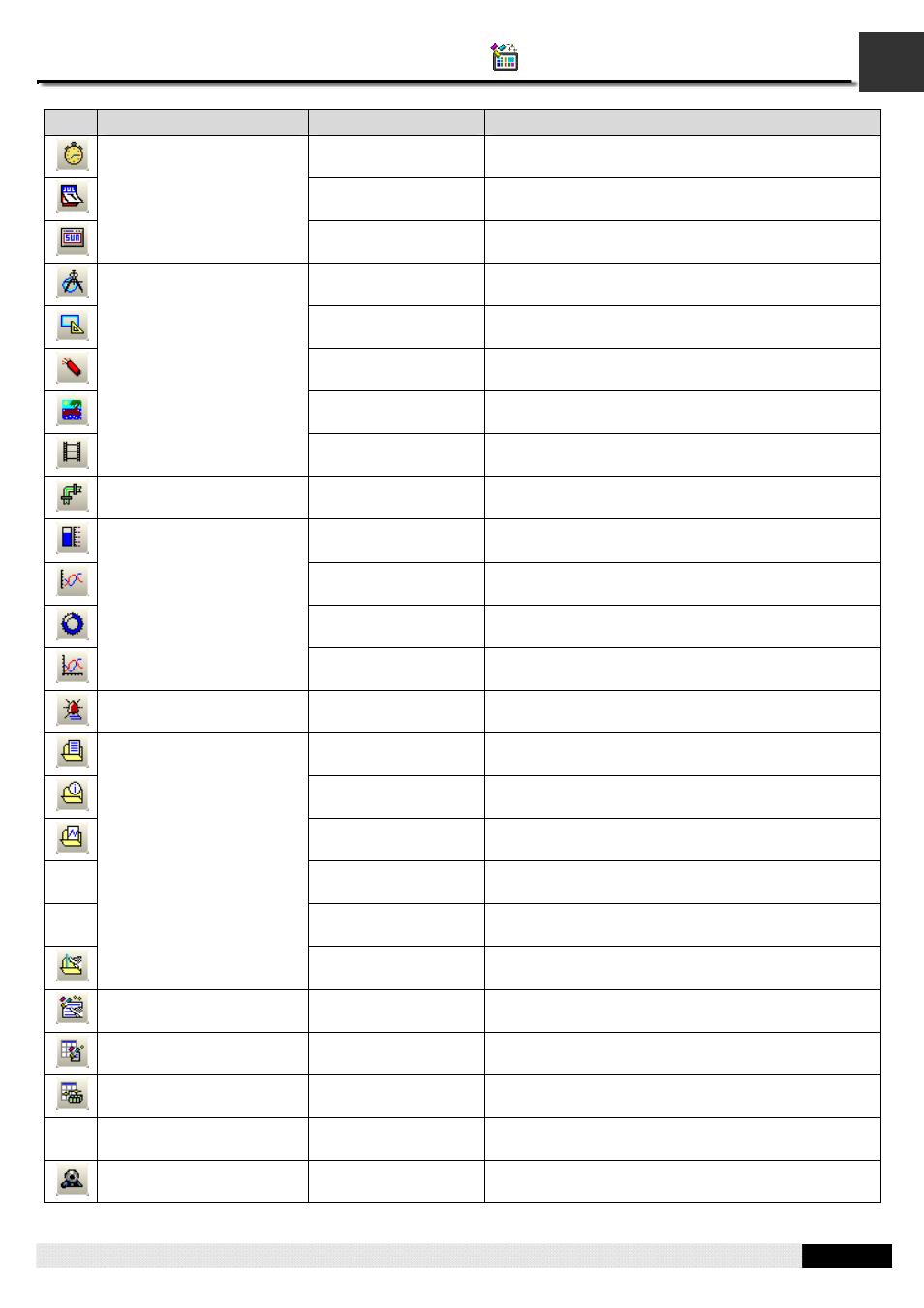

Icon Menu Item Popup Menu Item Description
Time Display
Get ready to place a copy of the default time display on
a screen.
Date Display
Get ready to place a copy of the default date display
on a screen.
Time/Date
Day-of-week Display
Get ready to place a copy of the default day-of-week
display on a screen.
Dynamic Circle
Get ready to place a copy of the default dynamic circle
on a screen.
Dynamic Rectangle
Get ready to place a copy of the default dynamic
rectangle on a screen.
GIF Display
Get ready to place a copy of the default GIF display on
a screen.
Picture Display
Get ready to place a copy of the default picture display
on a screen.
Dynamic Graphic
Animated Graphic
Get ready to place a copy of the default animated
graphic on a screen.
Pipeline
Get ready to place a copy of the default pipeline on a
screen.
Bar Graph
Get ready to place a copy of the default bar graph on a
screen.
Line Chart
Get ready to place a copy of the default line chart on a
screen.
Circular Bar Graph
Get ready to place a copy of the default circular bar
graph on a screen.
Graph/Chart
Scatter Chart
Get ready to place a copy of the default scatter chart
on a screen.
Alarm Display
Get ready to place a copy of the default alarm display
on a screen.
Historic Data Table
Get ready to place a copy of the default historic data
table on a screen.
Historic Event Table
Get ready to place a copy of the default historic event
table on a screen.
Historic Trend Graph
Get ready to place a copy of the default historic trend
graph on a screen.
Single Record Data
Table Get ready to place a copy of the default single record
data table on a screen.
Single Record Line
Chart Get ready to place a copy of the default single record
line chart on a screen.
Historic Display
Operation Log Display
Get ready to place a copy of the default operation log
display on a screen.
Recipe Selector
Get ready to place a copy of the default recipe selector
on a screen.
Recipe Table
Get ready to place a copy of the default recipe table on
a screen.
Sublink Table
Get ready to place a copy of the default sublink Table
on a screen.
Global Object Container
Get ready to place a copy of the default global object
container on a screen.
USB Camera View
Get ready to place a copy of the default USB camera
view on a screen.
