PM Designer Operation Manual
5-33
CHAPTER 5 BUTTONS AND SWITCHES
5.8.4. General Settings

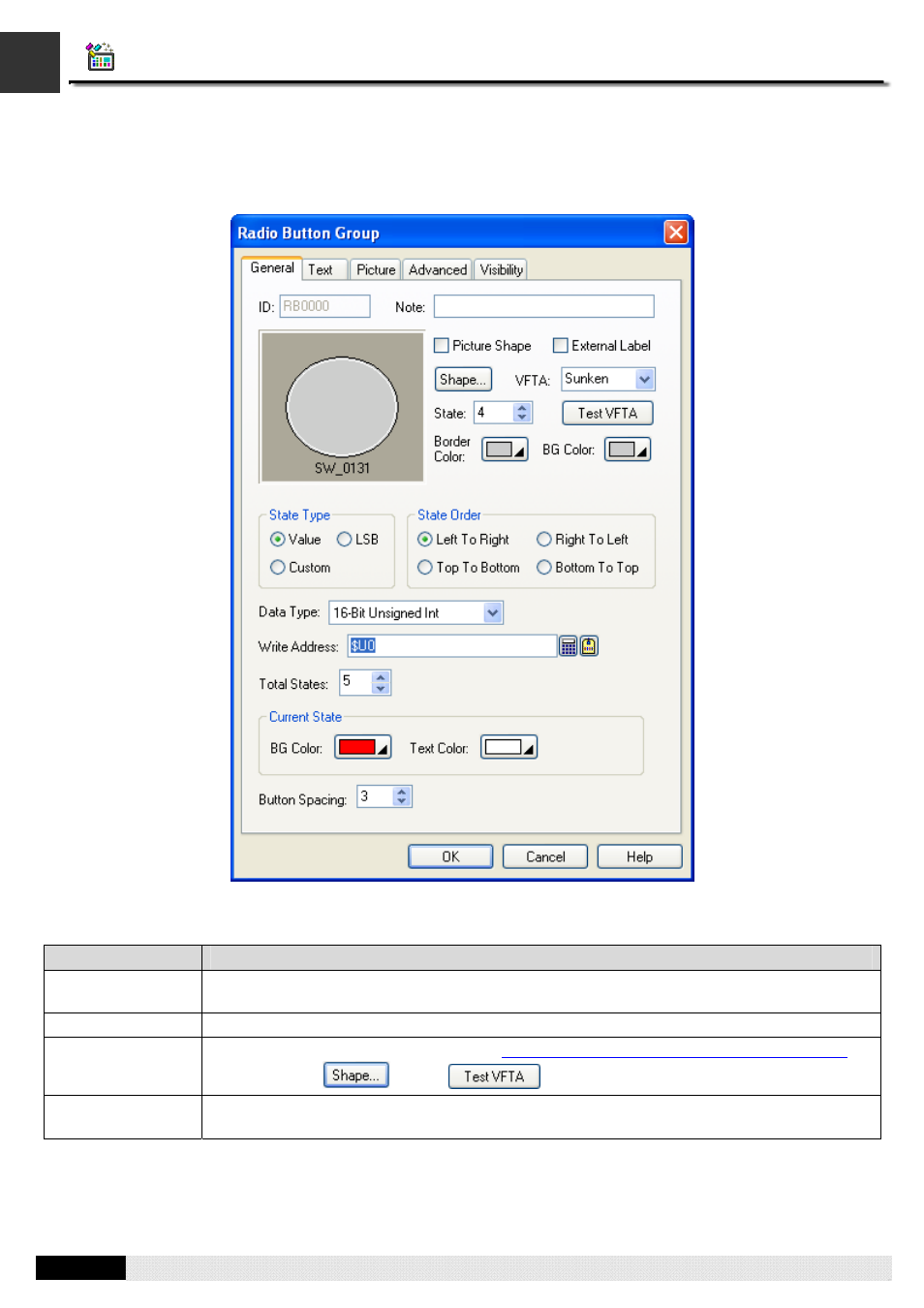

This section describes how to define the general settings for a radio button group. The following is an example of the
General page of the Radio Button Group property sheet.
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created. The identifier is unique within
the screen where the object is on. The format of the ID’s for radio button groups is RBnnnn.
Note You can type a note for the radio button group.
Shape settings For details about the following properties, Section 4.3.1.4 Setting up the Shape of an Object.
Picture Shape, , VFTA, , Border Color, BG Color
External Label Check this option if you want the radio button group to have an external label. Set up the
external label in the External Label page.
Continued
