PM Designer Operation Manual
4-52
CHAPTER 4 DESIGNING SCREENS
4.3.2. Scale Settings
This section describes how to set up the scale for the following types of objects:
Slide Switch, Bar Graph, Circular Bar Graph, and Meter.

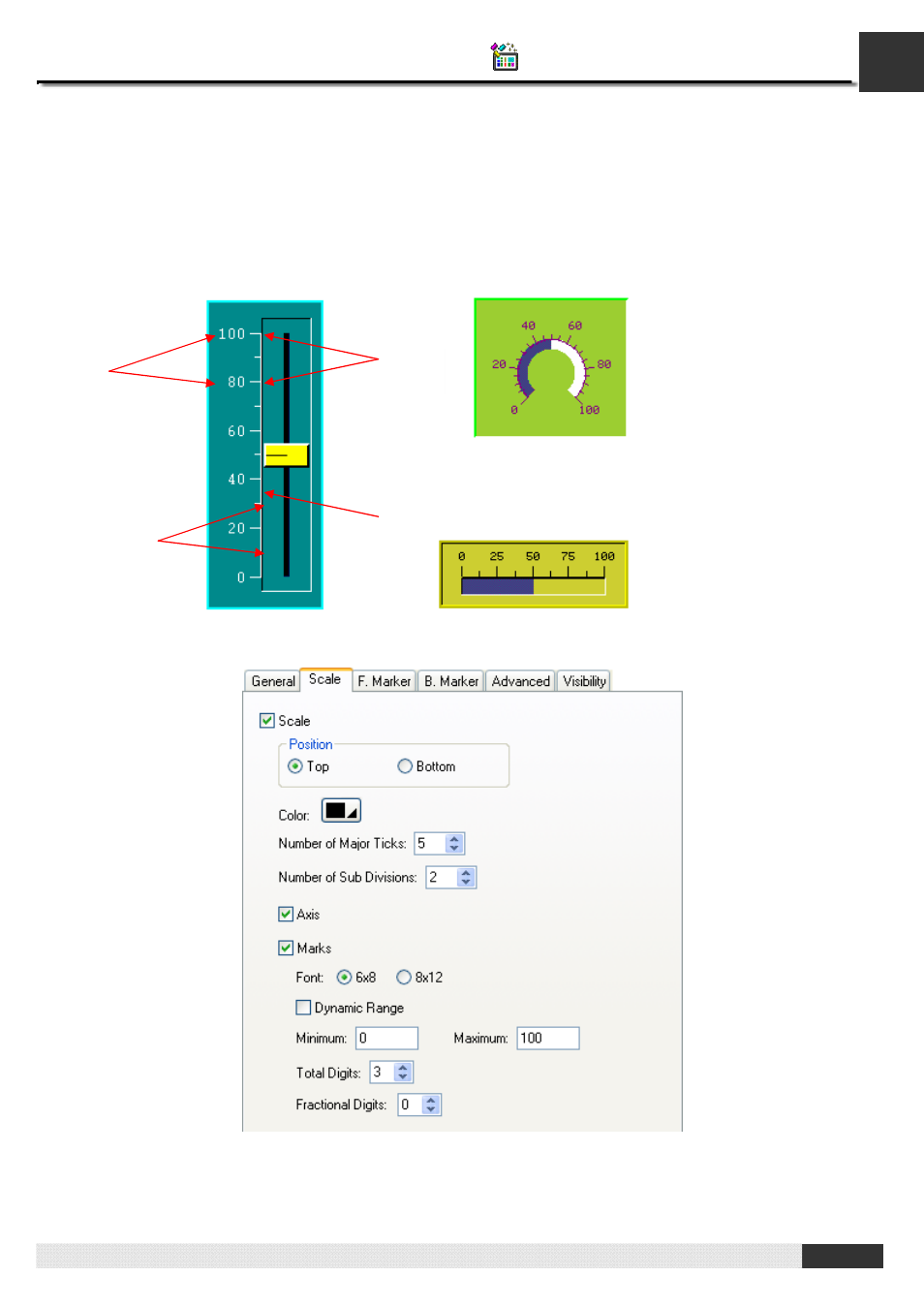

The following are examples of scales used in different kinds of objects.
You can use the Scale page in an object's property sheet to set up the scale of that object. The following is an example of
the Scale page.
Major
ticks
Minor
ticks
Axis
Marks
