CHAPTER 12 DATA COLLECTION AND HISTORIC DISPLAYS
12.4.4. General Settings

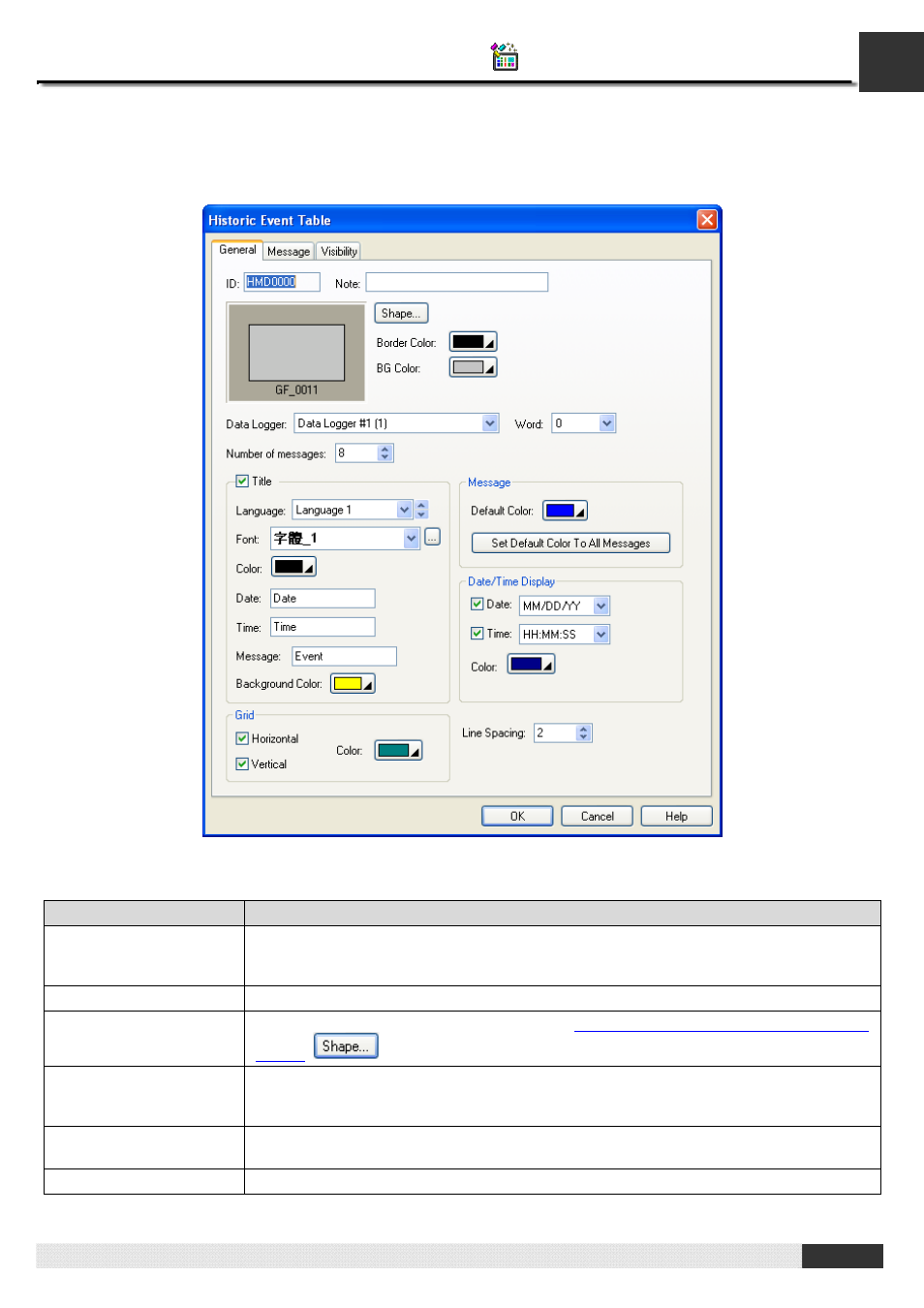

This section describes how to define the general settings for a historic event table. The following is an example of the
General page.
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created and is unchangeable.
The identifier is unique within the screen where the object is on. The format of the ID’s for
the historic event tables is HMDnnnn.
Note You can type a note for the object.
Shape settings For details about the following properties, see Section 4.3.1.4 Setting up the Shape of an
Object. , Border Color, BG Color
Data Logger Specifies the associated data logger. The object will take a specified word in each of the
data records collected by the data logger as the event number and displays a
corresponding message for that number.
Word Specifies the number of the word in each of the data records that stores the event
number.
Number of messages Specifies the number of event messages.
Continued
