4
PM Designer Operation Manual
4-8
CHAPTER 4 DESIGNING SCREENS
4.1.4. Drawing Rectangles
1. In the Draw menu or Draw toolbar, click Rectangle to draw a normal rectangle. You can also click Round
Rectangle to draw a round rectangle or click Clipped Rectangle to draw a clipped rectangle.
2. Move the cursor onto the screen where you want to draw a rectangle. A rectangle with default settings will
display and move along with the cursor.
3. Click the desired position on the screen to place the rectangle. The upper-left corner of the rectangle will be at
the clicked position.
4. Drag one handle of the rectangle at a time to resize the rectangle.
5. Double-click the rectangle to bring up the Rectangle dialog box and then modify the settings of the rectangle.

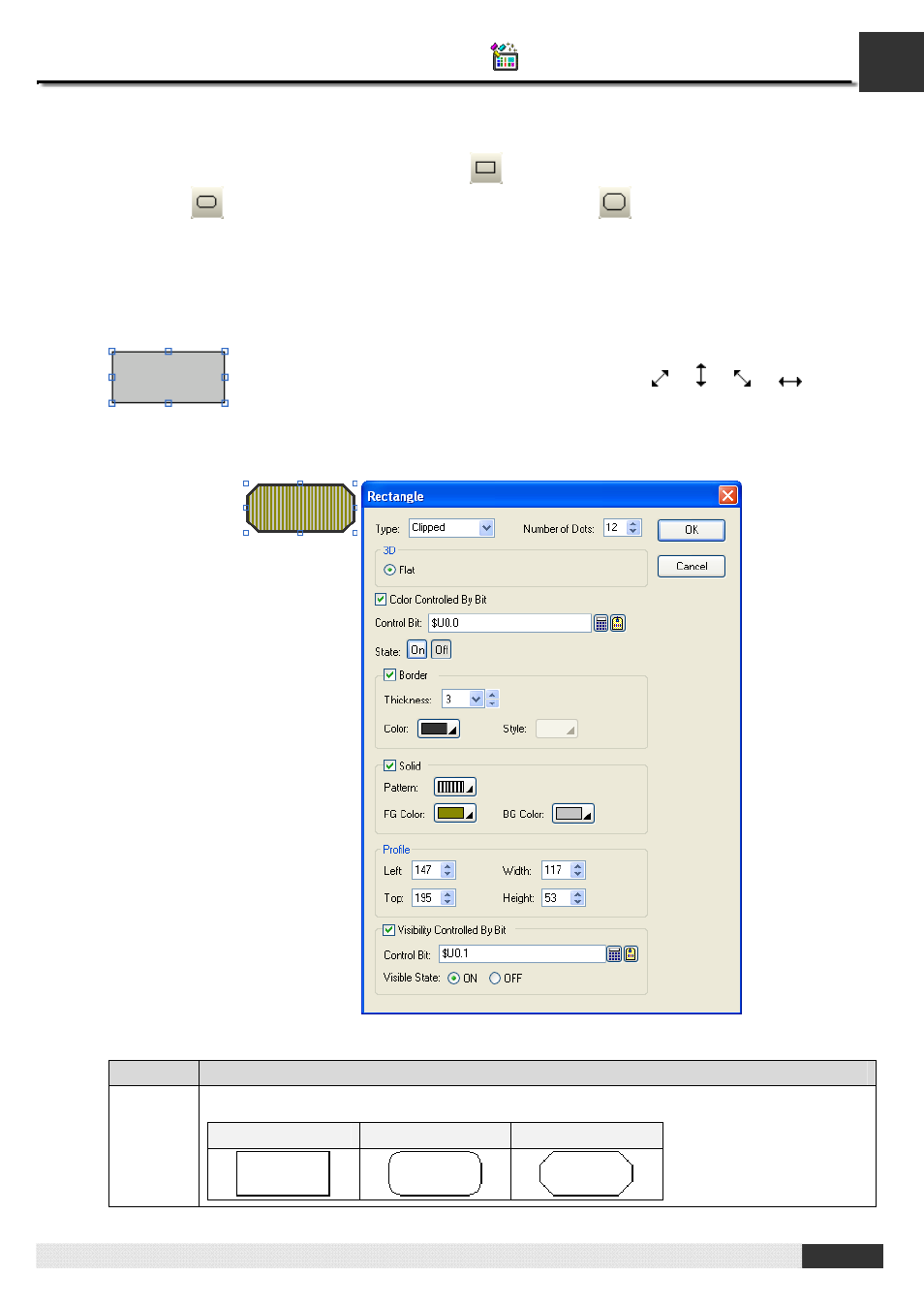

The following is a sample of Rectangle dialog box.
The following table describes each property in the Rectangle dialog box.
Property Description
Type
Specifies the type of the rectangle. There are three types: Normal, Round, or Clipped.
Normal Round Clipped
Continued
The picture on the left shows the eight handles of a rectangle. Position the mouse pointer
over one of the handles. When the cursor turns to be or or or , drag the
handle until the rectangle is the shape and size you want.
