PM Designer Operation Manual
8-27
8.5. Scatter Charts
8.5.1. Basic Operations

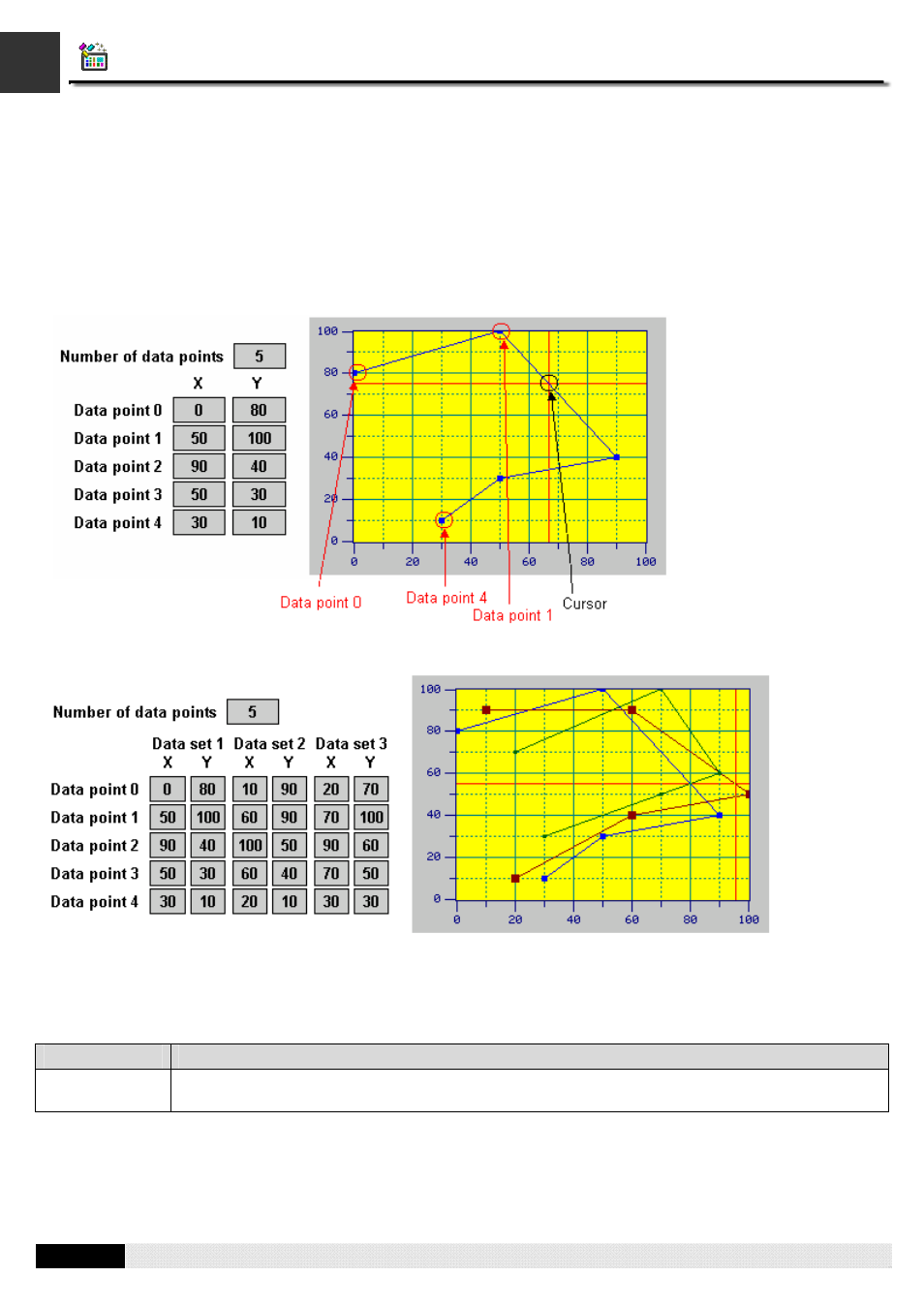

A scatter chart displays a set of data by drawing a data point for each datum and drawing a line that connects all the data
points in sequence. Each datum is a coordinate that contains an X value and a Y value. The vertical position of a data point
is determined by the X value of the associated datum. The horizontal position of a data point is determined by the Y value
of the associated datum.
A scatter chart can display up to 8 sets of data. The following example shows a scatter chart that displays 3 sets of data.
8.5.2. Operation Options
The following operation option can be added to a scatter chart. Select and set the option in the Scatter Chart dialog box.
Options Description
Visibility Control You can show and hide a scatter chart by a specified bit or the current user level. Select and set this
option in the Visibility page.
CHAPTER 8 GRAPHS AND CHARTS
