CHAPTER 7 DISPLAYING AND INPUTTING DATA
7.2.3. General Settings

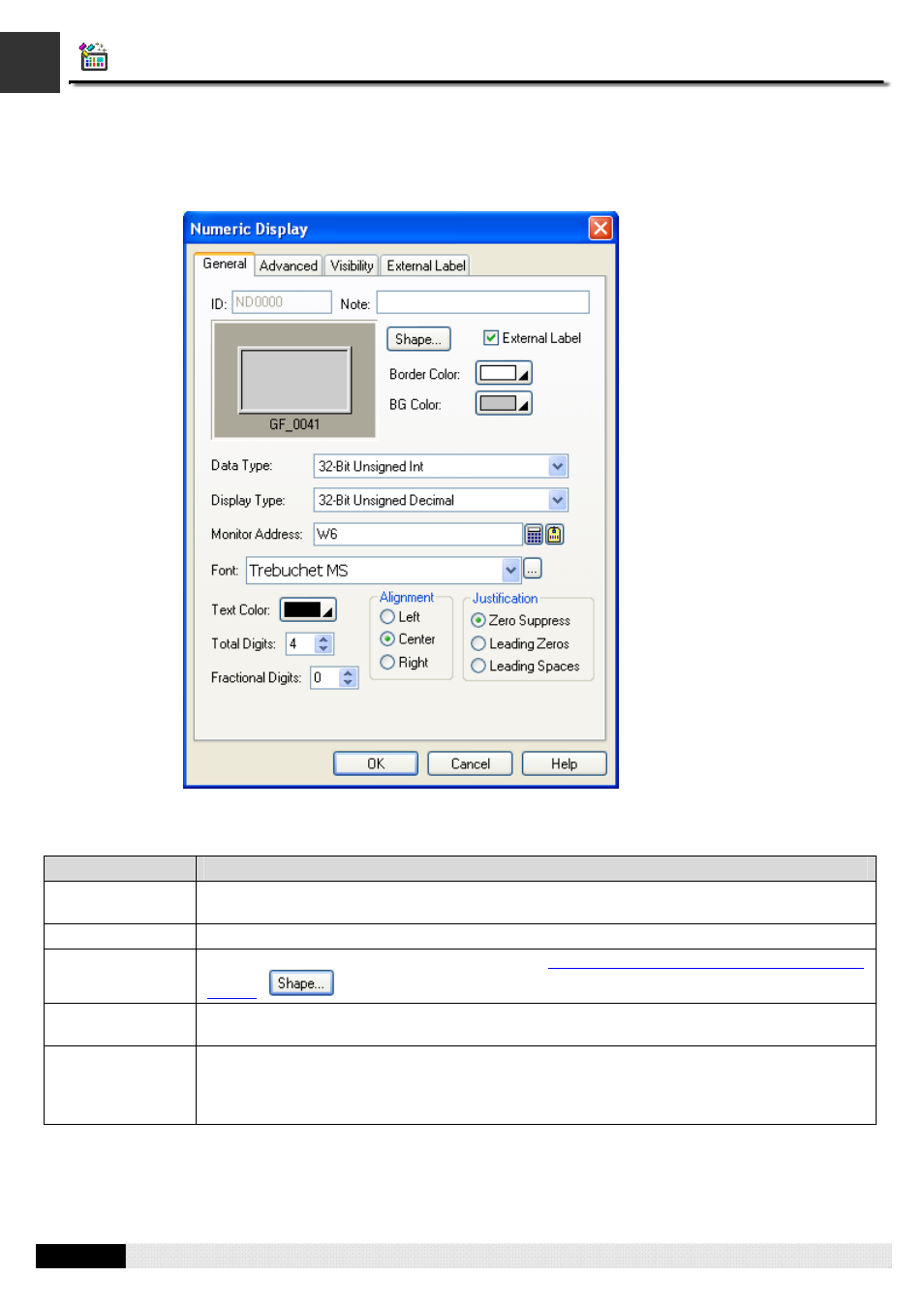

This section describes how to define the general settings for a numeric display. The following is an example of the General
page of the Numeric Display property sheet.
figure wrong_old
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created. The identifier is unique within
the screen where the object is on. The format of the ID’s for the numeric displays is NDnnnn.
Note You can type a note for the object.
Shape settings For details about the following properties, see Section 4.3.1.4 Setting up the Shape of an
Object. . , Border Color, BG Color
External Label Check this option if you want the object to have an external label. Set up the external label in the
External Label page.
Data Type The data type of the monitored variable. The supported data types include: 16-Bit Unsigned
Integer, 32-Bit Unsigned Integer, 16-Bit Signed Integer, 32-Bit Signed Integer, 16-Bit BCD, 32-Bit
BCD, 32-Bit Floating Point, 16-Bit Signed BCD (LMB), 32-Bit Signed BCD (LMB), 16-Bit Signed
BCD (LMD), and 32-Bit Signed BCD (LMD).
Continued
