PM Designer Operation Manual
4-1
CHAPTER 4 DESIGNING SCREENS
4.1. Drawing Basic Shapes
PM Designer provides a drawing tool you can use to create simple or elaborate drawing shapes such as lines, rectangles,
circles, arcs etc.
To create a drawing shape, click the shape on the Draw Toolbar (See
Section 1.3.2.3 Draw Toolbar for details), or use the
command on the Draw menu (See Section 1.3.1.3 Draw menu for details) and then move the mouse to the position you
want to place the shape and click the left button. To set up a drawing shape, double-click the shape to bring up the
corresponding properties dialog that you can set up the color and style of the line/outlined, pattern, FG/BG Color…of the
shape.

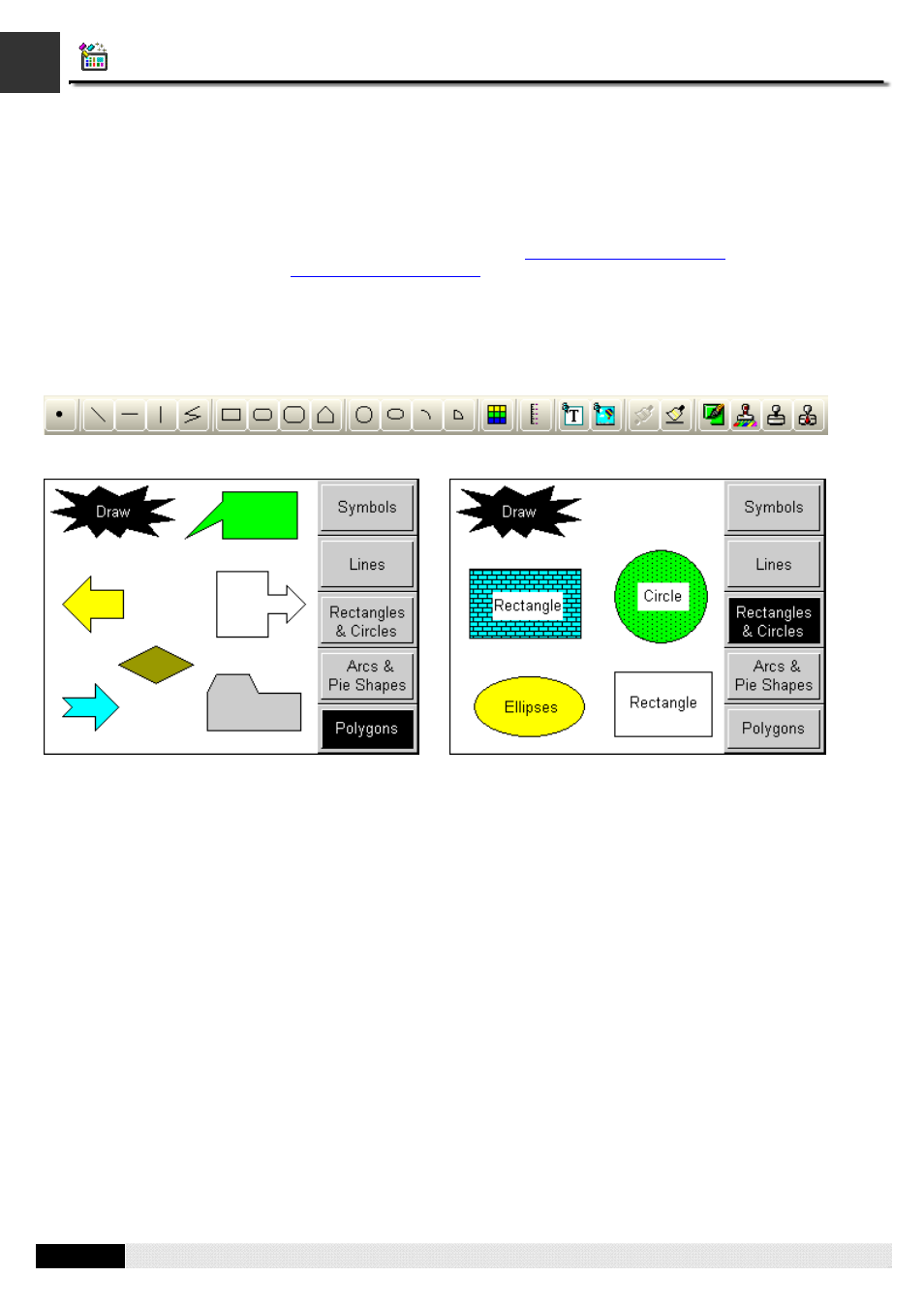

Note: If you don’t see the Draw Toolbar as below in the lower left corner of the program window, please click Draw Toolbar
command on the View menu.
The following is a sample of the basic shapes:
