PM Designer Operation Manual
12-25
CHAPTER 12 DATA COLLECTION AND HISTORIC DISPLAYS

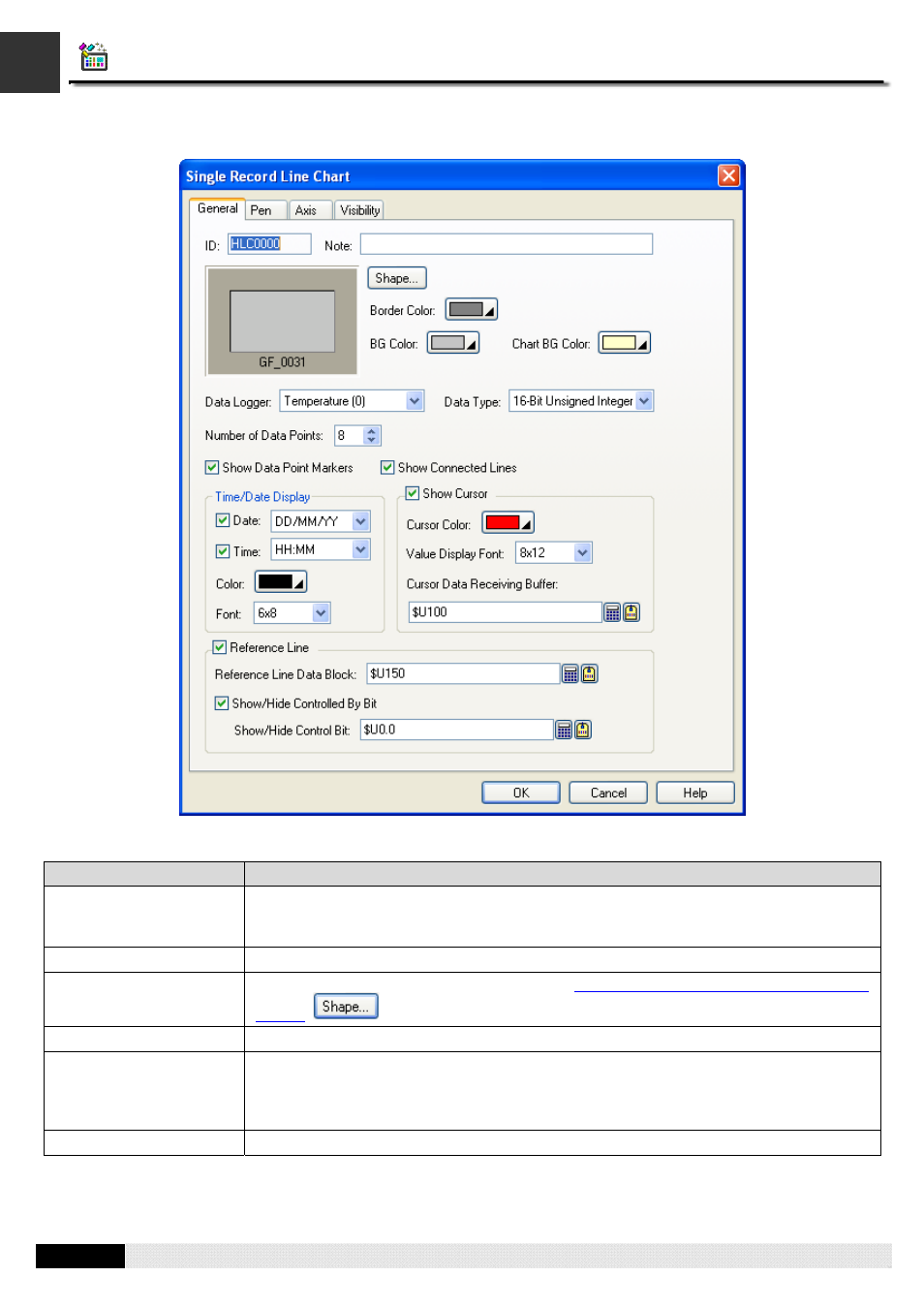

12.5.4. General Settings
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created and is unchangeable.
The identifier is unique within the screen where the object is on. The format of the ID’s for
the Single Record Line Charts is HLCnnnn.
Note You can type a note for the object.
Shape settings For details about the following properties, see Section 4.3.1.4 Setting up the Shape of an
Object. , Border Color, BG Color
Data Logger Specifies the associated data logger.
Data Type The data type of the data logger. The supported data types include: 16-Bit Unsigned
Integer, 32-Bit Unsigned Integer, 16-Bit Signed Integer, 32-Bit Signed Integer, 16-Bit BCD,
32-Bit BCD, 32-Bit Floating Point, 16-Bit Signed BCD (LMB), 32-Bit Signed BCD (LMB),
16-Bit Signed BCD (LMD), and 32-Bit Signed BCD (LMD).
Number of Data Points Specifies the number of data points.
Continued
