CHAPTER 12 DATA COLLECTION AND HISTORIC DISPLAYS
12.1.3. Data Item Settings

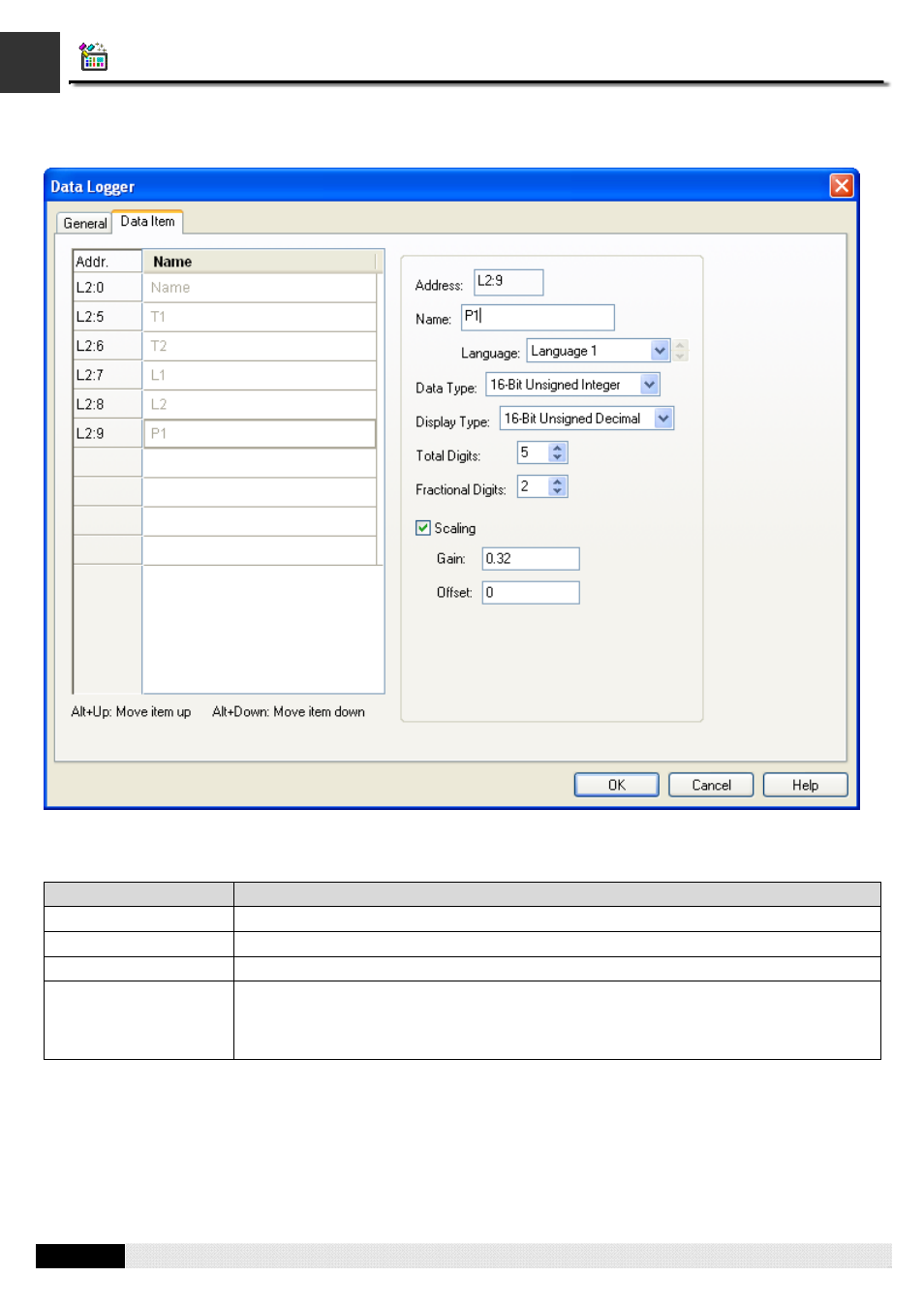

Use the Data Item page to define the data items of the sampled data for a data logger. The following is an example of the
Data Item page.
The Data Item page contains two parts. The left part is the data item list that shows the address and name of each data
item in a row. The right part shows the properties of the selected data item. To select a data item, click the row of that data
item in the data item list. The following table describes each property of the data item.
Property Description
Address You can use the address shown here to refer to the latest sampled value of the data item.
Name Specifies the name of the data item for the language specified in the Language field.
Language Select a language so you can view and edit the name of the data item for that language.
Data Type The data type of the data item. The supported data types include: 16-Bit Unsigned Integer,
32-Bit Unsigned Integer, 16-Bit Signed Integer, 32-Bit Signed Integer, 16-Bit BCD, 32-Bit
BCD, 32-Bit Floating Point, ASCII String, and Unicode String. Note that Unicode String is
supported for PanelExpress only.
Continued
