PM Designer Operation Manual
8-33
8.5.5. Pen Settings

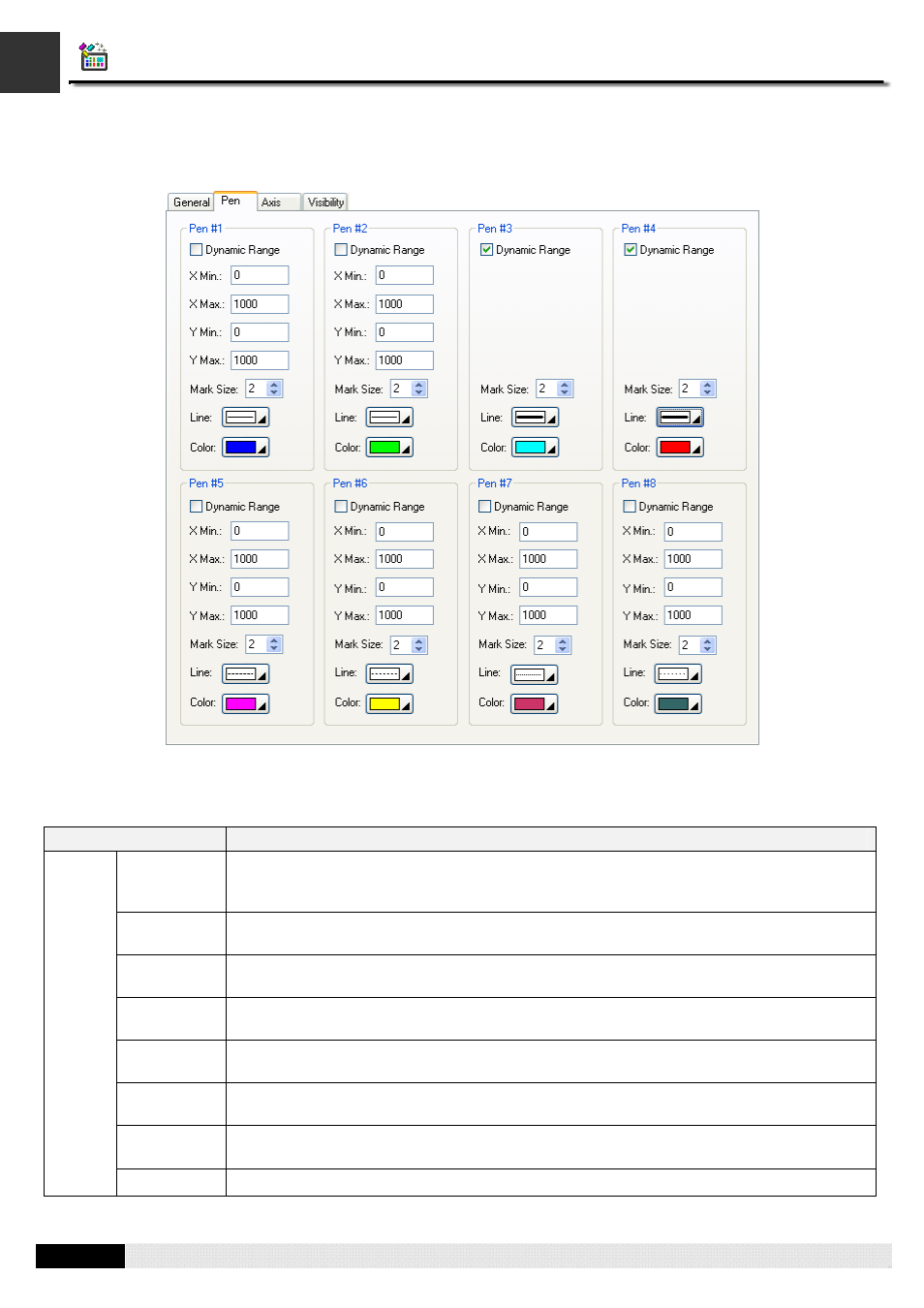

This section describes how to define the pens for the scatter charts. The following is an example of the Pen page.
The following table describes each property in the Pen page. Note that pen #1 is for data set 1; pen #2 is for data set 2;
and so on.
Property Description
Dynamic
Range Check this option so the minimum and the maximum for the X and Y values of the
associated data set will be specified at runtime. This option is available when the Dynamic
Range option in the General page is selected.
X Min. The X minimum of the associated data set. This property is available when the Dynamic
Range option is not selected.
X Max. The X maximum of the data value of the associated data set. This property is available
when the Dynamic Range option is not selected.
Y Min. The Y minimum of the associated data set. This property is available when the Dynamic
Range option is not selected.
Y Max. The Y minimum of the associated data set. This property is available when the Dynamic
Range option is not selected.
Mark Size Select a size for the data point mark. The selection is valid when the Show Mark option in
the General page is selected.
Line Style Select a style for the connecting lines. The selection is valid when the Show Line option in
the General page is selected.
Pen #1
~ Pen
#8
Color Select a color for the connecting lines.
CHAPTER 8 GRAPHS AND CHARTS
