B&B Electronics EIRSP1 - Datasheet - Manual

p/n 8440 EIRSP1-0812ds page 1/1
©2009 B&B Electronics. All rights reserved
www.bb-elec.com [email protected] [email protected]
International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
PRODU
CT INFO
RMATI
O
N
B&B E
LECTR
ON
ICS
Specifications
Ethernet Connection RJ-45
Lines Protected All 8
Protocols 802.11af (Modes A&B)
Speed 10/100 BaseT
Clamping Voltage 60 V
Peak Pulse Power 600 W
Peak Surge Current 1000 Amps
Capacitance <50 pF
Response Time <5 nS
Operating Temperature -40 to 176 F (-40 to 80 C)
Storage Temperature -40 to 185 F (-40 to 85 C)
Operating Humidity 0 to 95% Non-condensing
Enclosure Plastic, IP 30 DIN Rail Case

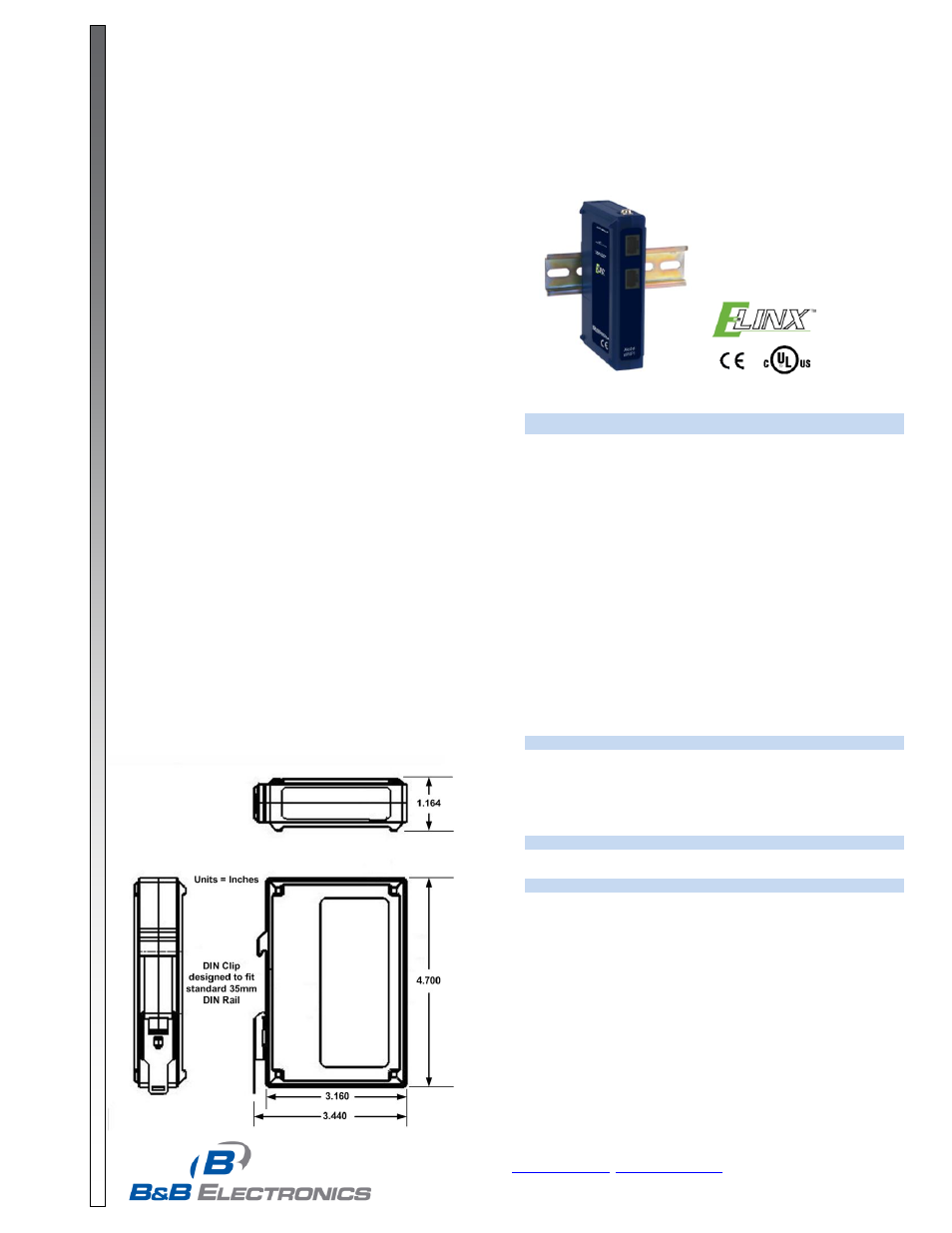

Dimensions 1.2x4.7x3.4 in (3.0 x11.9 x8.6 cm)
MTBF 131960 Hours
MTBF Calculation Method Parts Count Reliability Prediction
Compliance CE, FCC, UL
UL File Number E222870
CE / FCC DoC available
for download.
RoHS Yes
Wiring
Wire Type Copper Wire Only
One conductor per terminal
Wire Range 14 to 22 AWG
Tightening Torque 1.7 lb-in
Wire Temperature Rating 105 C minimum (sized for
60 C ampacity)
Ordering Information
EIRSP1 Industrial Ethernet Surge
Protector
Accessories
DRPM25 Panel Mount Adapter
EIRSP1
Industrial Ethernet Surge Protector
 Space Saving IP30 Din Rail Enclosure
 Protects all Eight CAT 5 Lines
 Power Over Ethernet Compatible
The Elinx™ EIRSP1 Industrial Ethernet Surge
Protector is designed to protect all eight lines used
in a standard CAT5e Ethernet cable. It is compatible
with 10/100BaseT networks and 802.11af (Modes A
& B) Power Over Ethernet. Mode A applies power to
the data pairs, pins 1/2 and 3/6. Mode B applies
power to the unused pairs, pins 4/5 and 7/8.
Network connections are made using RJ-45
connectors. Grounding is accomplished using a
ground lug which accepts 14 to 22 AWG wire.
Stranded or braided cable is recommended with a
three foot maximum run to Earth Ground.
