CHAPTER 9 ANIMATED OBJECTS
9.2.3. General Settings

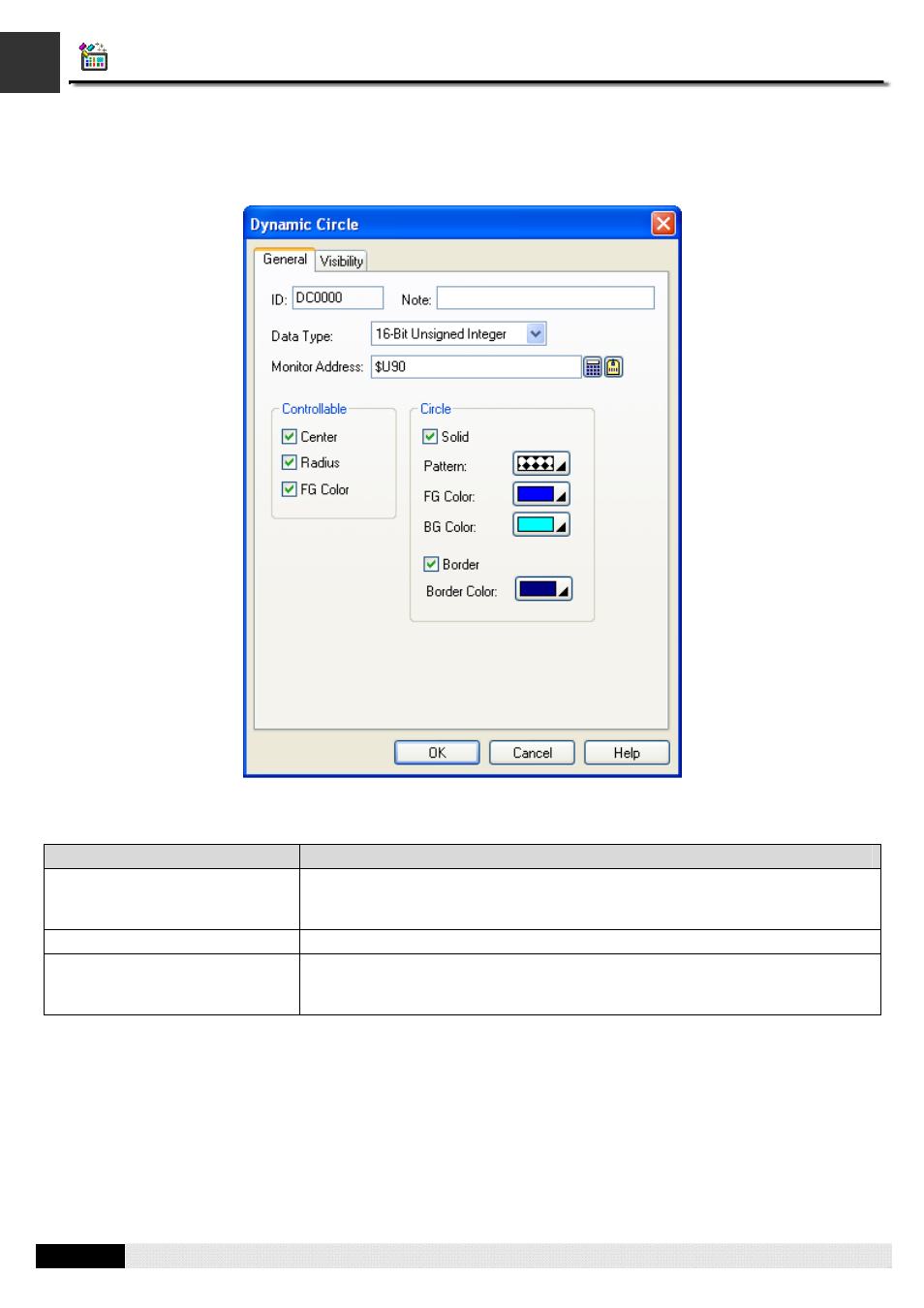

This section describes how to define the general settings for the dynamic circles. The following is an example of the
General page of the Dynamic Circle property sheet.
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created. The identifier is
unique within the screen where the object is on. The format of the ID’s for the
dynamic circles is DCnnnn.
Note You can type a note for the object.
Data Type The data type of the variable that controls the dynamic circle. The supported data
types include: 16-Bit Unsigned Integer, 32-Bit Unsigned Integer, 16-Bit Signed
Integer, 32-Bit Signed Integer, 16-Bit BCD, and 32-Bit BCD.
Continued
