4
PM Designer Operation Manual
4-6
CHAPTER 4 DESIGNING SCREENS
8. Double-click the polyline to bring up the Polyline dialog box and then modify the settings of the polyline.

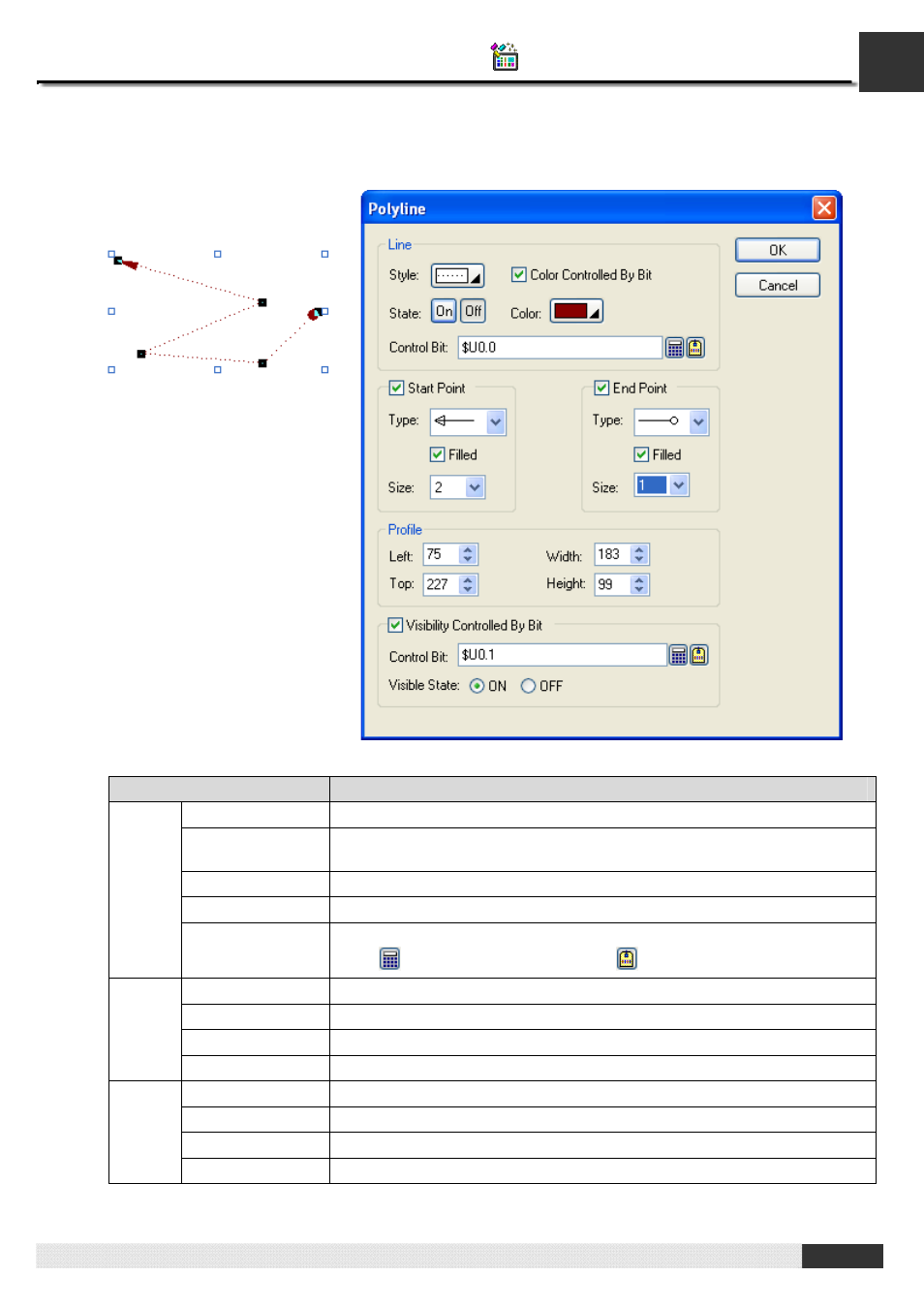

The following is a sample of Polyline dialog box.
The following table describes each property in the Polyline dialog box.
Property Description
Style Specifies the style of the polyline.
Color Controlled
By Bit Check this option if the color of the polyline will be controlled by the specified
bit.
State Select the state that you want to view or define the color for.
Color Specifies the line color for the selected state.
Line
Control Bit Specifies the bit that controls the color.
Click to enter the bit address. Click to enter the bit tag.
Start Point Select this option if you want the polyline to have a shape at the start point.
Type Specifies the shape type.
Filled Select this option if you want the shape to be filled with the line color.
Start
Point
Size Specifies the shape size.
End Point Select this option if you want the polyline to have a shape at the end point.
Type Specifies the shape type.
Filled Select this option if you want the shape to be filled with the line color.
End
Point
Size Specifies the shape size.
Continued
