PM Designer Operation Manual
3-3
CHAPTER 3 CREATING PANEL APPLICATIONS

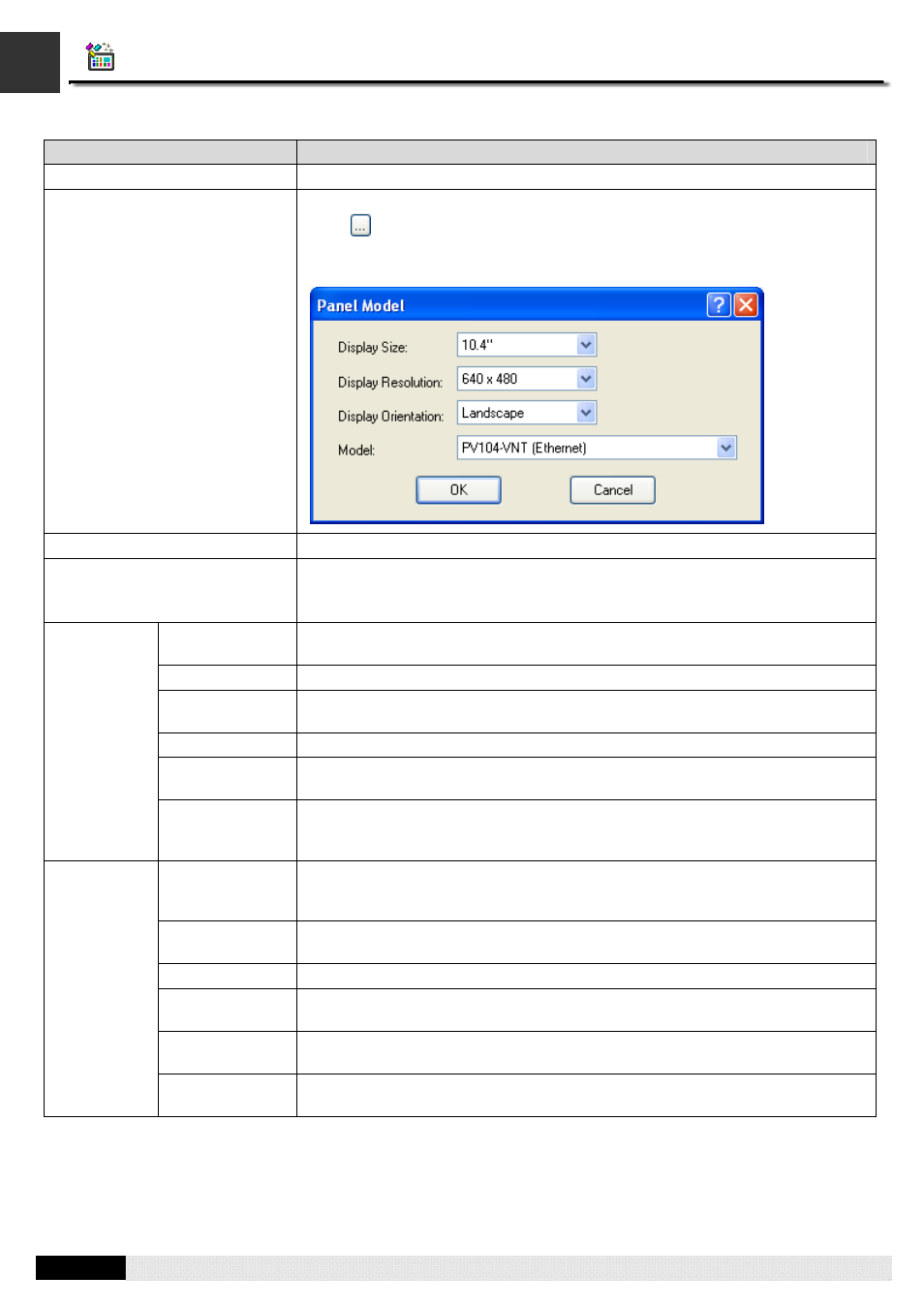

The following table describes each item in the General page.
Item Description
Application Name The name of the panel application.
Model The model of the target panel.
Click to bring up the Panel Model dialog box which helps you to select a
model by specifying the size, resolution and orientation of the display.
The following is a sample of Panel Model dialog box
Battery Backed RAM Specifies the size of the battery backed RAM installed in the target panel.
Use External Keypad Available if the target panel supports the custom designed external keypad. For
example PV037-LSK, PV037V-LSK, PL037-LSK…
Select this option if the application uses a custom designed external keypad.
Screen Specifies the first screen of the application that the target panel will display after
power up.
Delay Time Specifies the time that the target panel will delay to run the application.
Display
Countdown Check this option if you want the target panel to display countdown while it is
waiting for the expiry of the Delay Time.
Language Specifies the language that the application will display the text for after power up.
Login Required Check this option if you want the target panel to get a valid password from the
operator before it displays the first screen.
Start Up
Default User
Level Available when the Login Required is not selected. Specifies the user level as
the initial user level for the application. When the target panel starts the
application, it sets the current user level to the initial user level.
Display Idle
Screen Check this option if you want the target panel to display the Idle Screen when the
target panel has not been operated by the operator for the specified amount of
time. The specified amount of time is called the idle time.
Idle Time The amount of time that will be used to decide if the idle screen should be
displayed.
Idle Screen Specifies the screen that will be displayed as the idle screen.
Change User
Level Check this option if you want the target panel to change the current user level
when the idle screen is displayed.
Idle User Level Available when the Change User Level is selected. Specifies the user level that
will be the current user level when the idle screen is displayed.
Idle
Processing
Screen Saver
Time Specifies the screen saver time. The target panel will turn off its backlight when it
has not been operated by the operator for the specified amount of time.
Continued
