CHAPTER 9 ANIMATED OBJECTS
Property Description

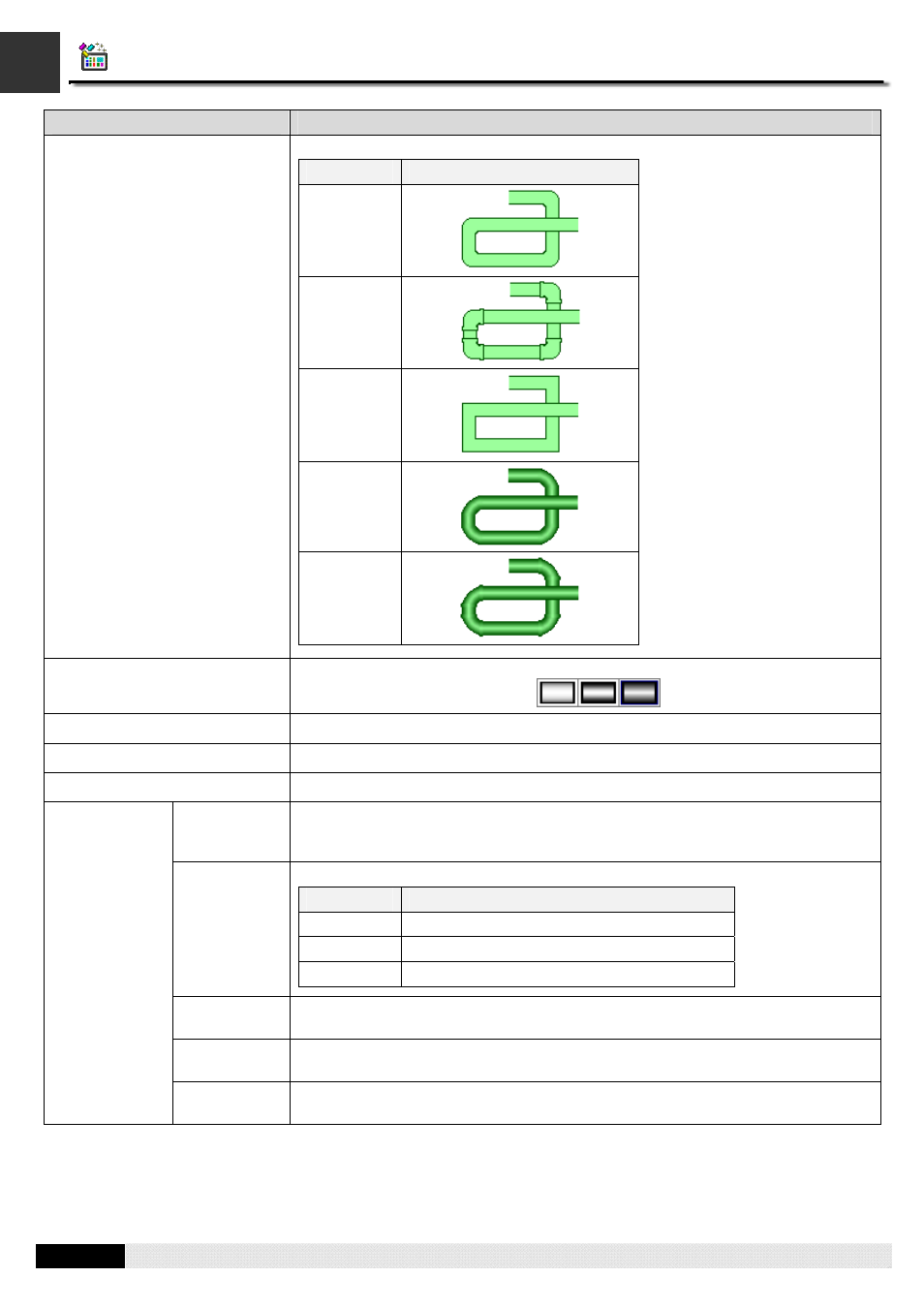

Type The type of the pipeline. There are five types available:
Type Example
2D Type 1
2D Type 2
2D Type 3
3D Type 1
3D Type 2
Shading Select a shading method when the Type is “3D Type 1” or “3D Type 2”. There are
three shading methods available:
Diameter Specifies the diameter of the pipeline.
Border Color Specifies the border color of the pipeline.
Body/Content Color Specifies the body or content color of the pipeline.
Check this option if you want to control the body/content color of the pipeline at
runtime. The variable that controls the pipeline is called the control word and is
specified in the Address field.
View Color Select a color so you can view the pipeline painted with that color.
View Color Painted With
0 Body/Content Color
1 Body/Content Color #2
2 Body/Content Color #3
Body/Content
Color #2 Select a color as the second body/content color for the pipeline. This color will be
used to paint the pipeline when bit 0 of the control word is on.
Body/Content
Color #3 Select a color as the third body/content color for the pipeline. This color will be used
to paint the pipeline when bit 1 of the control word is on.
Body/Content
Color
Changeable
Blink On/Off
Control Check this option if you want the pipeline to blink at runtime. The pipeline will blink
when bit 2 of the control word is on.
Continued
