PM Designer Operation Manual
10-11
CHAPTER 10 RECIPES AND RECIPE OBJECTS
10.6. Selecting a Recipe Using Recipe Selectors
10.6.1. Basic Operations

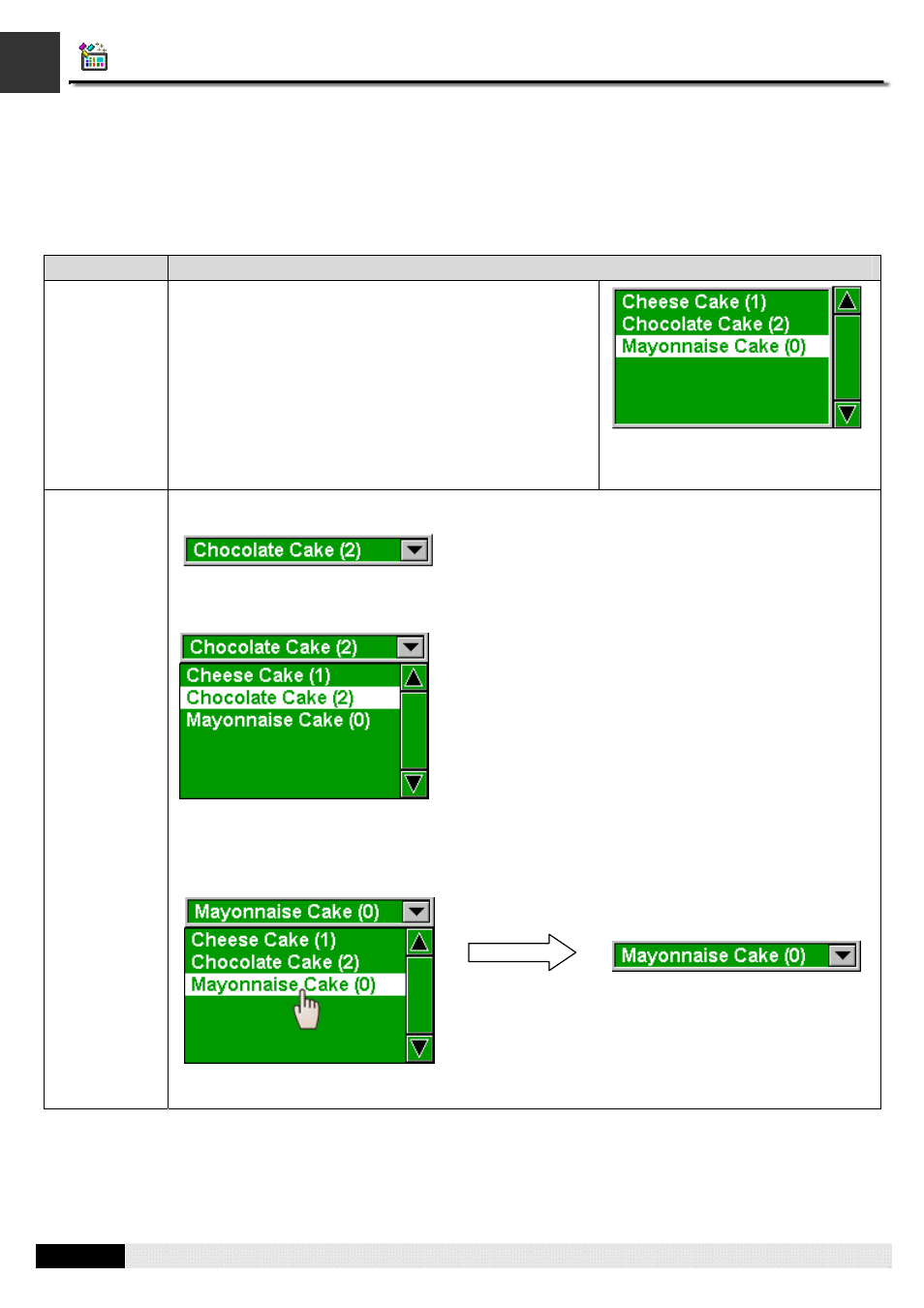

A recipe selector can be configured to perform as one of the following types of controls:
Type Description
List The recipe selector is a list box. It displays a list of index
strings of the recipes in the specified recipe block. The
index string’s format is recipe name(recipe number). One
recipe index string per line.
The index string of the current recipe is highlighted. If the
desired recipe is not in the view, you can scroll the list by
the scroll bar attached to the right side of the list box. When
you select a desired recipe by touching its index string, the
recipe selector writes the recipe number of the selected
recipe to current recipe number register.
Drop-down
List The recipe selector is a drop-down list. It displays the index string of the current recipe and a button
with the down arrow symbol as shown in the following example.
When the button is touched, the recipe selector displays a list box beneath itself as shown in the
following example.
The list box lists the index strings of all recipes of the recipe block. One index string per line. The
index string of the current recipe is highlighted. If the desired recipe is not in the view, you can use
the scroll bar attached to the right side of the list to scroll the index string. When you select a desired
recipe by touching its index string, the recipe selector writes the recipe number of the selected recipe
to current recipe number register and closes the list box.
If you want to cancel the operation when the list box is showing, touch anywhere other than the index
string in the list box.
