8
PM Designer Operation Manual
8-24
8.4.5. Pen Settings

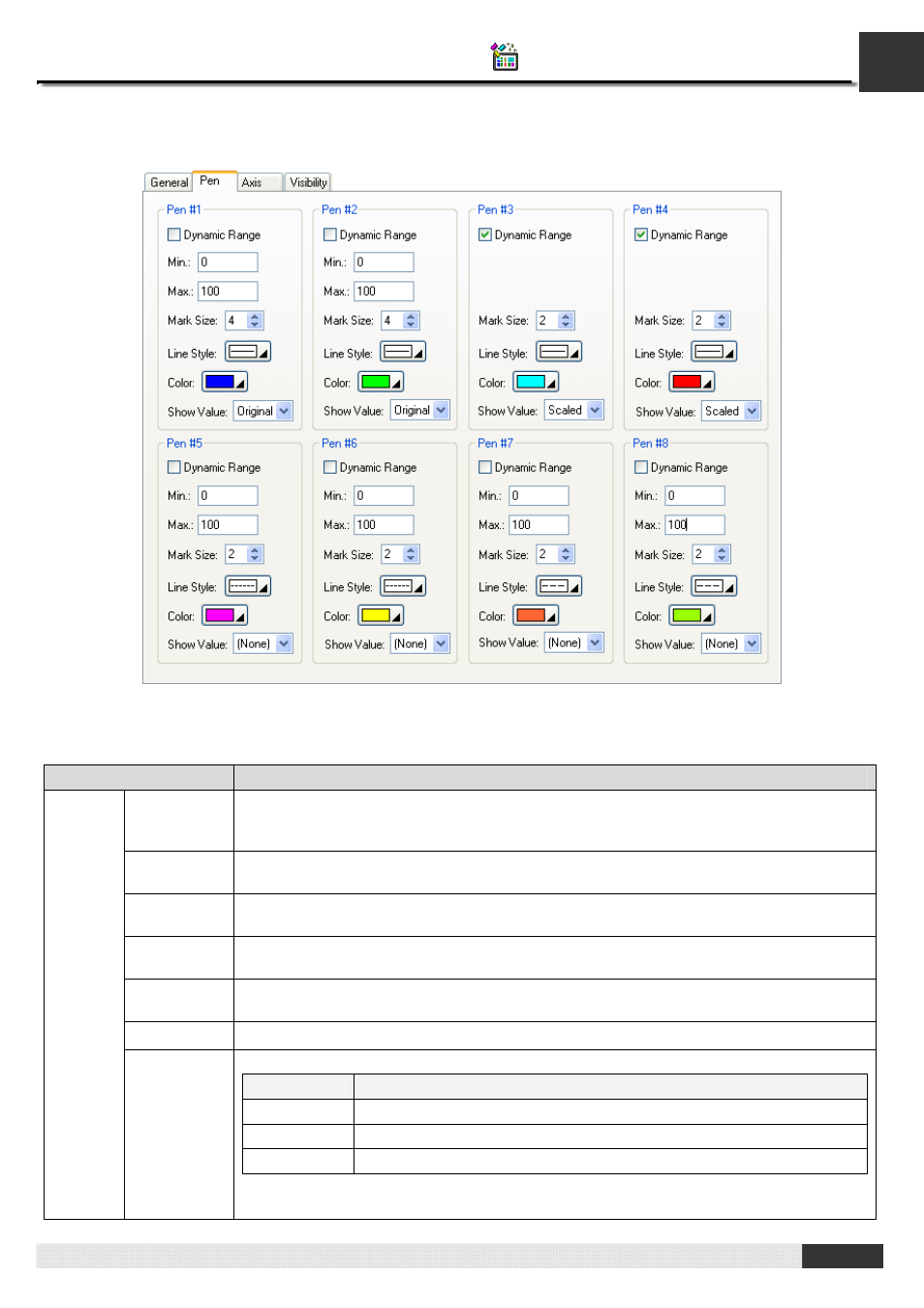

This section describes how to define the pens for the line charts. The following is an example of the Pen page.
The following table describes each property in the Pen page. Note that pen #1 is for data set 1; pen #2 is for data set 2;
and so on.
Property Description
Dynamic
Range Check this option so the minimum and the maximum of the associated data set will be
specified at runtime. This option is available when the Dynamic Range option in the
General page is selected.
Min. The minimum of the associated data set. This property is available when the Dynamic
Range option is not selected.
Max. The maximum of the associated data set. This property is available when the Dynamic
Range option is not selected.
Mark Size Select a size for the data point mark. The selection is valid when the Show Mark option in
the General page is selected.
Line Style Select a style for the connecting lines. The selection is valid when the Show Line option in
the General page is selected.
Color Select a color for the connecting lines.
Pen #1
~ Pen
#8
Show Value Select one of the following methods for displaying the selected data point value.
Show Value Description
(None) Does not display the data point value.
Original Displays the data point value without modification.
Scaled Displays the corresponding Y axis value of the data point.
The selection is valid when the Show Cursor option in the General page is selected.
CHAPTER 8 GRAPHS AND CHARTS
