PM Designer Operation Manual
12-15
CHAPTER 12 DATA COLLECTION AND HISTORIC DISPLAYS
12.3.5. Curve Settings

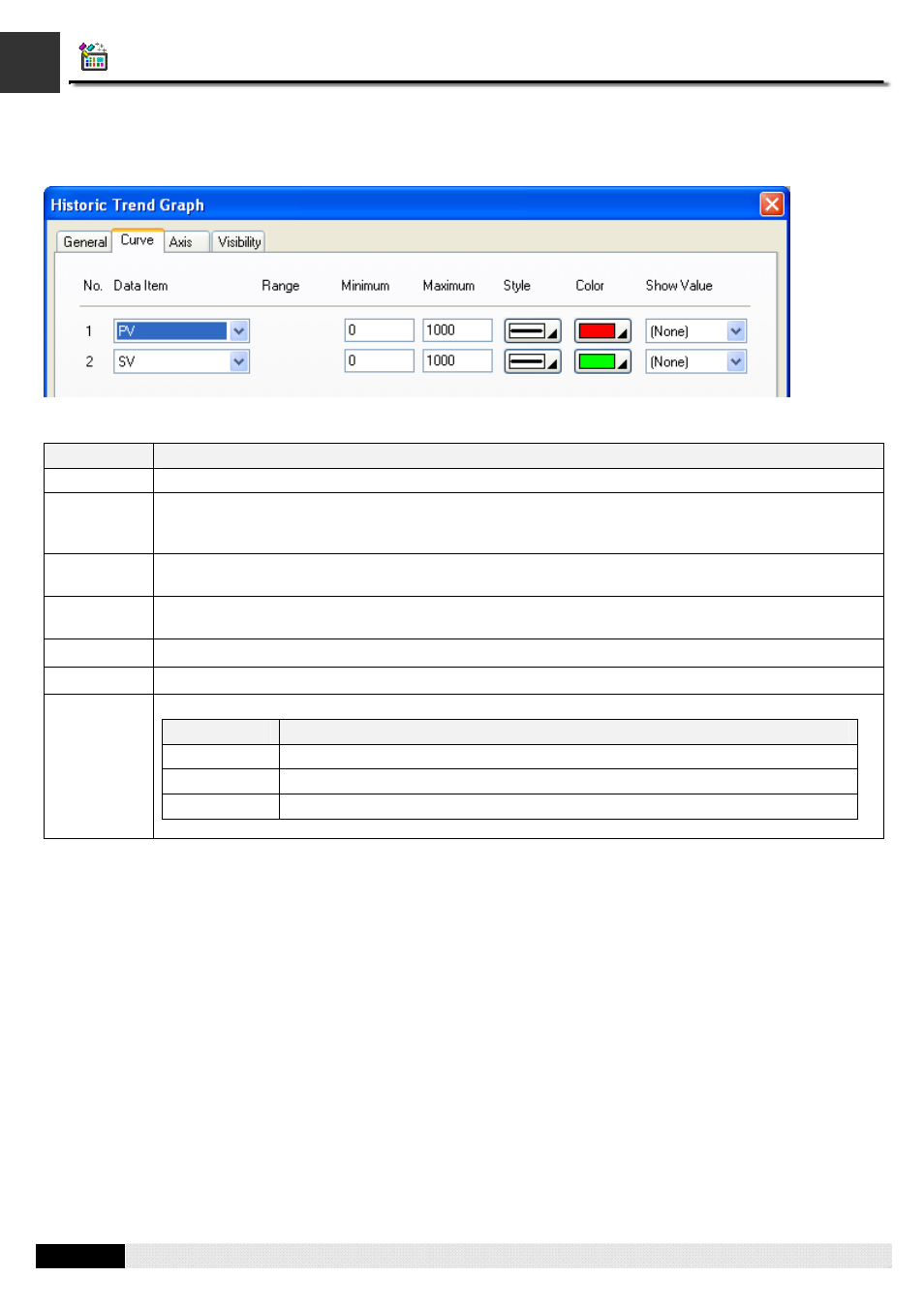

This section describes how to define the pens for the historic trend graph. The following is an example of the Pen page.
The following table describes each property in the Curve page.
Property Description
Data Item Select a data item in the associated data logger for the curve.
Range Check this option so the minimum and the maximum for the Y values of the associated curve will be
specified at runtime. This option is available only when the Dynamic Range option in the General page
is checked.
Minimum The Y minimum of the data value of the associated curve. This property is available when the Dynamic
Range option is not selected.
Maximum The Y maximum of the data value of the associated curve. This property is available when the Dynamic
Range option is not selected.
Style Select a style for the trending curve.
Color Select a color for the trending curve.
Show Value Select one of the following methods for displaying the selected data point value.
Show Value Description
(None) Does not display the data point value.
Original Displays the data point value without modification.
Scaled Displays the corresponding Y axis value of the data point.
