PM Designer Operation Manual
8-17
8.4. Line Charts
8.4.1. Basic Operations

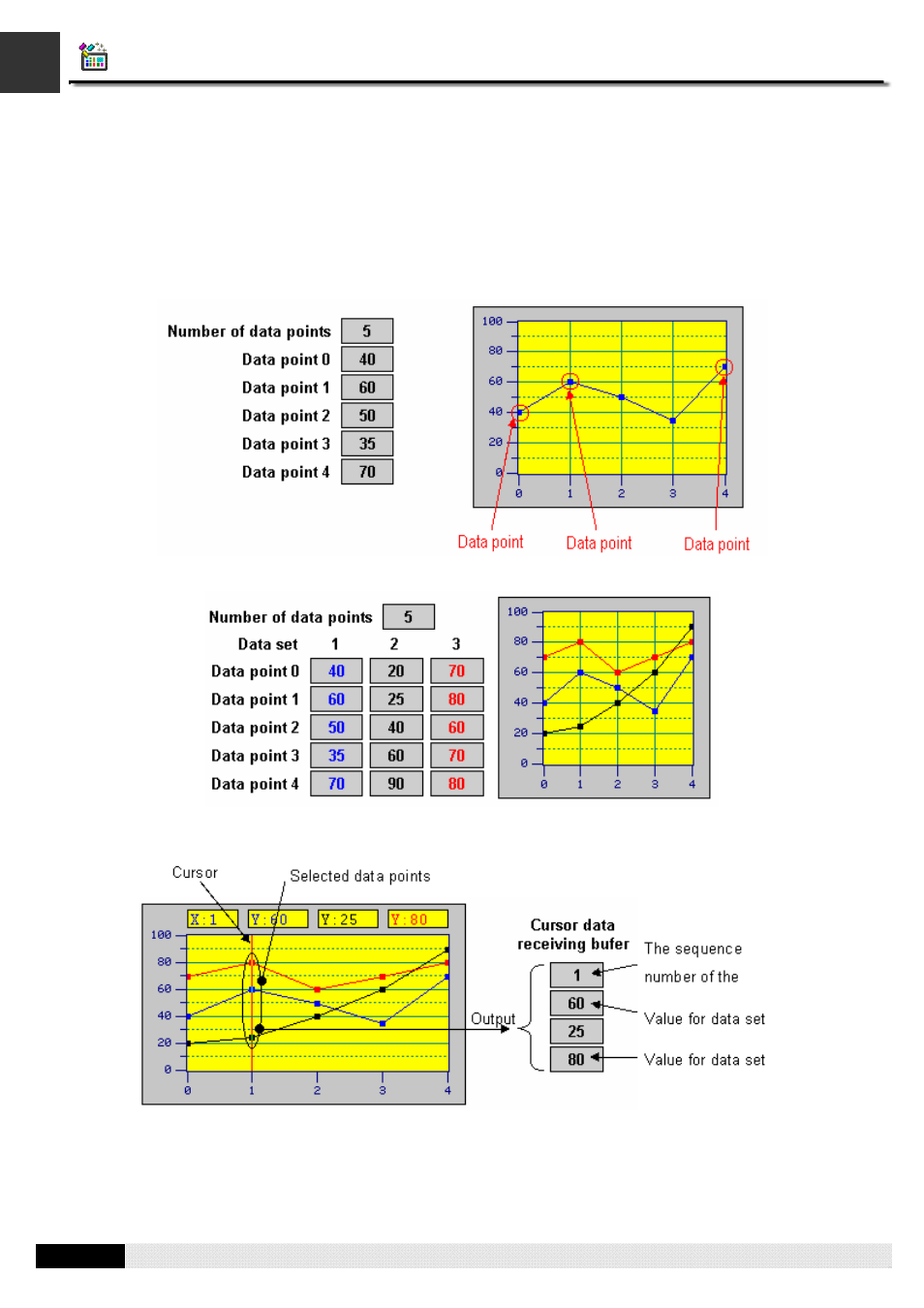

A line chart displays a set of data by drawing a data point for each datum and drawing a line that connects all the data
points in sequence. The vertical position of a data point is determined by the value of the associated datum. The horizontal
position of a data point is determined by the order of the associated datum in the data set.
A line chart can display up to 8 sets of data. The following example shows a line chart that displays 3 sets of data.
A line chart can provide a cursor for you to select desired data points. The values of the selected data points can be
displayed and output to an internal variable.
CHAPTER 8 GRAPHS AND CHARTS
