PM Designer Operation Manual
4-53
CHAPTER 4 DESIGNING SCREENS

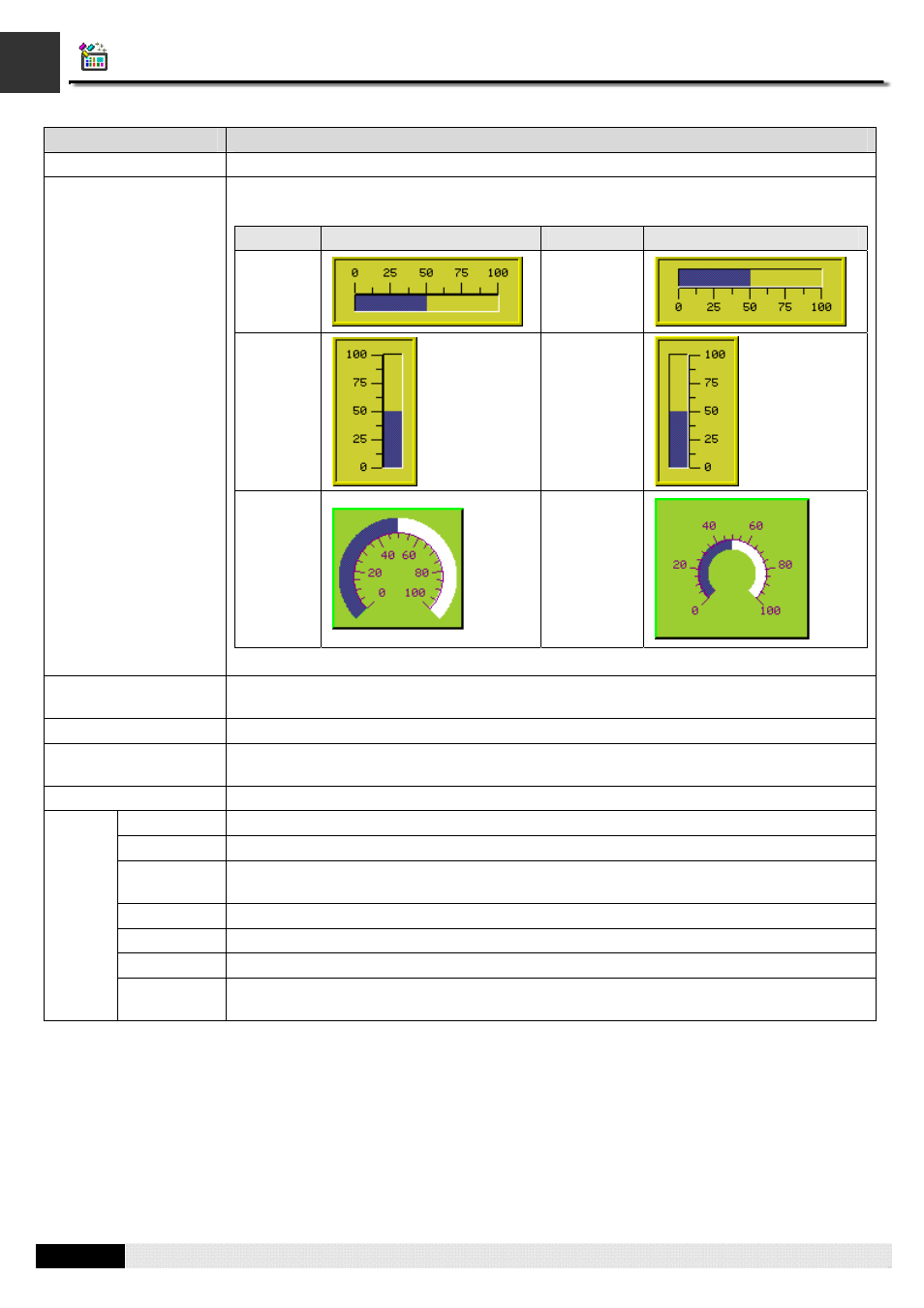

The following table describes each property in the Scale page.
Property Description
Scale Check this item if you want the object to have a scale.
Position Specifies the position of the scale in the object. The position is relative to the part of the
object that displays the monitored variable. There are six positions shown below:
Position Example Position Example
Top Bottom
Left Right
Inner Outer
Color The color of the scale. To specify the color, click the corresponding Color icon and select a
color from the Color palette.
Number of Major Ticks The number of major ticks. The minimum you can specify is two.
Number of Sub
Divisions The number of divisions between two adjacent major ticks. The minimum you can specify is
one.
Axis Check this item if you want the scale to have an axis.
Marks Check this option if you want the scale to have marks.
Font The font of the marks.
Dynamic
Range Check this option if you want the minimum and maximum of the marks to be controlled by
the dynamic range parameter block of the associated object at runtime.
Minimum The minimum of the marks. It is a 32-bit integer.
Maximum The maximum of the marks. It is a 32-bit integer.
Total Digits The total digits to be displayed for the marks.
Marks
Fractional
Digits The number of fractional digits for the marks. For example, when the Maximum is 5000, the
Total Digits is 4, and the Fractional Digits is 2, the mark for the Maximum will be 50.00.
