PM Designer Operation Manual
4-25
CHAPTER 4 DESIGNING SCREENS
4.1.12. Drawing Scales
1. In the Draw menu or Draw toolbar, click Scale .
2. Move the cursor onto the screen where you want to draw a scale. A scale with default settings will display and
move along with the cursor.
3. Click the desired position on the screen to place the scale. The upper-left corner of the bounding box of the scale
will be at the clicked position.

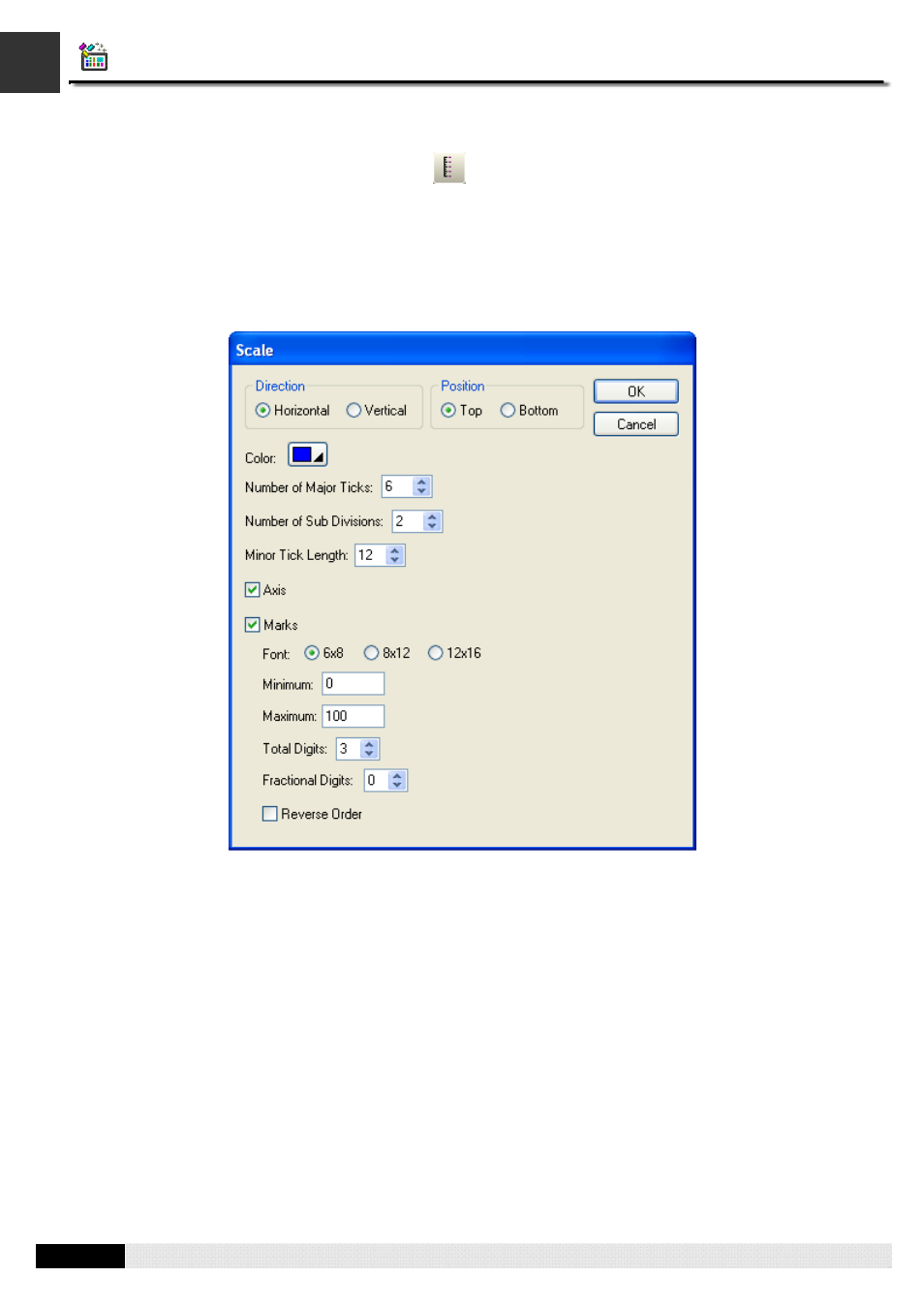

4. Double-click the scale to bring up the Scale dialog box and then define the settings for the scale. The following is
an example of the Scale dialog box.
